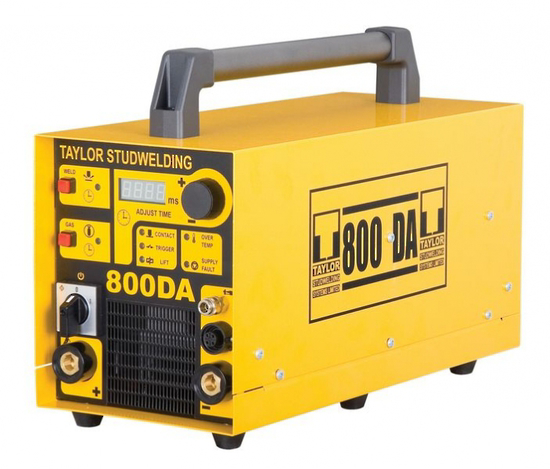

Taylor DA800 12mm Drawn-Arc Stud Welder

Taylor DA800 12mm Drawn-Arc Stud Welder

A Compact manouverable Drawn Arc welder that welds up to 12mm reduced base studs. With its simple robust construction the 800DA offers an economical and reliable method of fixing mild steel and stainless steel studs. Fast, accurate and easy to operate, the System 800DA gives you better weld results.

• Robust and compact design housing all components in one cabinet
• Lightweight and portable
• Soak tested components used. All systems undergo extensive durability tests
• Microprocessor controlled
• Constant weld current
• Infinitely adjustable welding time
• Solid state switching
• Visual time display
• Constant air cooling
• Recessed front and back panels protect controls and weld sockets
• Twist and lock plugs and sockets
• Hand tool can use any UK or European chuck system
• Gun lift test facility
• Chuck saver circuit fitted
• Fitted with gas facility
• Welds Short Cycle Drawn Arc
• Designed and built to exacting standards and meeting all required standards, CE & C-TICK approved
• With DA7 Hand Tool and Earth Leads

DA7 FEATURES

• Material: BAH Delrin
• Welding range: 3 - 12mm
• Stud length: Standard legs 50mm
• Stud length: Extended legs 170mm
• Cable length: 4m
• Cable size: 35mm
• Weight (less cable): 1.3kg
• Dimensions (LxWxH): 196 x 66 x 150 mm
• Designed for lightness and balance
• Comfortable to use, minimises operator fatigue
• Made from impact resistant, high strength BAH Delrin
• Various accessories/attachments are available to solve specific problems
• Extensions are available for both handtool and earth cables
• Possible to weld up to12mm standard Drawn Arc Studs
