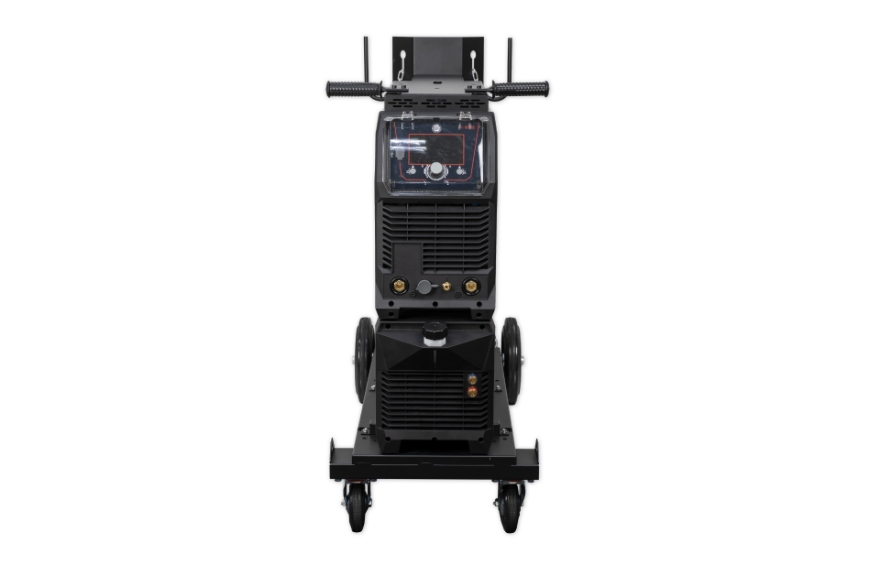

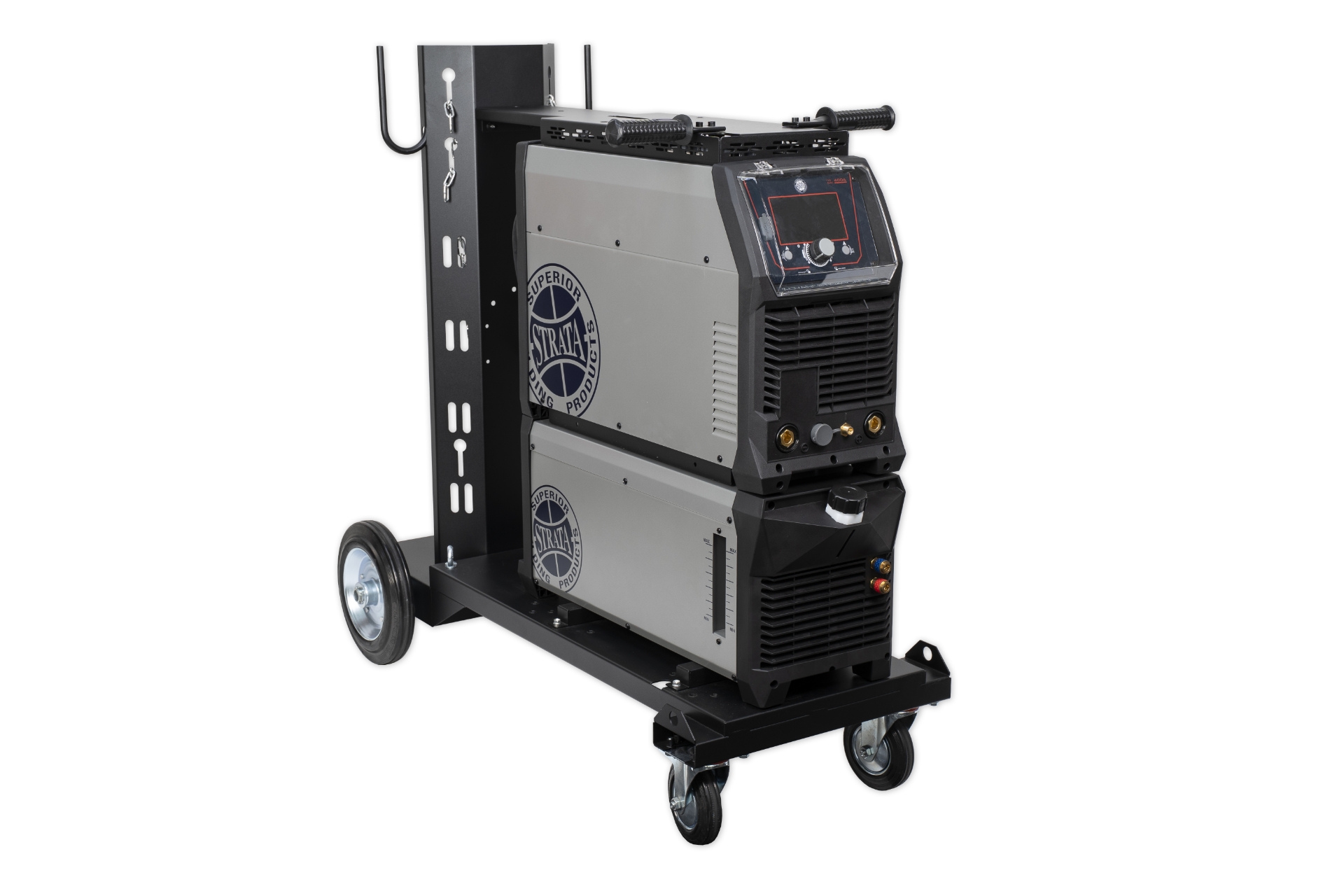

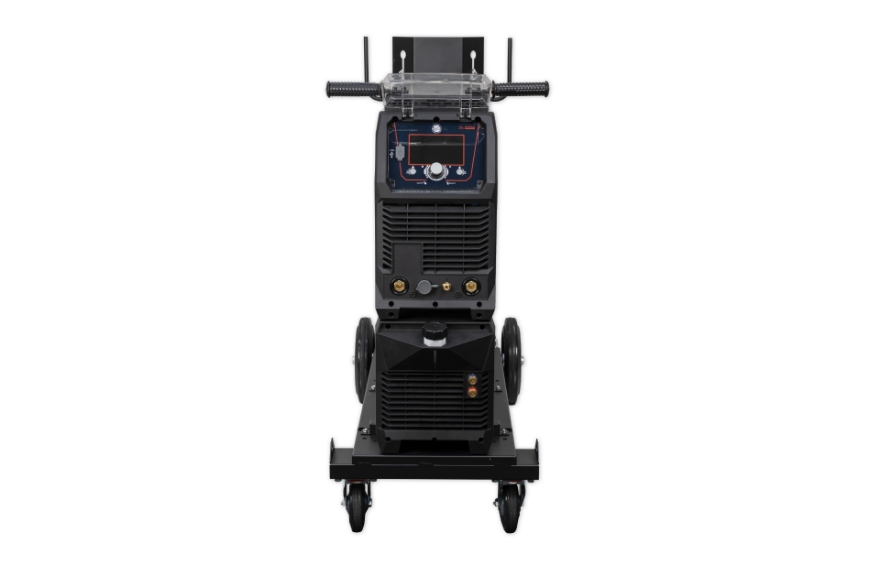

Strata AdvanceTig400ACDC 400A Three Phase TIG/ARC Water Cooled Trolley Package

Strata AdvanceTig400ACDC 400A Three Phase TIG/ARC Water Cooled Trolley Package

Meet the ultimate welding solution: the AdvanceTig400ACDC. With a formidable 400A output and three-phase power, this machine is designed for high-demand environments. Its Synergic control system and full-color LCD make setting adjustments simple and precise, while the integrated heavy-duty trolley option offers mobility in the workshop. Perfect for those who demand reliability, versatility, and performance at the highest levels.

Key Features

• Max Output (Tig/Arc) - 400A
• Max Electrode Size - 4.0mm
• Input Power Supply - 400V Three Phase 32A
• IGBT Module Inverter Technology - Smooth & stable output, increased reliability, high duty cycle
• Full-Colour LCD Control Screen - Intuitive and clear visibility and setting of control parameters
• TIG Smart Set Synergic Mode - Easy setting of welding parameters according to material, thickness and joint type
• Active PFC Technology - Increased duty cycle and energy efficiency. Can be safely used with long extension lead
• 20 Memory Settings - Ability to quickly save and recall control settings for specific jobs
• AC Sine, Square, Triangle & Mixed AC Wave Options - Ultimate control for every AC tig welding application
• AC/DC Mix & Enhanced Fusion Feature - Faster AC TIG welding speeds
• Modular integrated water cooler - Easy connection of water-cooled torch with low coolant torch protection function

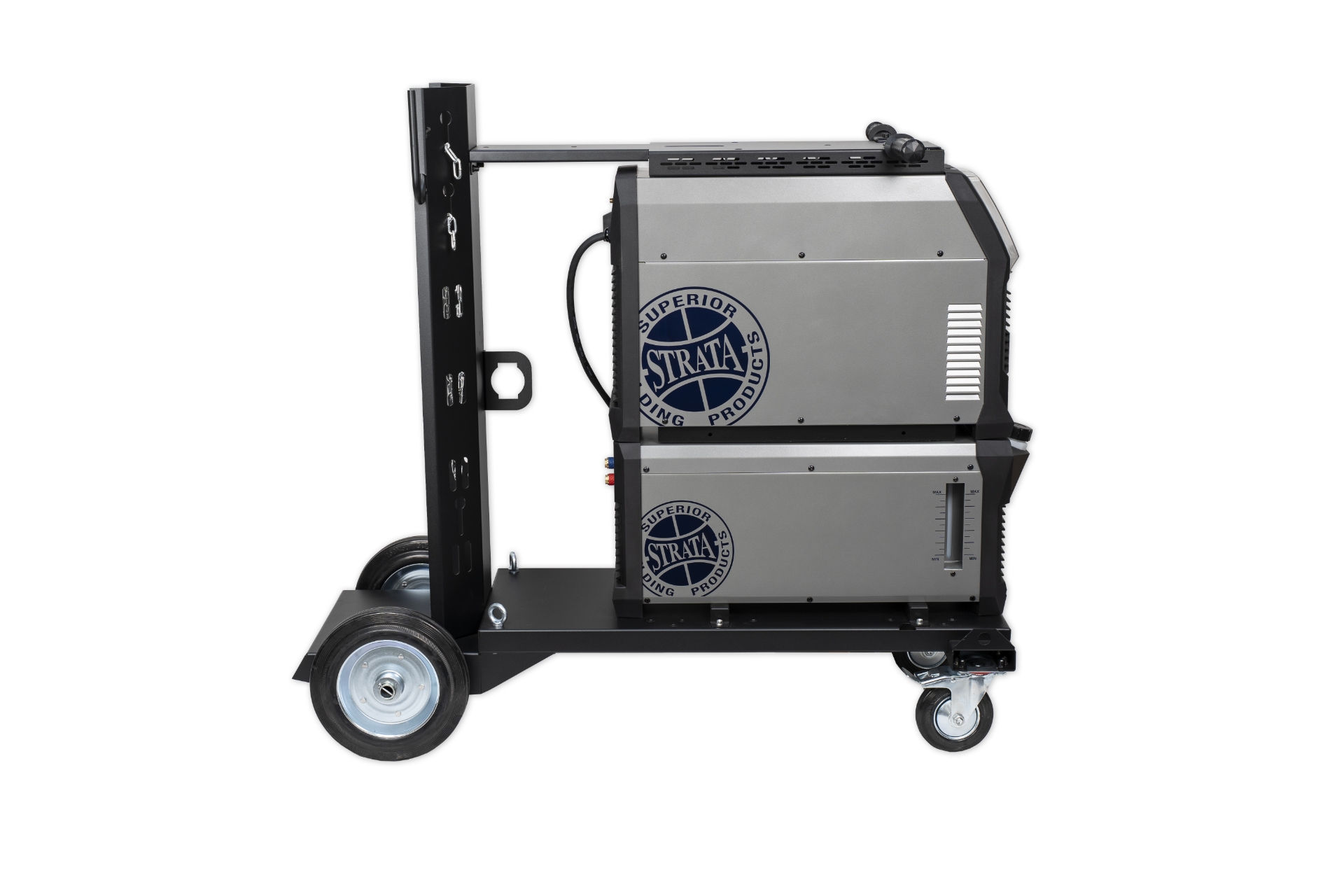

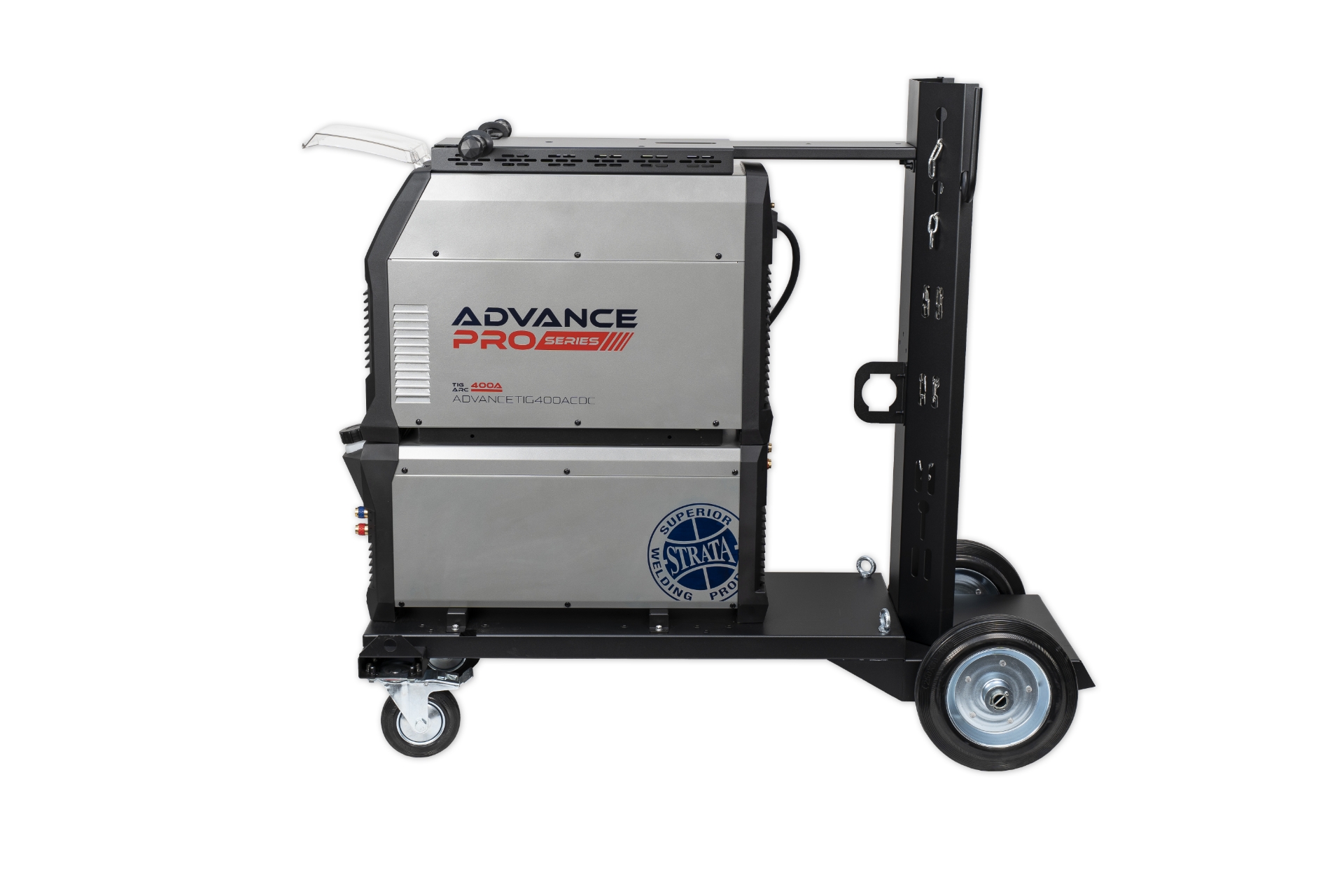

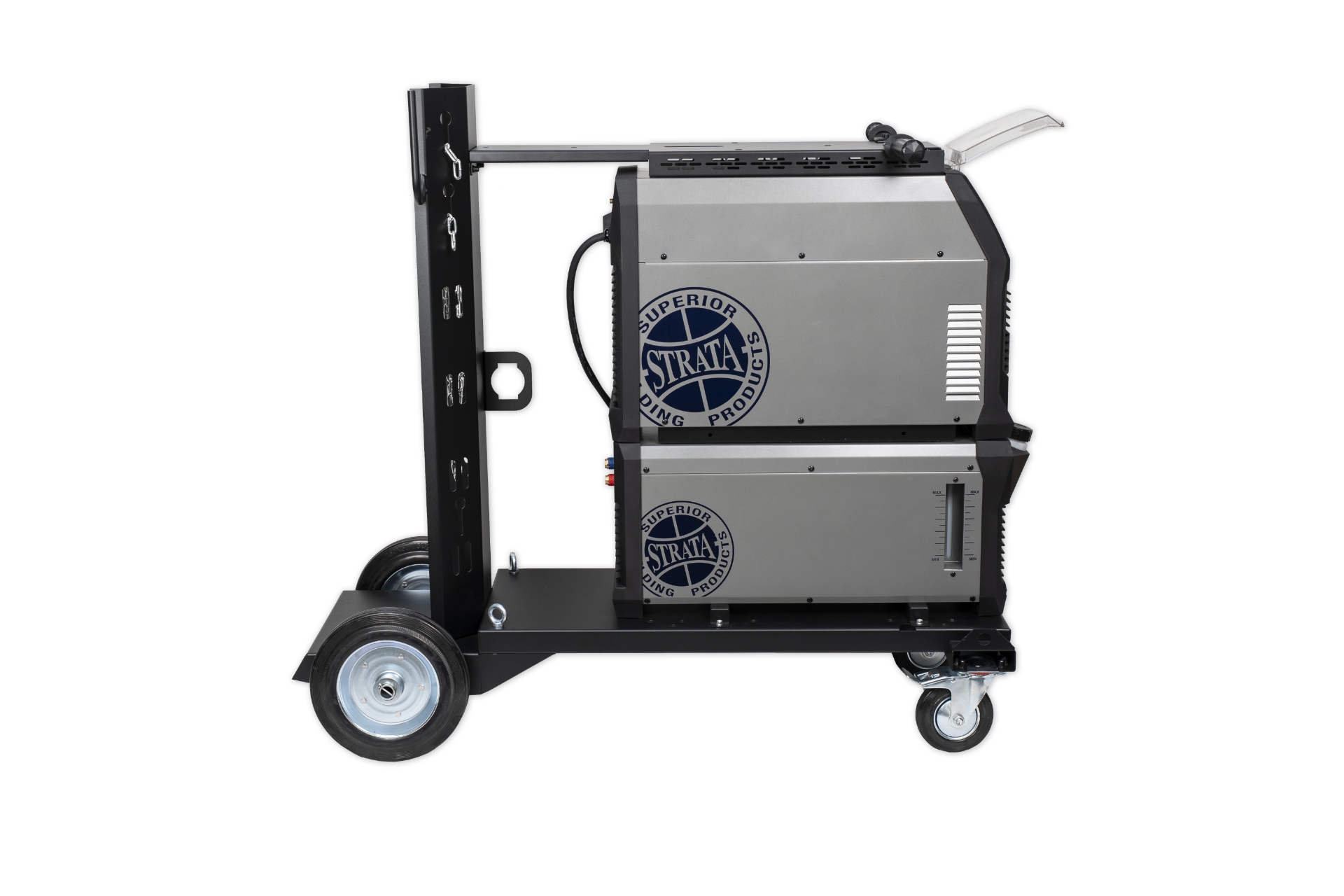

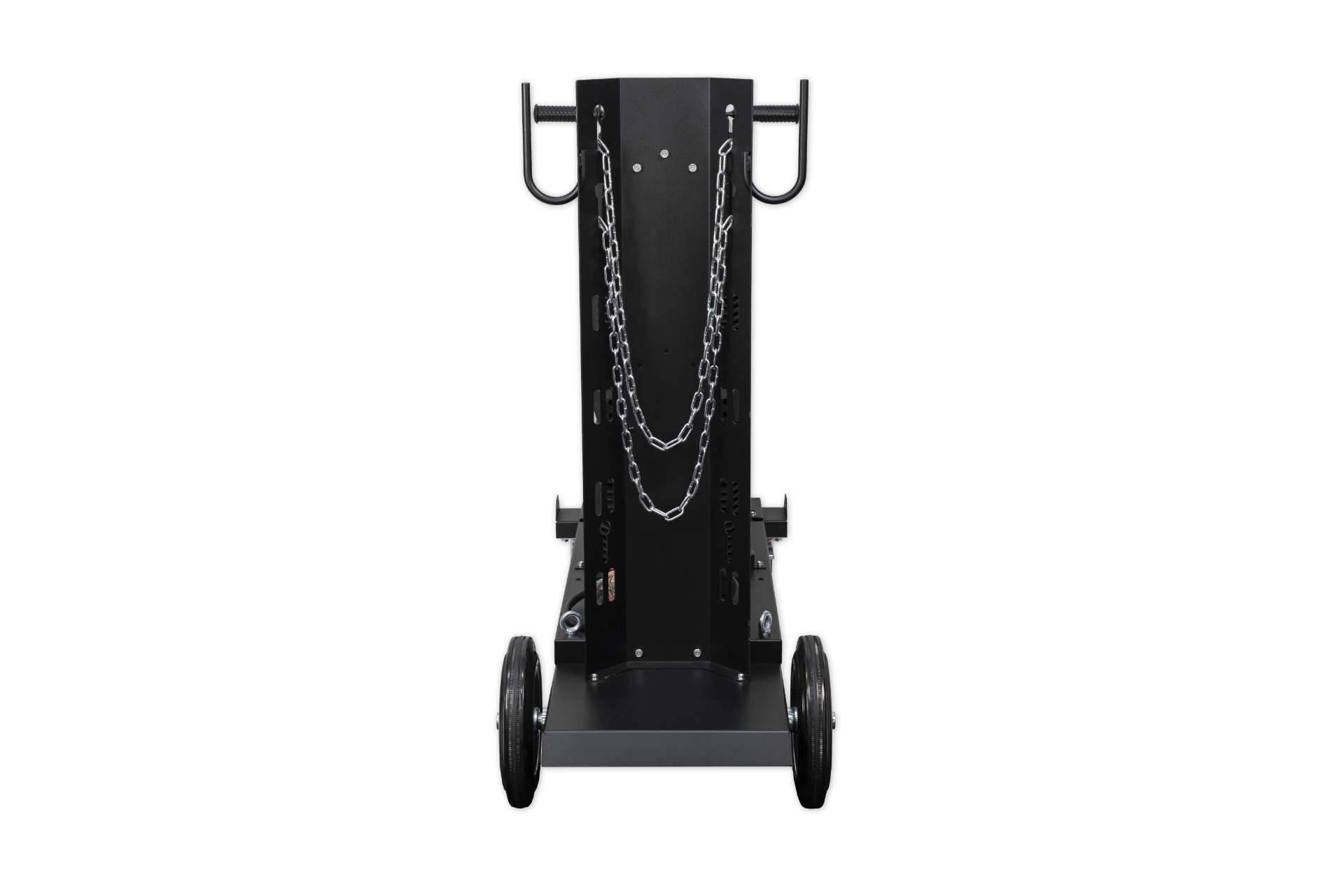

• Integrated Heavy Duty Industrial Trolley Option - Easy to move around the workshop environment
• Digital Microprocessor Control System - Accurate and reliable setting of control parameters
• Dual Lift TIG and HF Start Modes - Versatility for welding around sensitive electronic equipment
• 2T, 4T & Bi-Level Trigger Control Modes - Ease of operator use for all job applications
• Dual Mode Remote Control Option - Digital up/ down button or potentiometer thumb wheel torch remote control options through a single connection plug (optional add on)
• Wired & Wireless Foot Pedal Control Option (foot control optional extra)
• Electronic HF Tig Arc Ignition System - Contamination free and easy arc starting with low EMF interference
• Spot Welding Mode - Special feature for welding very thin material without heat distortion
• Industrial IP23 casing with front panel protection - Resistant to damage, moisture and corrosion
• Power Source Wind Tunnel Cooling Design - Protection against environmental contamination
• MMA Adjustable Arc Force, Hot Start & Automatic Anti Stick Control - Greater control and ease of use for MMA welding.
• Intelligent Machine Protection System - Temperature, voltage and current sensors for increased reliability & safety
• Phase Loss Protection - Machine automatically shuts down if power supply phase loss occurs, to prevent damage.
• Production tested with 550V - Extreme stress testing in production for rugged reliability.
• Generator Friendly - Designed to work with generator power supply and protect from power surges.
• Smart cooling fan system - Reduces noise and intake of environmental contaminants into machine
• Quick connect inlet gas fitting - Tool-less easy connection of gas supply to machine
• Supplied with Water Cooler, Industrial Trolley, 5M Earth Lead, 5M Arc Lead, PRO18 Water Cooled Tig Torch 8m, 2-Stage Flowmeter Argon Gas Regulator, QC Gas Hose Kit 2m and 32A 400V 3 Phase Supply Plug
