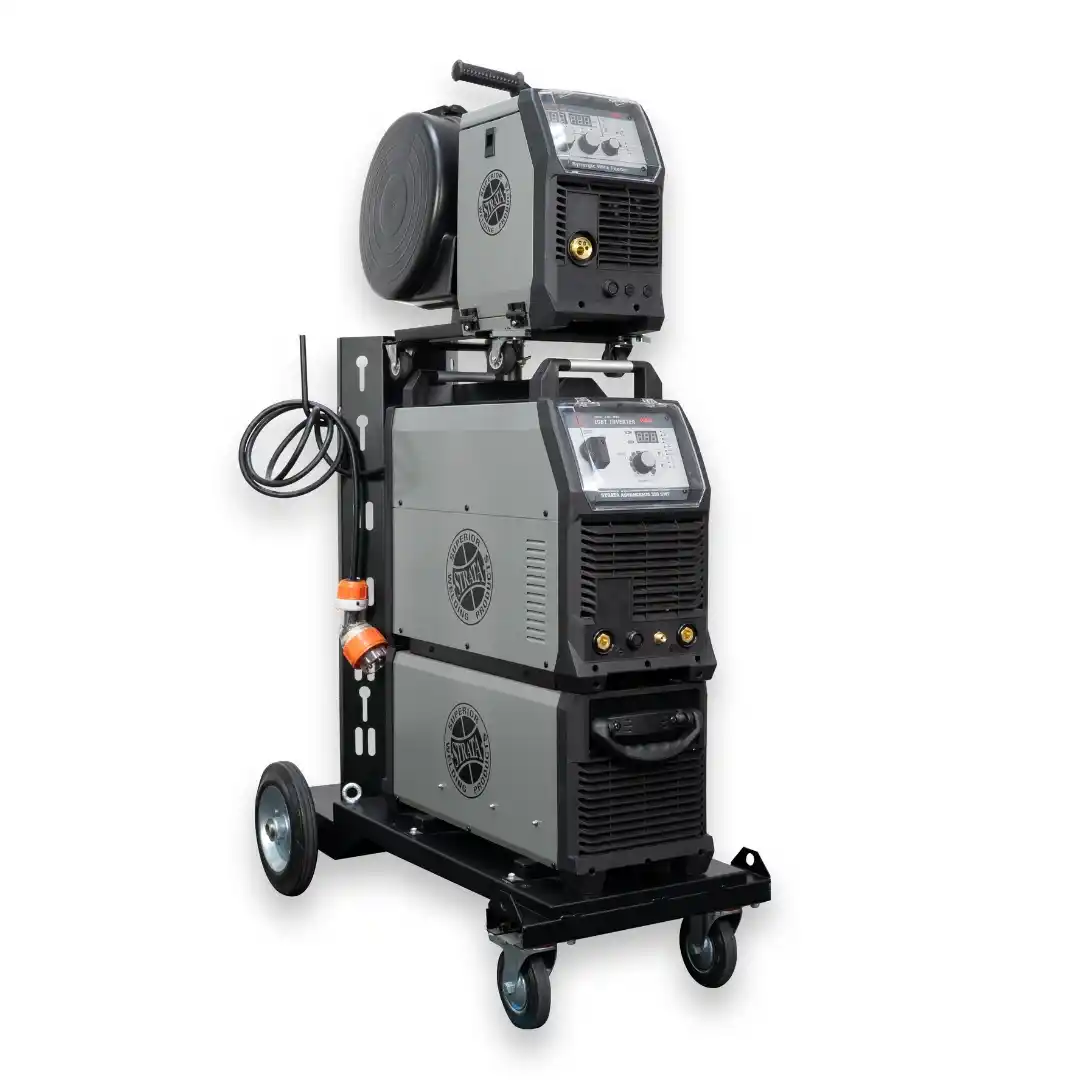

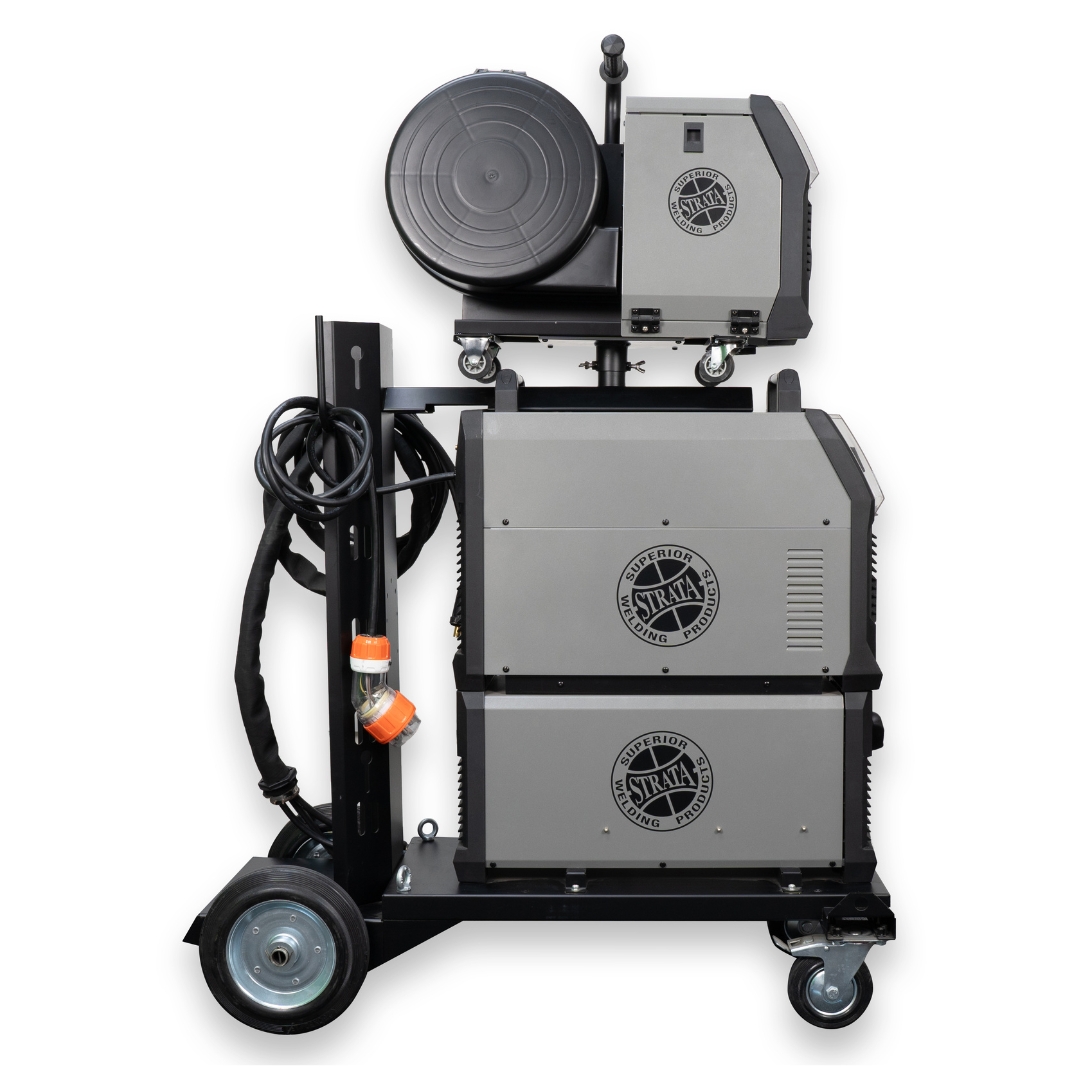

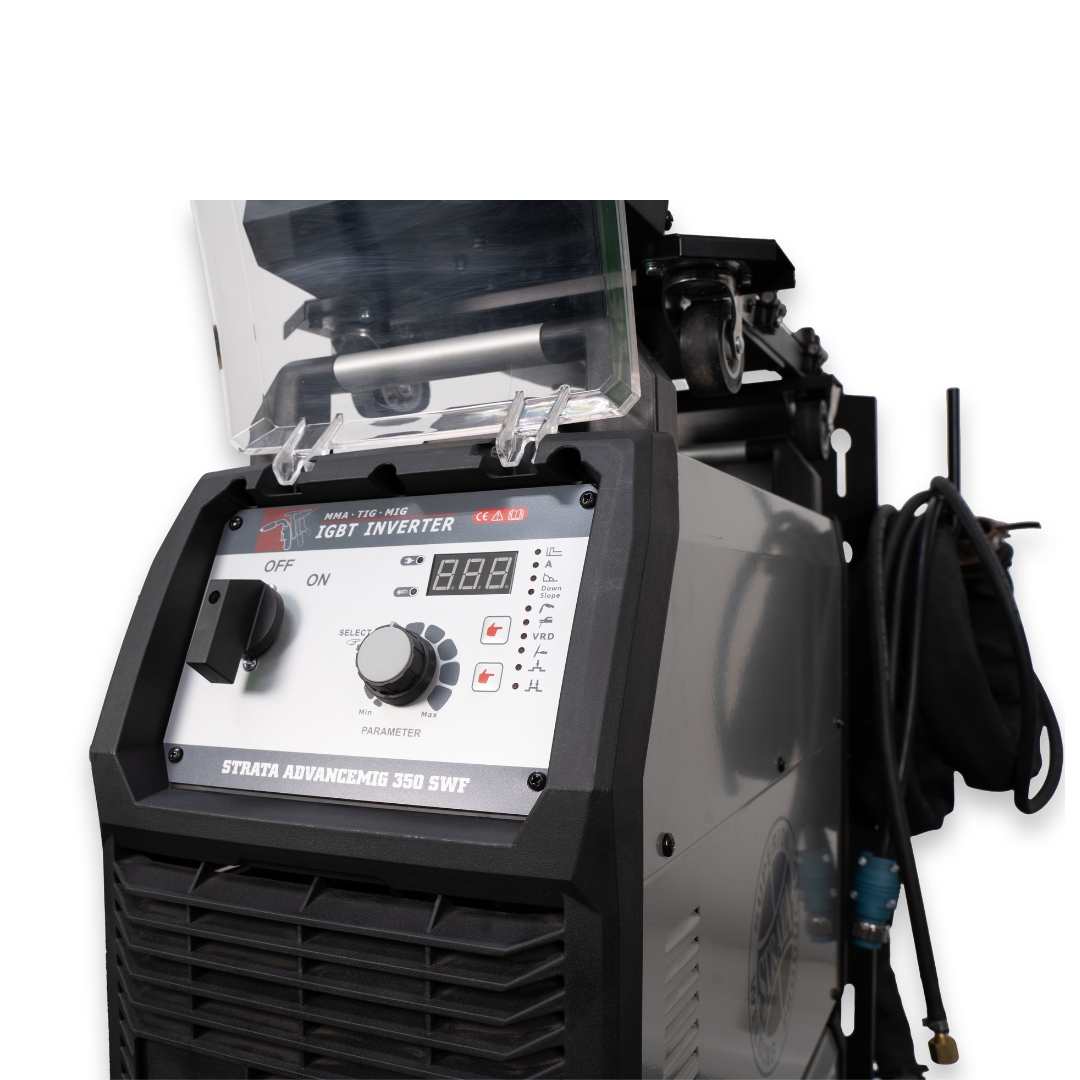

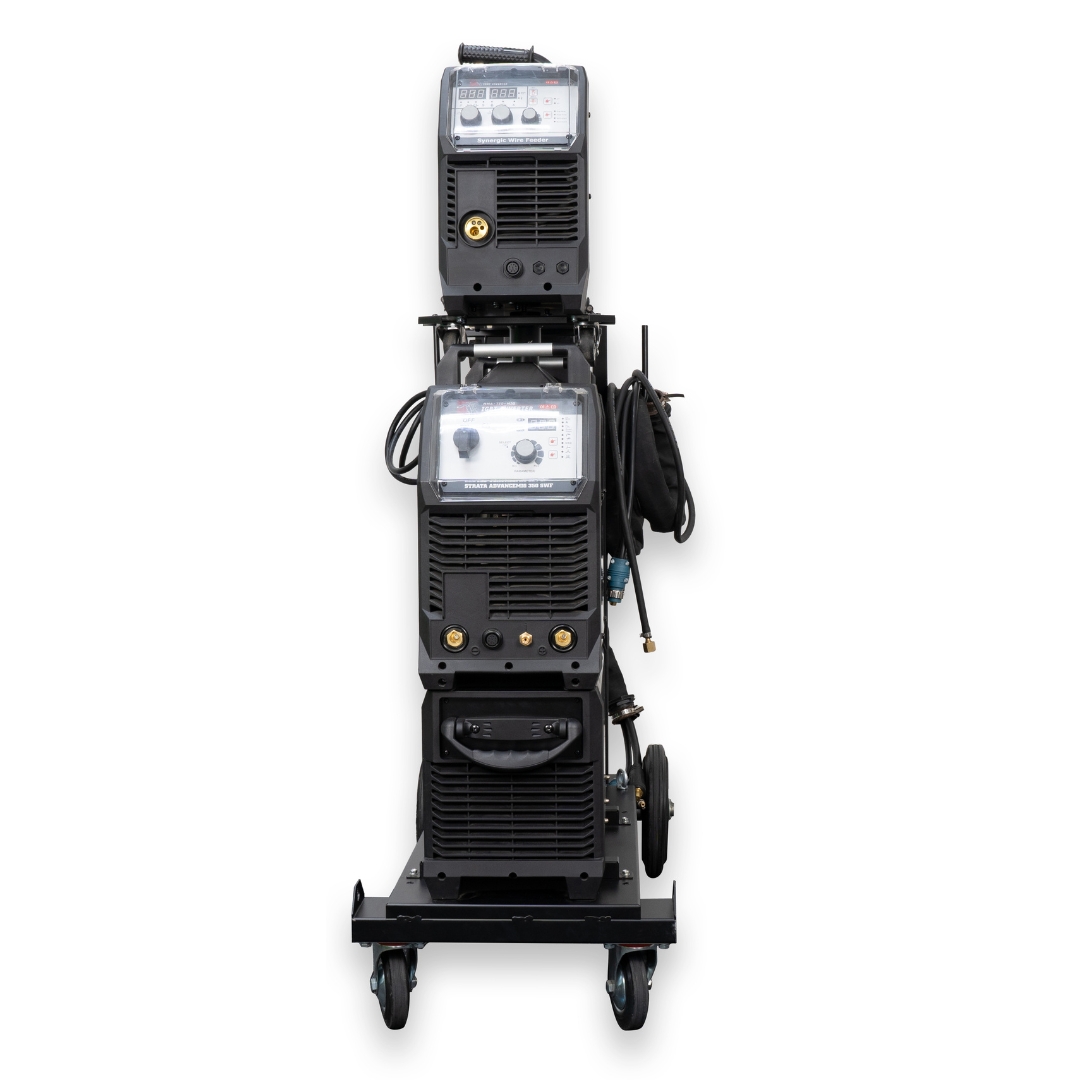

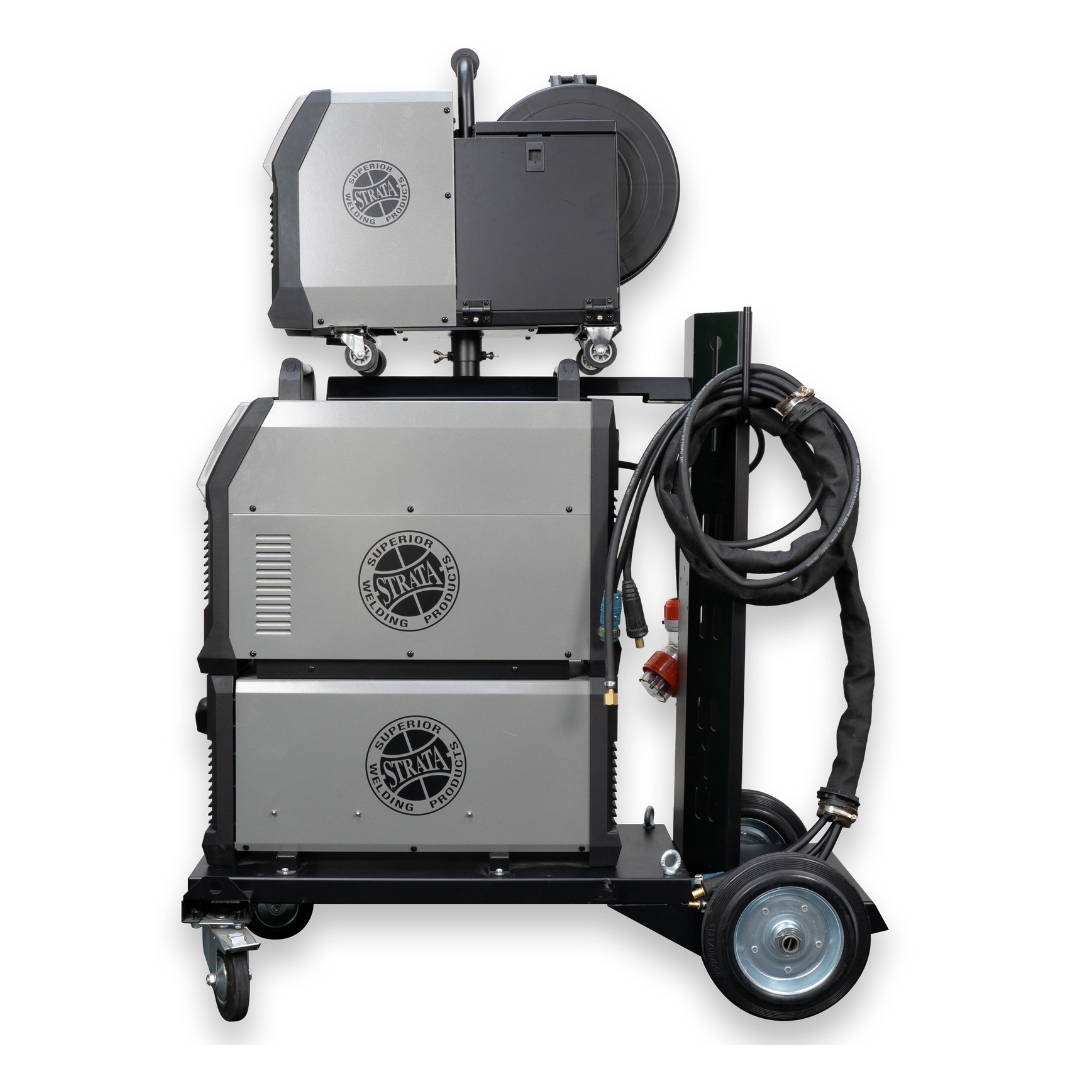

Strata AdvanceMig350 350A Synergic Inverter Welder Package

Strata AdvanceMig350 350A Synergic Inverter MIG/MMA/TIG Welder SWF C/W Heavy Duty Trolley, Storage Cabinet, Wire Feeder, Interconnect Cable, MB36 4M Mig Torch, Arc Lead Set & Gas Regulator.

SKU: 38138

Product Overview

Strata AdvanceMig350 350A Synergic Inverter Welder Package

State of the art synergies technology with full operational controls on the remote wire feeder make these models a breeze to operate. Rich in features including a 4 roll wire feeder and integrated protection systems mean these 3 phase machines are top of the class in performance, reliability and user satisfaction. Designed for rugged heavy work day in and day out.

Key Features

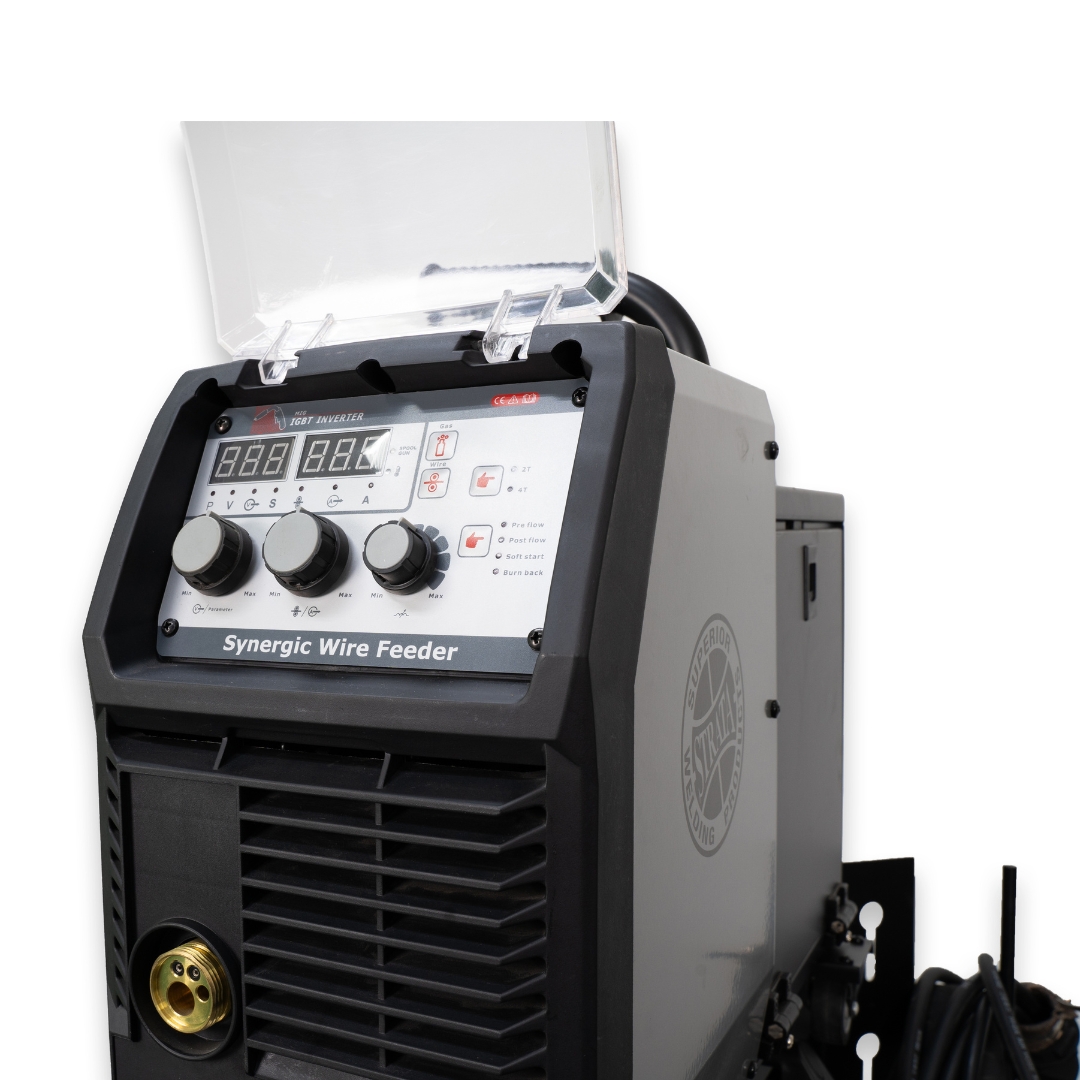

Intelligent digital wire feeder with all MIG controls and display located on wire feeder control panel
Digital microprocessor control system for superior & dynamic arc characteristics
Modular power source can be used individually for MMA, arc air gouging and lift TIG welding
Synergic mig operation for optimum welding results every time
Lift TIG operation with down slope and remote current control
MIG waveform (inductance) control for great arc control and smoother welding results
Damage resistant Industrial casing with front panel protection
Wire inching and gas purge control
Safe and simple set up and easy to use
Adjustable pre flow, post flow, burn back and soft start settings
2T/4T trigger operation with crater control settings
Adjustable arc force, hot start & automatic anti stick control
Dual digital display meters for accurate pre setting and feedback of welding parameters & output
Power source wind tunnel cooling construction
Protection against environmental contamination

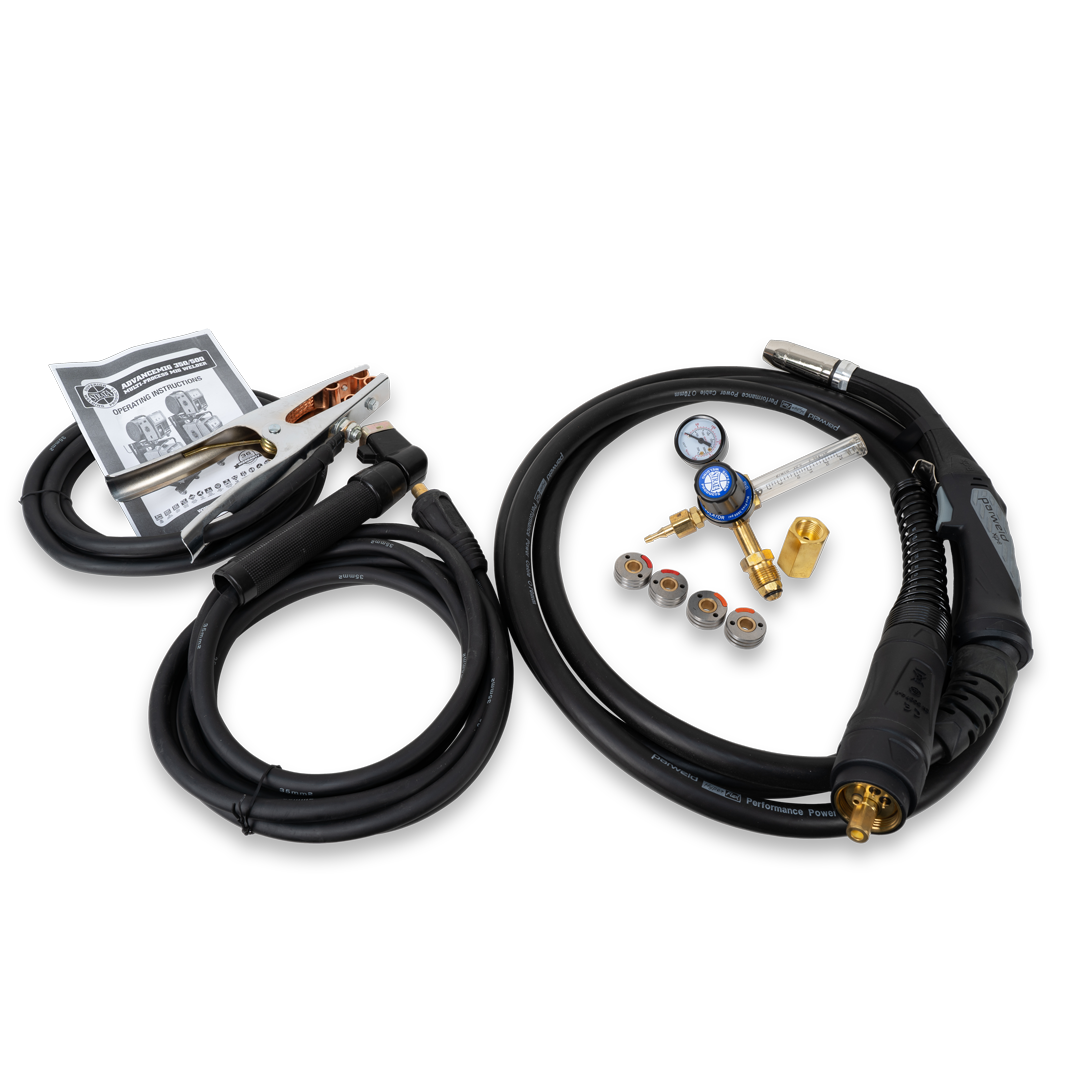

Package includes: Strata AdvanceMig350 350A Synergic Inverter MIG/MMA/TIG Welder, Heavy Duty Trolley, Storage Cabinet, Wire Feeder, 10M Interconnect Cable, MB36 4M Mig Torch, Arc Lead Set & Gas Regulator.

Technical Specifications

Specifications -

Power Source Dimensions	525x240x445mm	Weight	21kg
Wire Feeder Dimensions	600x290x480mm	Wire Feeder Weight	16kg

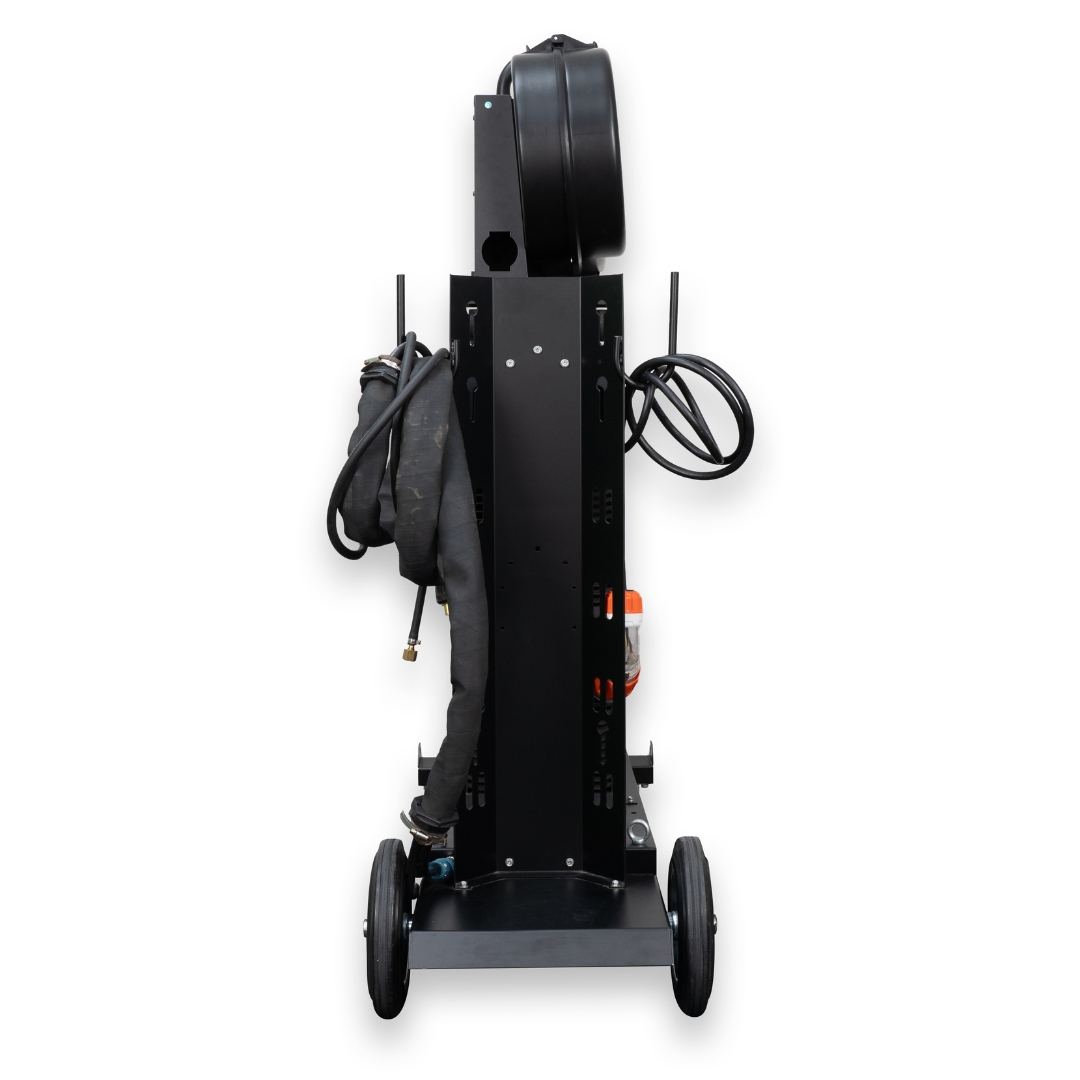

Trolley Dimensions	1050x440x1100mm	Trolley Weight	32kg
Storage Compartment Dimensions	620x240x290mm	Storage Compartment Weight	11kg
Complete Package Dimensions	1050x44x1450mm	Complete Package Weight	90kg
Input Power Supply	400V AC 3 Phase 32A 50/60Hz	Maximum Input Current	22A
Generator Capacity	15KVA	MIG Output Voltage	10V - 35V
MIG Output Current	40A - 350A	MIG Duty Cycle	350A@60%, 275A@100%
Wire Feeding Speed	2.4 - 18m/min	MMA Current Output	40A - 350A
MMA O/C Voltage	67V	TIG Duty Cycle	350A@60% 275A@100%
TIG Current Output	40A-350A	TIG System	Internal solenoid gas control, lift ignition
Insulation Class	IP23	Standards	EN60974-1:2012
MMA Rod Size	1.6-6.0mm	Warranty (Months)	48 Months
Power Efficiency	0.85	Power Factor	0.95
MIG Drive Rollers Available	0.6/0.8/0.9/1.0/1.2mm V Groove, Knurled 0.8/0.9/1.0/1.2mm, U Groove 0.8/1.0/1.2mm	Spool Size	D200/D300 5kg/15kg
