Strata

Strata Air Cooled 17388

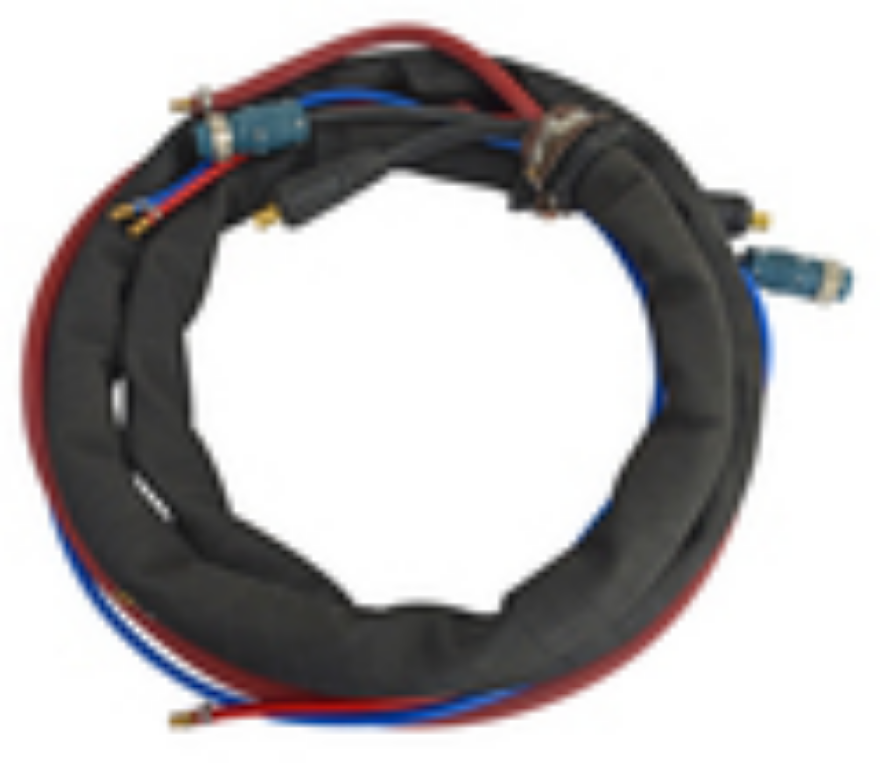

Strata 10m Air Cooled 350A Interconnect Lead Set

SKU: 17388

Product Overview

AdvanceMig350 state of the art synergies technology with full operational controls on the remote wire feeder make these models a breeze to operate. Rich in features including a 4 roll wire feeder and integrated protection systems mean these 3 phase machines are top of the class in performance, reliability and user satisfaction. Designed for a rugged heavy work day in and day out.

Intelligent digital wire feeder with all MIG controls and display located on wire feeder control panel
Digital microprocessor control system for superior & dynamic arc characteristics
Optional Integrated heavy-duty industrial trolley with storage compartment option
Optional extended 10m interconnect cable
The modular power source can be used individually for MMA, arc air gouging and lift TIG welding
Synergic MIG operation for optimum welding results every time
Lift TIG operation with downslope and remote current control
MIG waveform (inductance) control for great arc control and smoother welding results
Damage resistant Industrial casing with front panel protection
Wire inching and gas purge control
Safe and simple set up and easy to use
Adjustable pre flow, post flow, burn back and soft start settings
2T/4T trigger operation with crater control settings
Adjustable arc force, hot start & automatic anti stick control
Dual digital display meters for accurate pre setting and feedback of welding parameters & output
Power source wind tunnel cooling construction
Protection against environmental contamination.

Technical Specifications

Specifications -

Power Source Dimensions	525x240x445mm	Weight	21kg
Wire Feeder Dimensions	600x290x480mm	Wire Feeder Weight	16kg
Trolley Dimensions	1050x440x1100mm	Trolley Weight	32kg
Storage Compartment Dimensions	620x240x290mm	Storage Compartment Weight	11kg
Complete Package Dimensions	1050x44x1450mm	Complete Package Weight	90kg
Input Power Supply	400V AC 3 Phase 32A 50/60Hz	Input Power Supply Tolerance	#ERROR!
Maximum Input Current	22A	Generator Capacity	15KVA
MIG Output Voltage	10V - 35V	MIG Output Current	40A - 350A
MIG Duty Cycle	350A@60%, 275A@100%	Wire Feeding Speed	2.4 - 18m/min
MMA Current Output	40A - 350A	MMA O/C Voltage	67V
TIG Duty Cycle	350A@60% 275A@100%	TIG Current Output	40A-350A
TIG System	Internal solenoid gas control, lift ignition	Insulation Class	IP23
Standards	EN60974-1:2012	MMA Rod Size	1.6-6.0mm
Warranty (Months)	48 Months	Power Efficiency	0.85
Power Factor	0.95	MIG Drive Rollers Available	0.6/0.8/0.9/1.0/1.2mm V Groove, Knurled 0.8/0.9/1.0/1.2mm, U Groove 0.8/1.0/1.2mm
MIG Wire Spool Size	D200/D300 5KG/15KG
