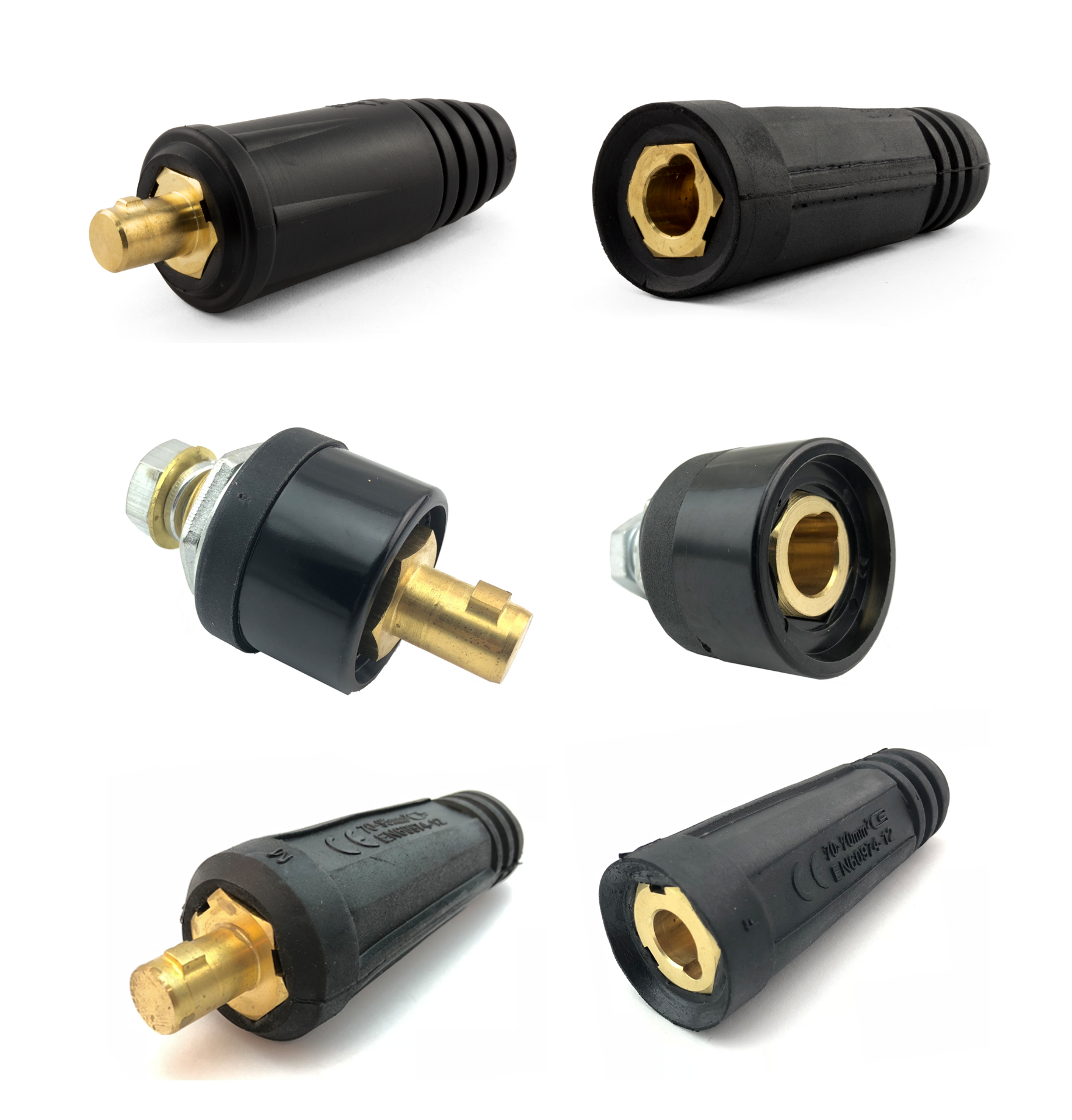

Strata Large Dinse Connectors

Strata Large Dinse Connectors

Key Features

• Twist-Lock type connectors
• Pin size of plug is 12.7mm (1/2")
• Suitable for up to 500 Amps

Purchasing Options

Product SKU	Product Name	Other Product Names	Useful Information

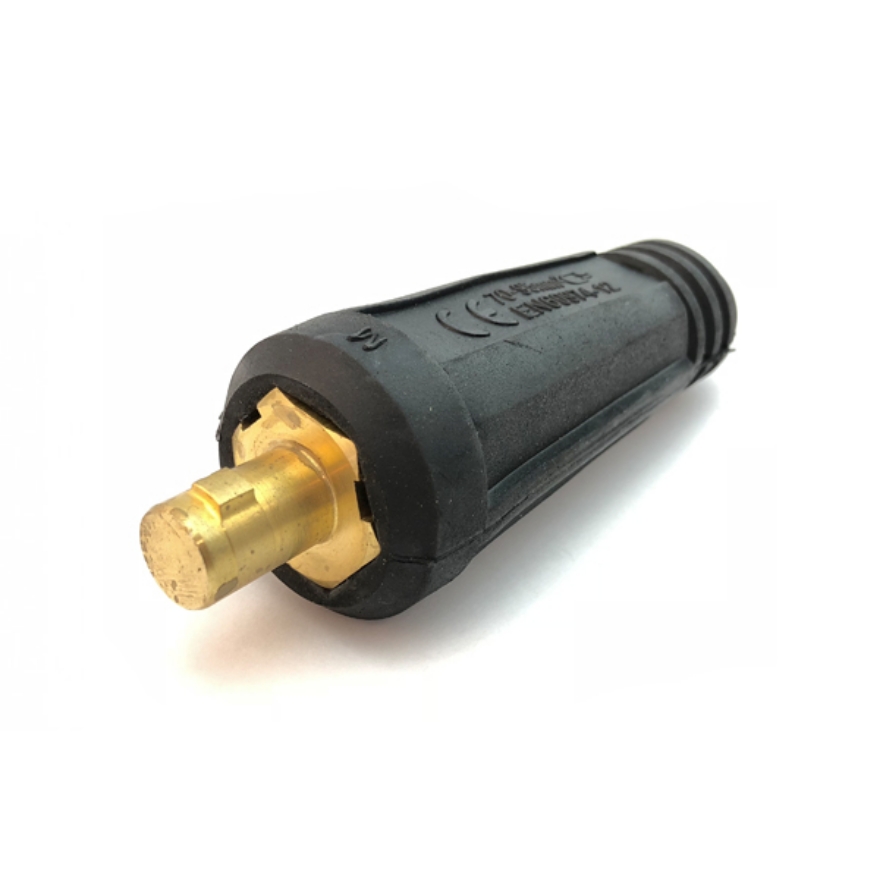

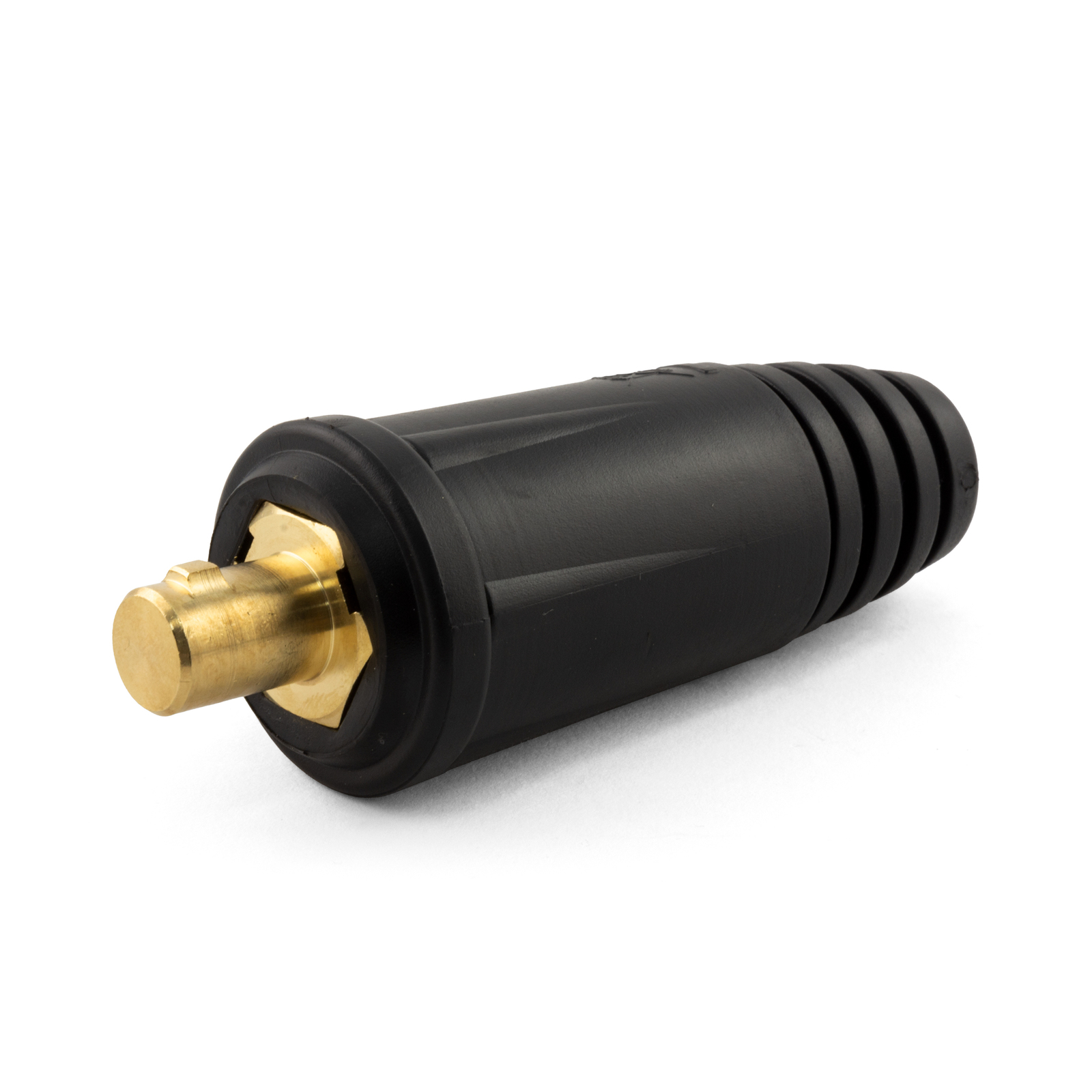

CP3550	CP3550 Cable Plug	Dinse Plug / Tex Plug	Best suited to 35-50mm² Cable*

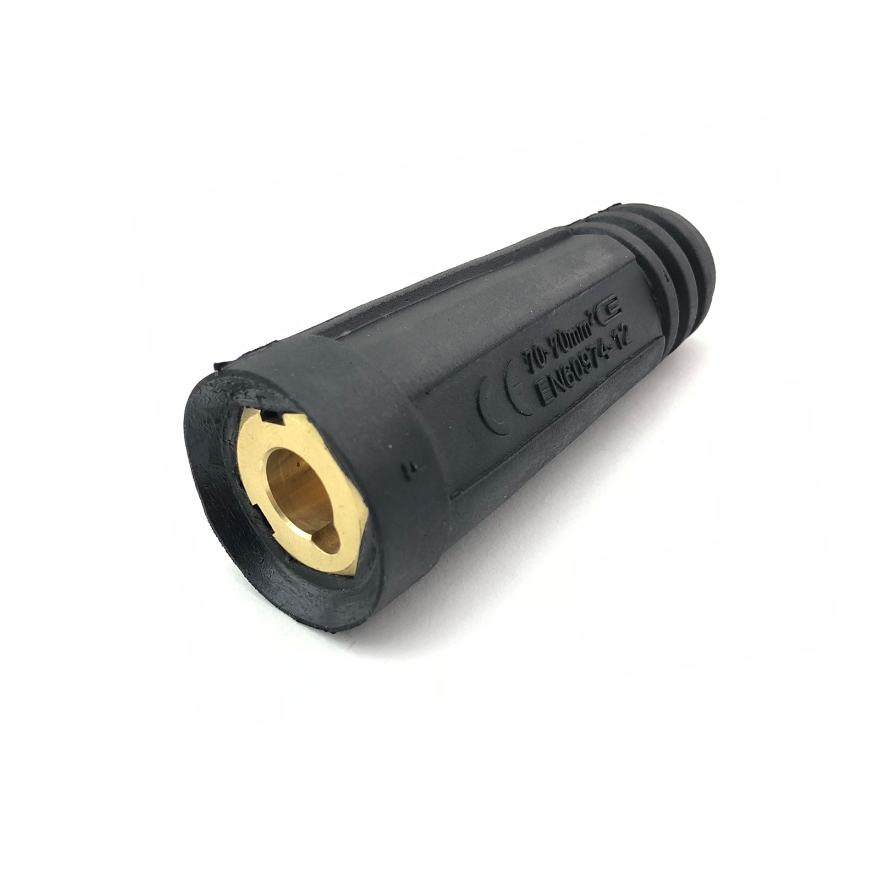

CS3550	CS3550 Cable Socket	Dinse Socket/ Tex Socket	Best suited to 35-50mm² Cable*

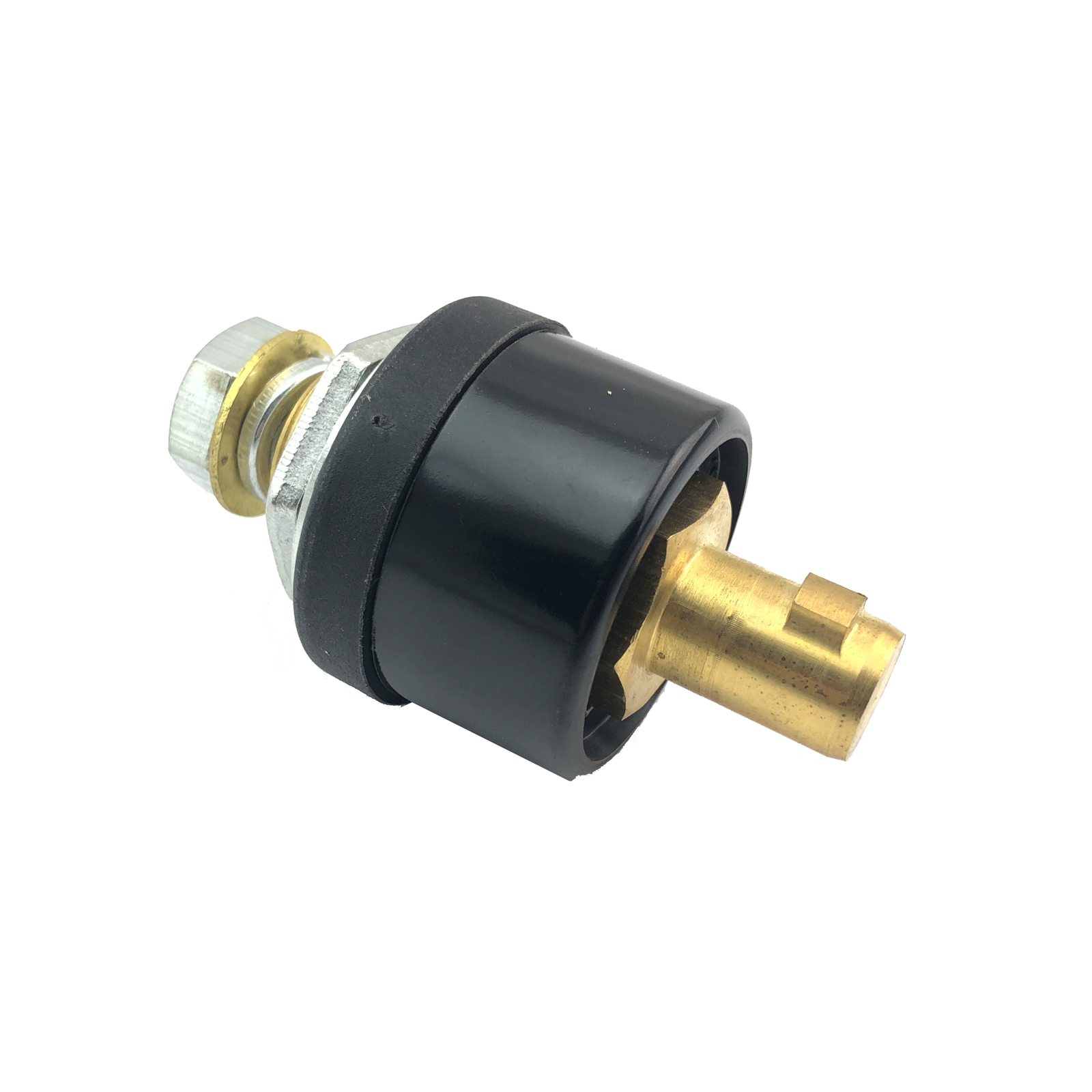

204840	PP3550 Panel Plug		M10 bolt at rear. 12.7mm pin plug at front
PW3550	PS3550 Panel Socket		M10 bolt at rear. 12.7mm socket at front
202024	CP7095 Cable Plug	Dinse Plug / Tex Plug	Best suited to 70-95mm² Cable*
202025	CS7095 Cable Socket	Dinse Socket/ Tex Socket	Best suited to 70-95mm² Cable*

*Smaller/Larger cables can be used. When using smaller cable, we recommend doubling over the conductor to ensure cable is secured adequately, ensuring excellent electrical conductivity.

Also known as:
Male: CP3550, CP5070, CP7095, PP3550, LE20801, LE20602, LE20601, 7090, 704461, 705155
Female: CS3550, CS5070, CS7095, PS3550, LE20602F, 704460, 705154
