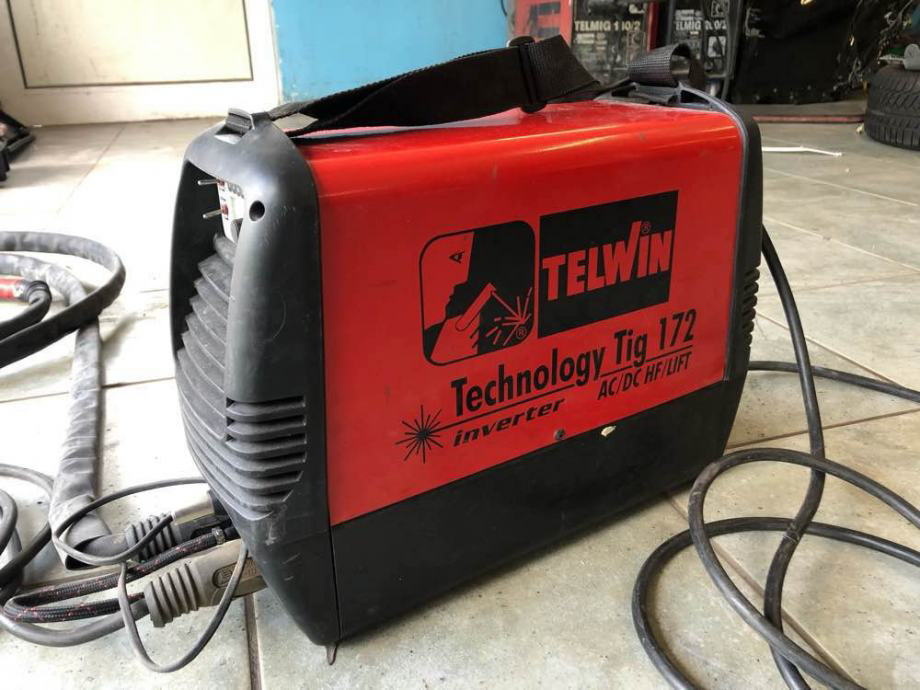

TELWIN TECHNOLOGY TIG 172 AC / DC HF / LIFT

Inverter welding rectifier for TIG welding with alternating current (AC) and direct current (DC) with non-contact or touch (LIFT) arc ignition and MMA method covered with direct current (DC).

Single phase supply.

Allows welding of aluminum, carbon and stainless steels, nickel, titanium, oxygen-free copper, bronze.

Overload protection.

Electronically controlled smooth welding current regulation.

Has functions that facilitate the welding process: ANTI STICK :
short circuit - automatically turns off the welding voltage if the electrode sticks to the welded material, which facilitates its detachment and prevents accidental welding arc
ARC FORCE: short circuit current regulation - makes it easier to transfer a drop of molten electrode to the welded material, preventing the arc from extinguishing when the electrode drop contacts the weld pool
HOT START: hot start - facilitates ignition of the electrode by providing a larger welding current each time the arc strikes.

For TIG welding: bi-level current regulation, shield gas off delay adjustment, current fall time adjustment, balance adjustment, anti stick.

Adjustment of all settings controlled by microprocessor.

2-step / 4-step function

Adjusting the welding dynamics with the MMA method allows you to control arc stability and the amount of spatter.

Maximum diameter of coated electrode 4.0.

Equipped with a digital meter (ammeter).

Possibility to connect a remote control or pulsating current control.

Fan cooled.

Over and undervoltage protection.

Memory of last 10 alarms.

High welding current stability despite mains voltage fluctuations.
