Strata WS1212 Workshop Series Cutting Table

Strata WS1212 Workshop Series Cutting Table

The Strata WS1212 CNC Cutting Table is a workshop-ready plasma cutting system built for fabrication shops, maintenance teams, and light industrial production environments. Designed to handle full sheets up to 1220 x 1220 mm, it delivers accurate and repeatable cutting performance without the need for material resizing. Featuring a rack and pinion drive system, integrated waterbed, and automatic torch height control, the WS1212 improves cut consistency while reducing heat distortion and setup time.

Key Features

Rack and Pinion Drive System
The precision rack and pinion drive system delivers smooth travel across the full cutting area, helping maintain ±0.2 mm movement accuracy for cleaner cuts and improved repeatability on larger fabrication jobs.

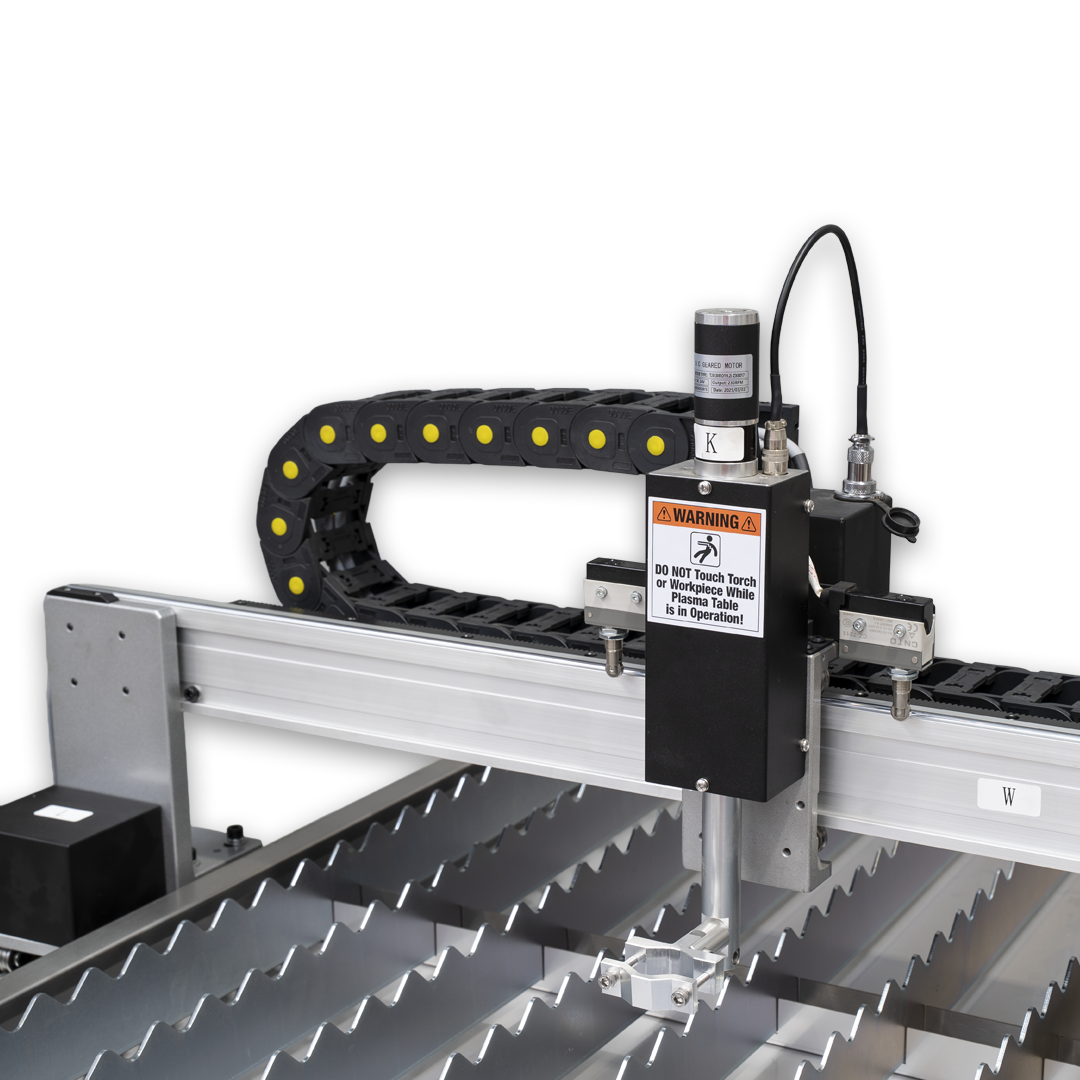

Automatic Torch Height Control (THC)
Integrated THC automatically adjusts torch height during operation to maintain cut quality across uneven surfaces and varying material thicknesses, reducing operator intervention and rework.

Large Format Cutting Capacity
Designed to process full sheets up to 1220 x 1220 mm, the WS1212 reduces prep time and material handling, making it ideal for workshops producing larger fabricated components.

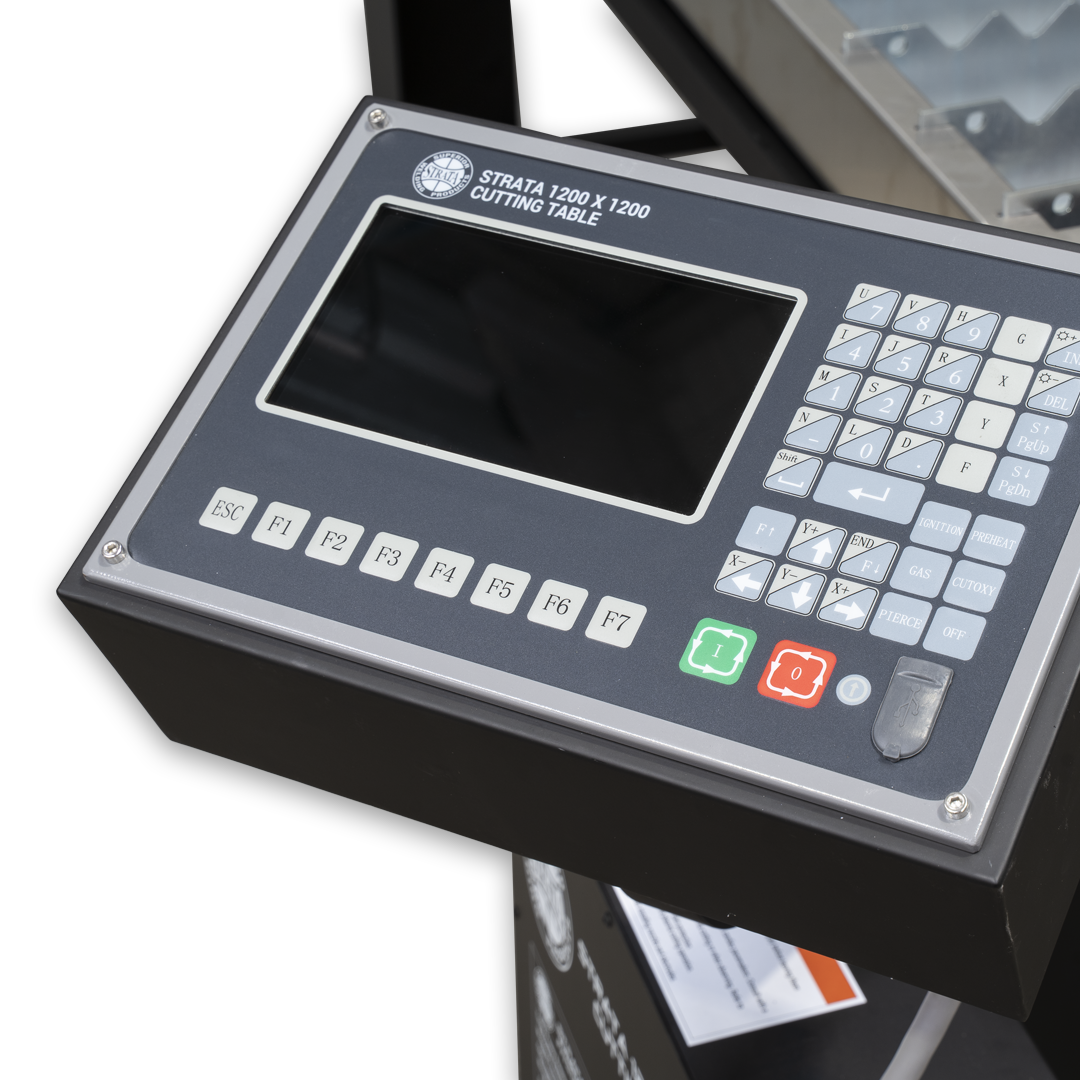

Stand-Alone CNC Controller
The integrated CNC controller with USB input allows operators to load and run cutting files directly at the machine without needing a connected laptop or external control system.

Integrated Waterbed System
The 125 L waterbed helps minimise heat distortion while controlling sparks and fumes during plasma cutting, supporting cleaner workshop operation and improved material stability.

Heavy-Duty Steel Construction
Built with a durable steel frame and locking castors, the WS1212 provides stable cutting performance while still allowing the machine to be repositioned when required in busy workshops.

Stepper Motor Drive Performance
The stepper motor drive system provides reliable motion control and consistent positioning accuracy, supporting repeat production work and detailed fabrication tasks.

Includes

• WS1212 CNC Cutting Table (flat pack)
• FLCam Software
• CNC controller with THC
• Stepper motor drive system
• Torch mounting hardware
• Integrated waterbed
• Assembly hardware
