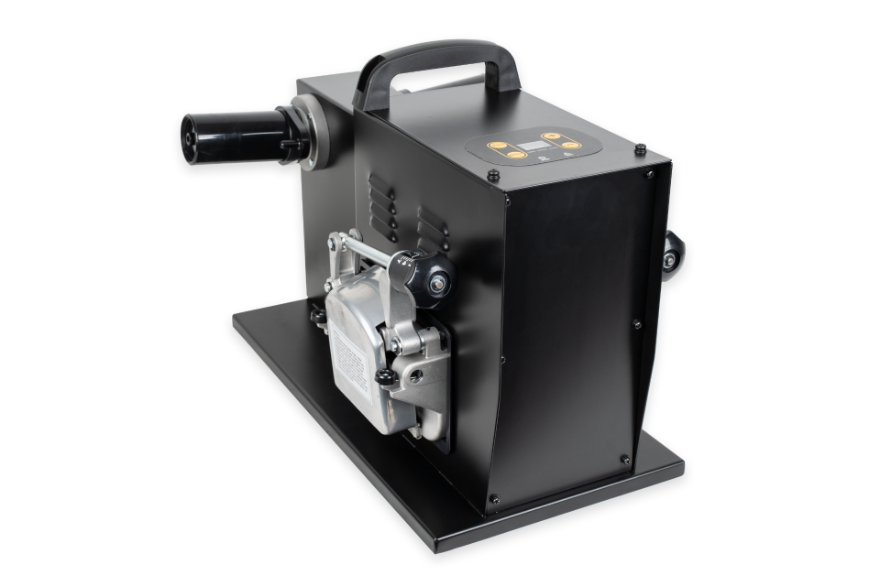

Strata Laser Welder Twin Wire Feeder

The Strata SLR-TWF Twin Wire Feeder is an advanced laser welding accessory designed to elevate the performance of the SLR3000 and SLR5000 series laser welders. Integrating next-generation laser technology with dual wire feed control, it enables two independently managed wires to be fed and melted into a single weld pool. This dual-feed configuration delivers faster travel speeds, increased deposition rates, and significantly better gap-bridging performance — ideal for demanding fabrication environments.

With the ability to bridge up to 3–4 mm gaps and operate at welding speeds exceeding 250 cm/min, the twin wire feeder provides consistent, high-strength welds with reduced distortion and minimal post-weld finishing. Whether you're working on thin-gauge automotive panels or heavy plate fabrication, this feeder supports a broad range of materials and thicknesses, enhancing productivity while preserving weld quality.

Key Features

• Dual Wire Feeding Technology
  Independently controlled twin wire feeders for flexible material combinations or quick wire swaps (e.g. stainless steel and aluminium).

• High Gap Bridging Capability
  Fills weld gaps up to 3–4 mm using dual 1.6 mm wires — ideal for poor fit-up scenarios.

• Exceptional Travel Speed
  Achieves 250+ cm/min on thin-gauge sheet metal, making it ideal for automotive and tank fabrication.

• Increased Deposition Rate
  Delivers 30–80% higher deposition compared to single-wire systems, boosting productivity with less heat input.

• Wider Weld Seam Coverage
  Supports multi-pass layering and broader seams for improved weld strength and coverage.

• Performance Across Thicknesses
  Suitable for both light sheet work and structural plate welding.

• Reduced Distortion & Heat Input
  Lower energy per wire minimises warping, inter-pass temperatures, and distortion.

• Fast Material Changeovers
  Quickly switch between wire types or materials to minimise downtime and increase throughput.

• X-Ray Quality Welds
  Produces clean, strong, inspection-ready welds with minimal post-processing.

• Multi-Layer Capable
  Excellent for complex builds that require high weld integrity over multiple passes.

Typical Applications

• High-speed sheet metal production

• Heavy plate and structural fabrication

• Automotive and aerospace welding

• General manufacturing and fabrication

• Projects requiring high gap tolerance

• Jobs demanding fast throughput without compromising weld quality
