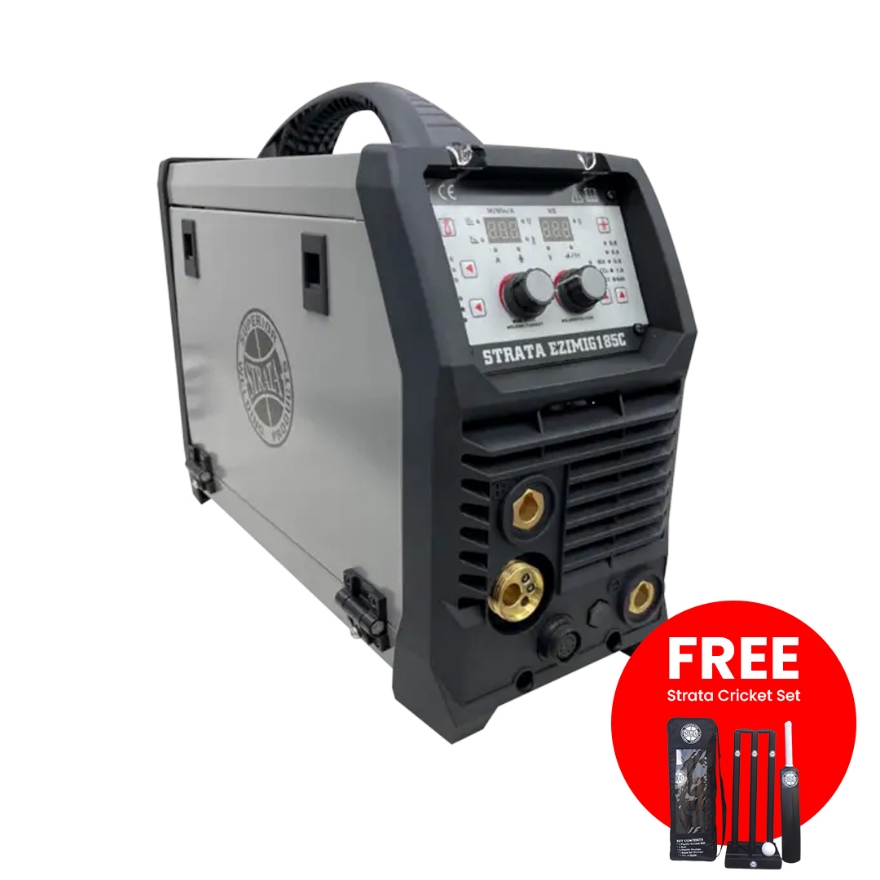

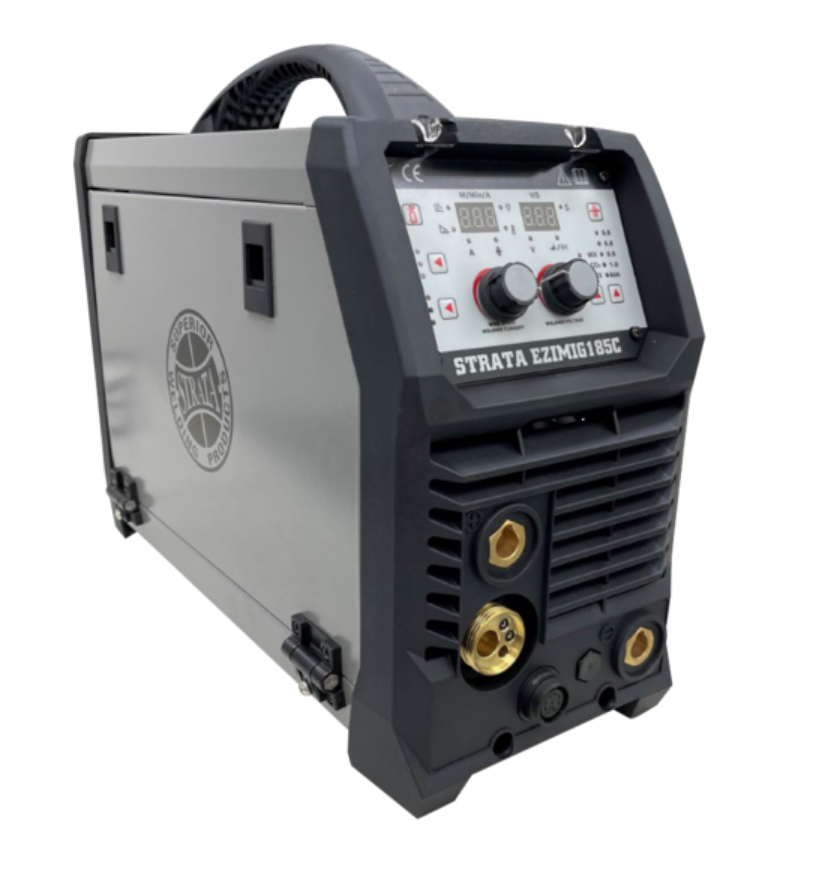

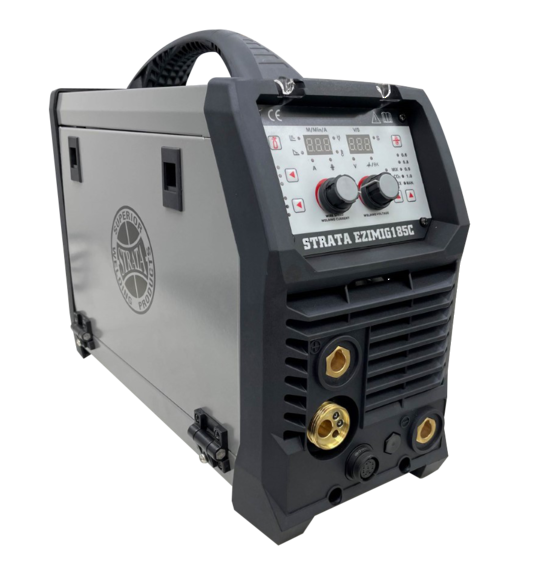

Strata EziMig185C 180A Synergic Mig/MMA Welder

Strata EZIMIG 185C Mig, ARC (optional TIG) welder is ultra compact and super easy to use. The perfect machine for site welding with is 10A mains supply! A must have for today's industrial professionals with the latest IGBT inverter technology, extreme stress testing to 440V and insulation class IP23, this machine is built to last!

SKU: 33925

Product Overview

Ultra compact and easy to use, the EZIMIG 185C multi-process welder is a must have for today's industrial professionals. With the latest IGBT inverter technology, extreme stress testing to 440V and insulation class IP23, this machine is built to last.

Key Features

IGBT Inverter Technology for smooth & stable welding welding output and increased reliability
Synergic MIG operation with Parameter Save/ Recall Intuitive and simple setting of controls for consistent weld results
MIG Inductance & Burnback Control for greater control for MIG welding operation
Spool Gun Connection w/ Remote Control for effective results welding with soft wires such as Aluminium and MIG brazing with bronze wires.
Lightweight & Compact Design, ideal for portable applications
Adjustable MMA Hot Start & Arc Force Functions
Industrial IP23 casing with front panel protection for great resistance to damage, moisture and corrosion
Lift TIG Welding Operation ideal for precision and aesthetically important welding jobs

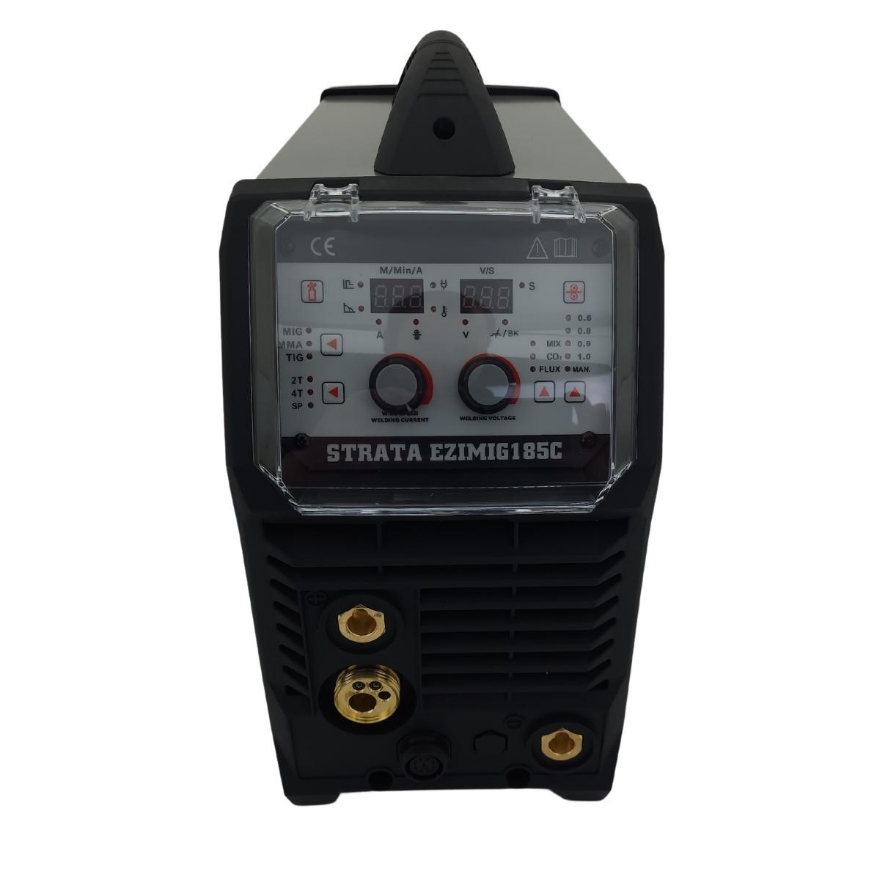

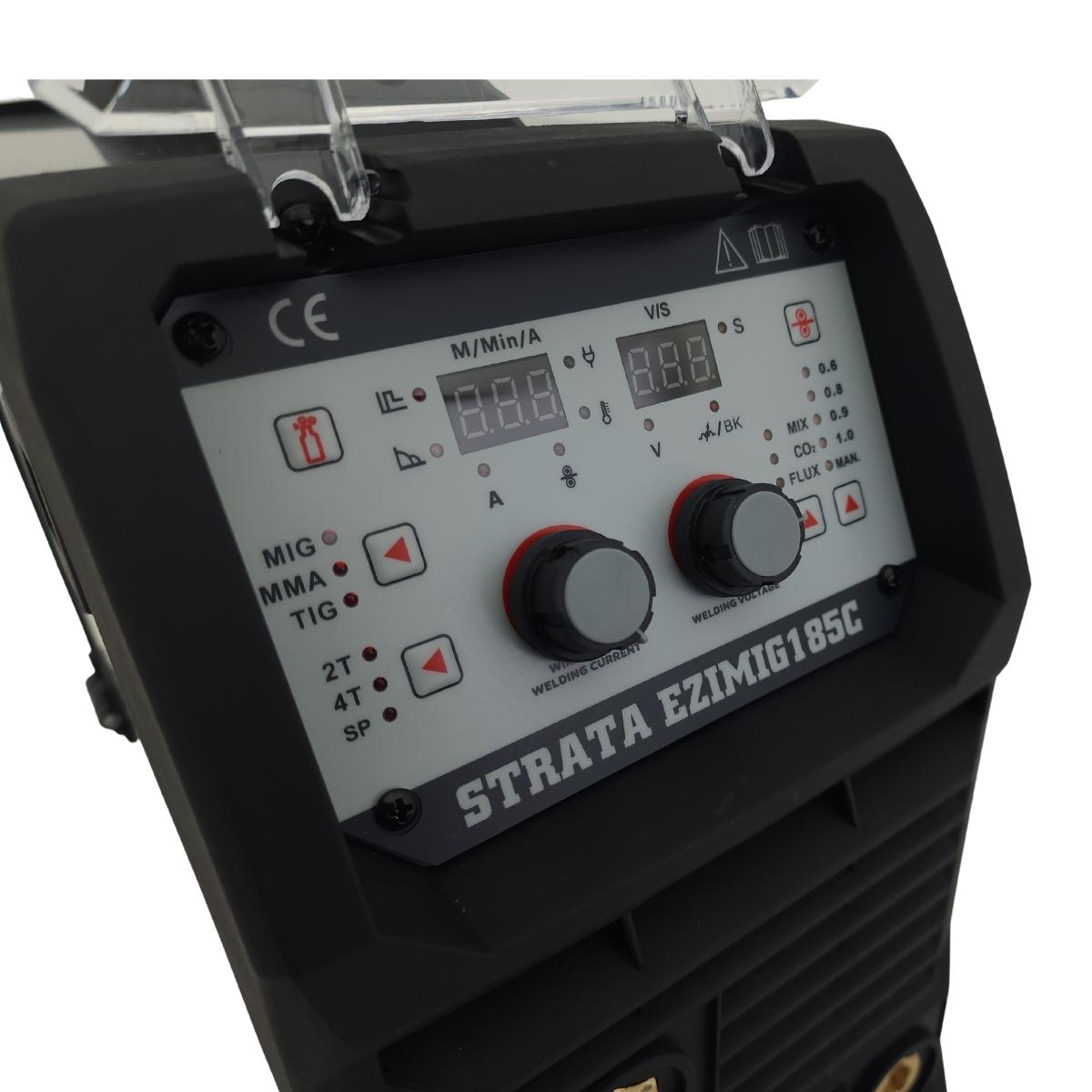

Dual Digital Display Meters allow for accurate pre-setting and feedback of welding parameters & output.
2T/4T/ Spot Weld Trigger Control

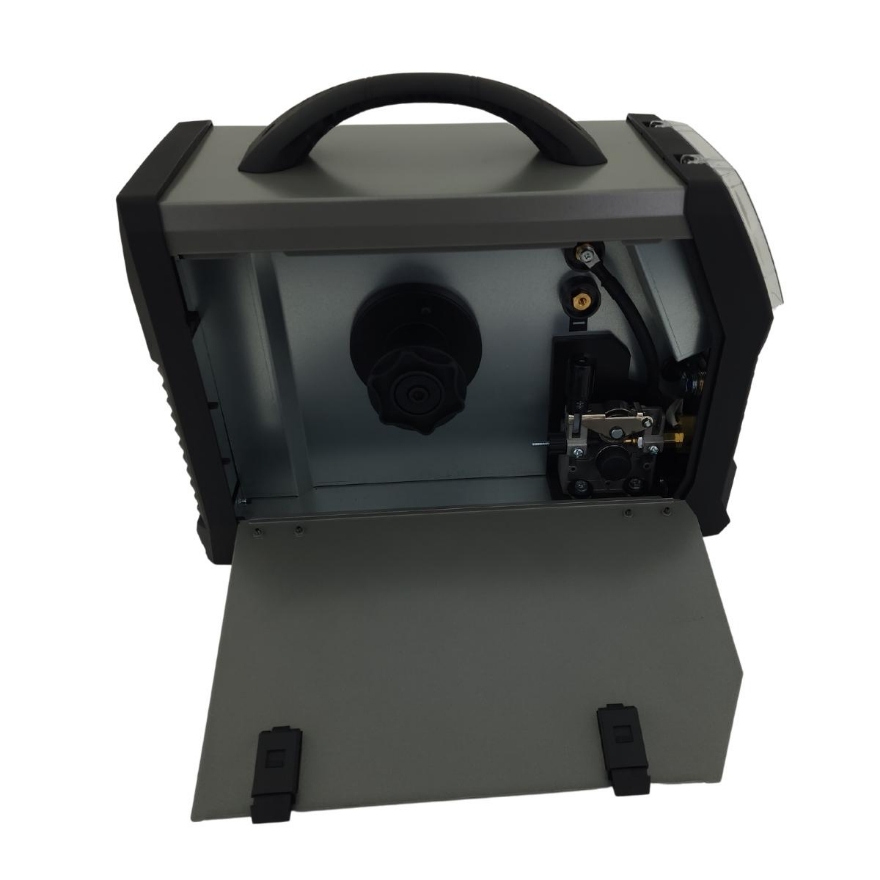

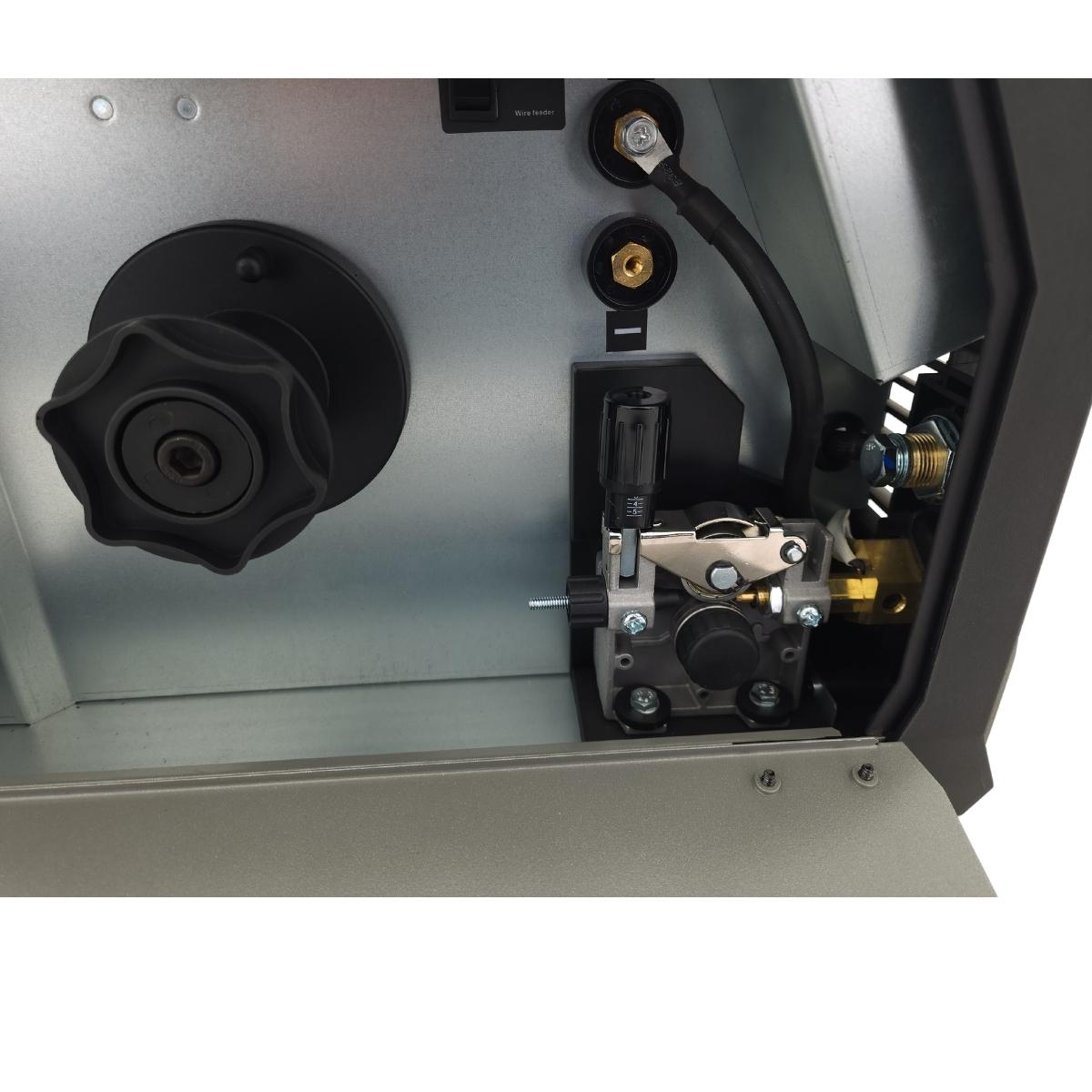

Metal Chassis Wire Feeder Smooth and consistent wire feed.
Digital Microprocessor Control System for Superior & Dynamic Arc Characteristics
Extreme stress testing to 440V in production for rugged reliability.
Reversible Polarity MIG Welding Operation Suitable for gas & gasless MIG welding.
High Quality & Over Specified Electronic Components for Superior Durability & Reliability
Intelligent Protection System with temperature, voltage and current sensors for increased reliability & safety
Generator Friendly - Designed to work with generator power supply and protect from power surges.

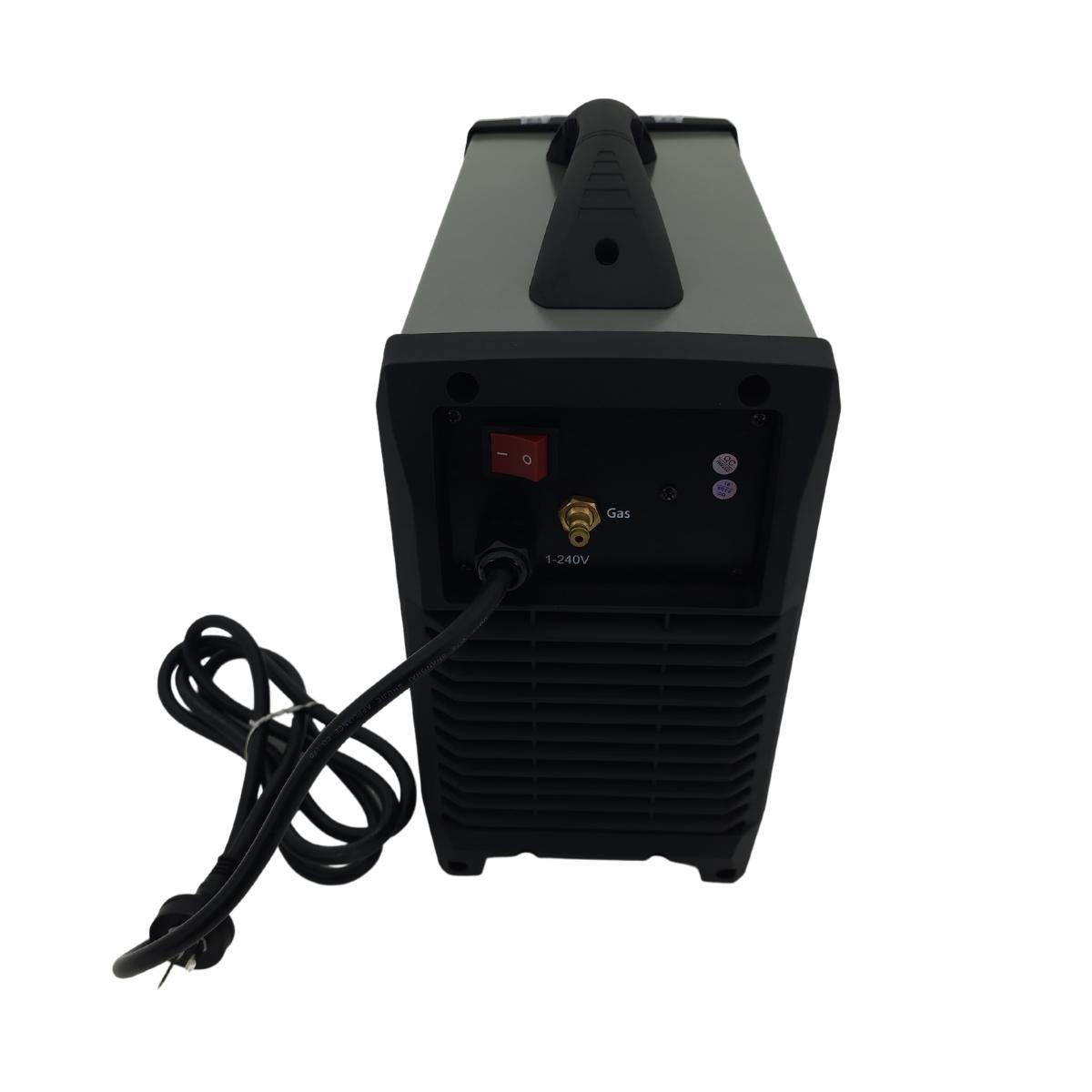

Quick connect inlet gas fitting

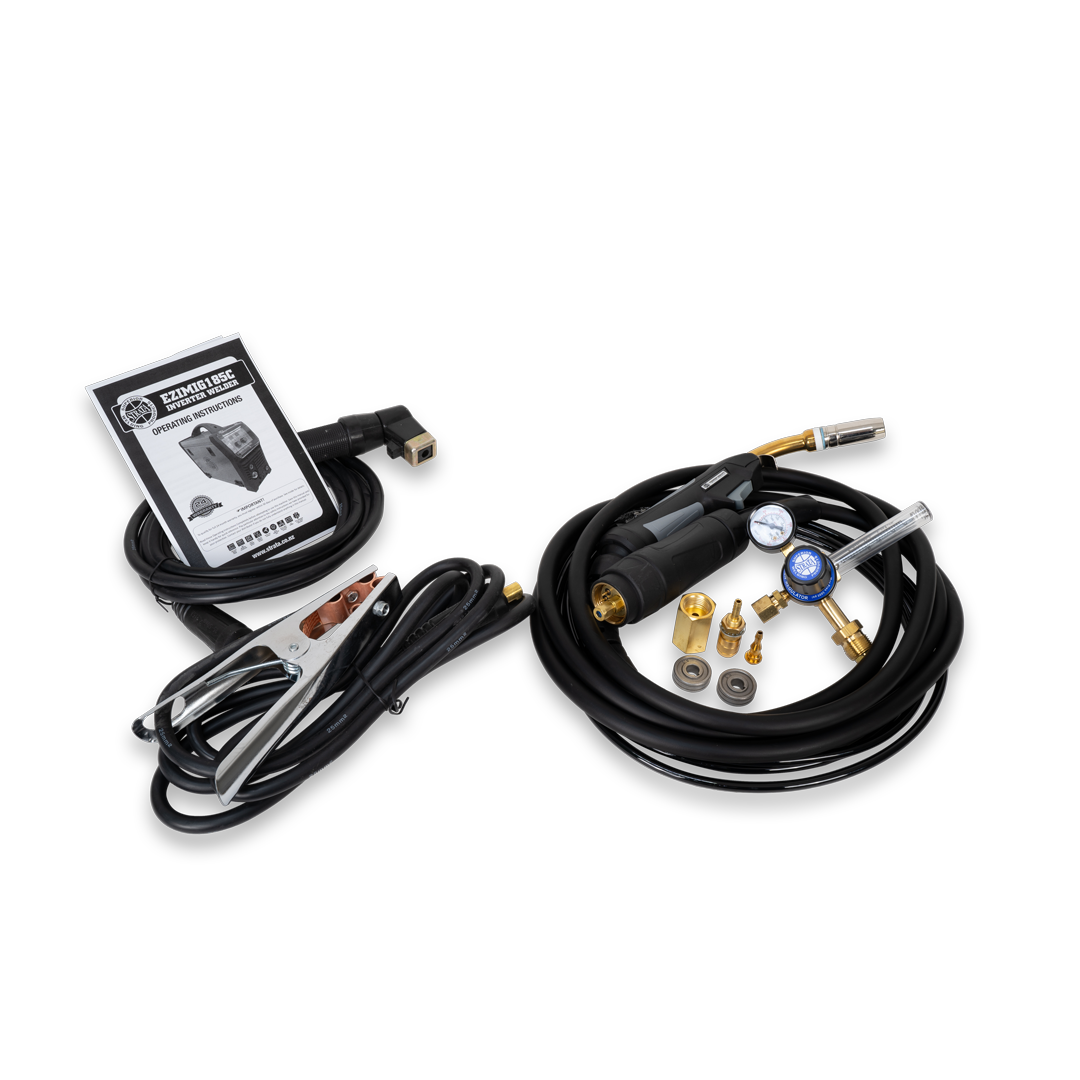

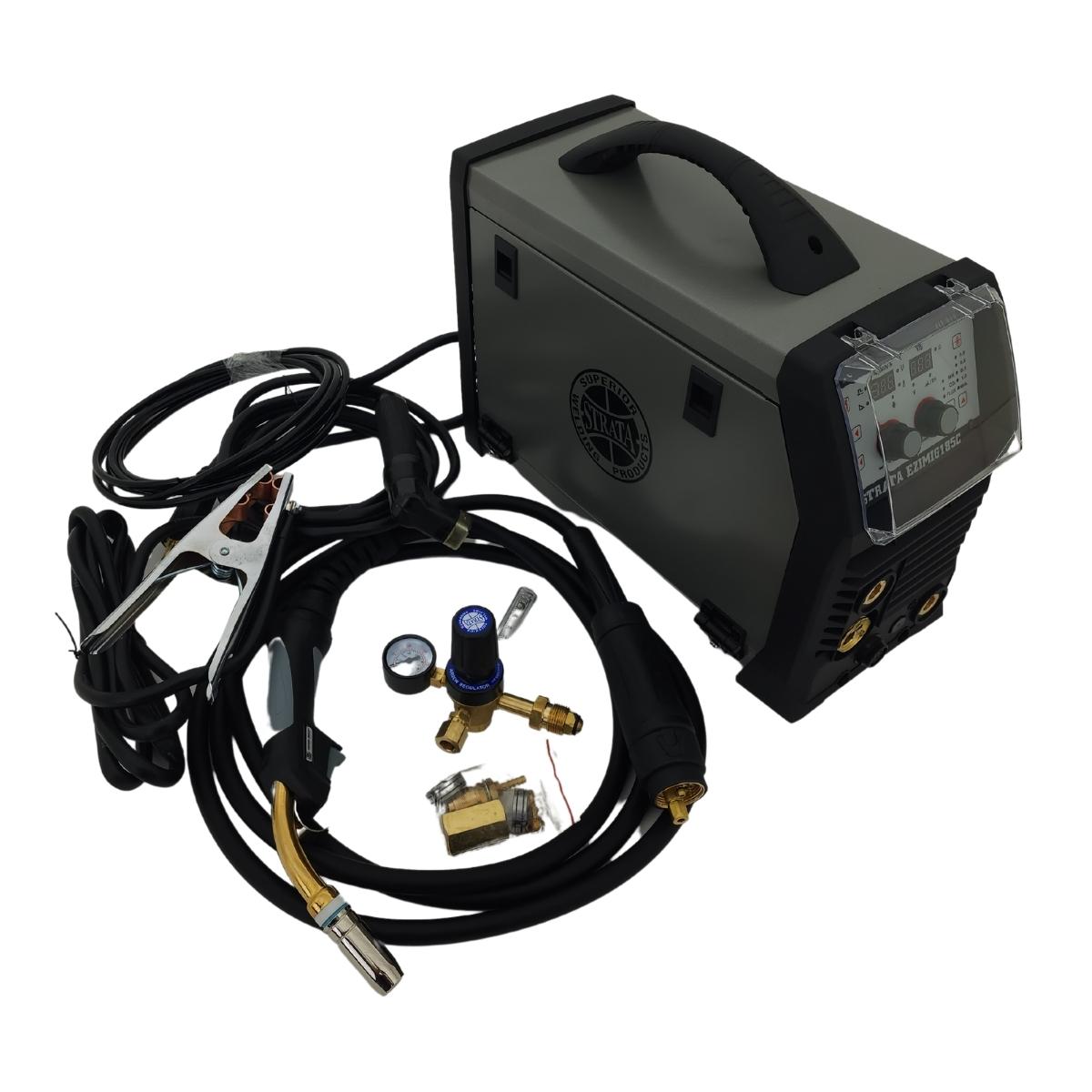

Includes: MB25 Mig Torch, Earth & Arc Lead Set, Argon Regulator, CO2 Adaptor, Gas Hose with Quick Connect Fittings, Drive Roller 'V' Groove (0.6-0.8mm & 0.9-1.0mm)

Technical Specifications

Specifications -

Dimension	460x190x360mm	Weight	11kg
Input Power Supply	230V AC 10A 50/60Hz	Input Power Tolerance	230+/-10%V
Max Input Current (A)	26A	MIG Output Voltage	10V - 26V
MIG Output Current	40A - 180A	MIG Duty Cycle	180A@15%, 130A@60%, 100A@100%
MIG Drive Rollers	V Groove: 0.6/0.8 & 0.9/1.0mm, Knurled: 0.8/0.9mm	Wire Speed Range Ipm (M/Min)	1.5-15m/min
MMA Current Output	10A - 180A	MMA O/C Voltage	65V
MMA Duty Cycle	160A@10%, 130A@60%, 100A@100%	Insulation Class	IP23
Standards	EN60974-1:2012	MMA Rod Size	1.6 - 5.0mm
Warranty (Months)	48 months	Power Efficiency	85%
Power Factor	0.65	Generator Capacity	7KVA
Spool Size	D200 5kg
