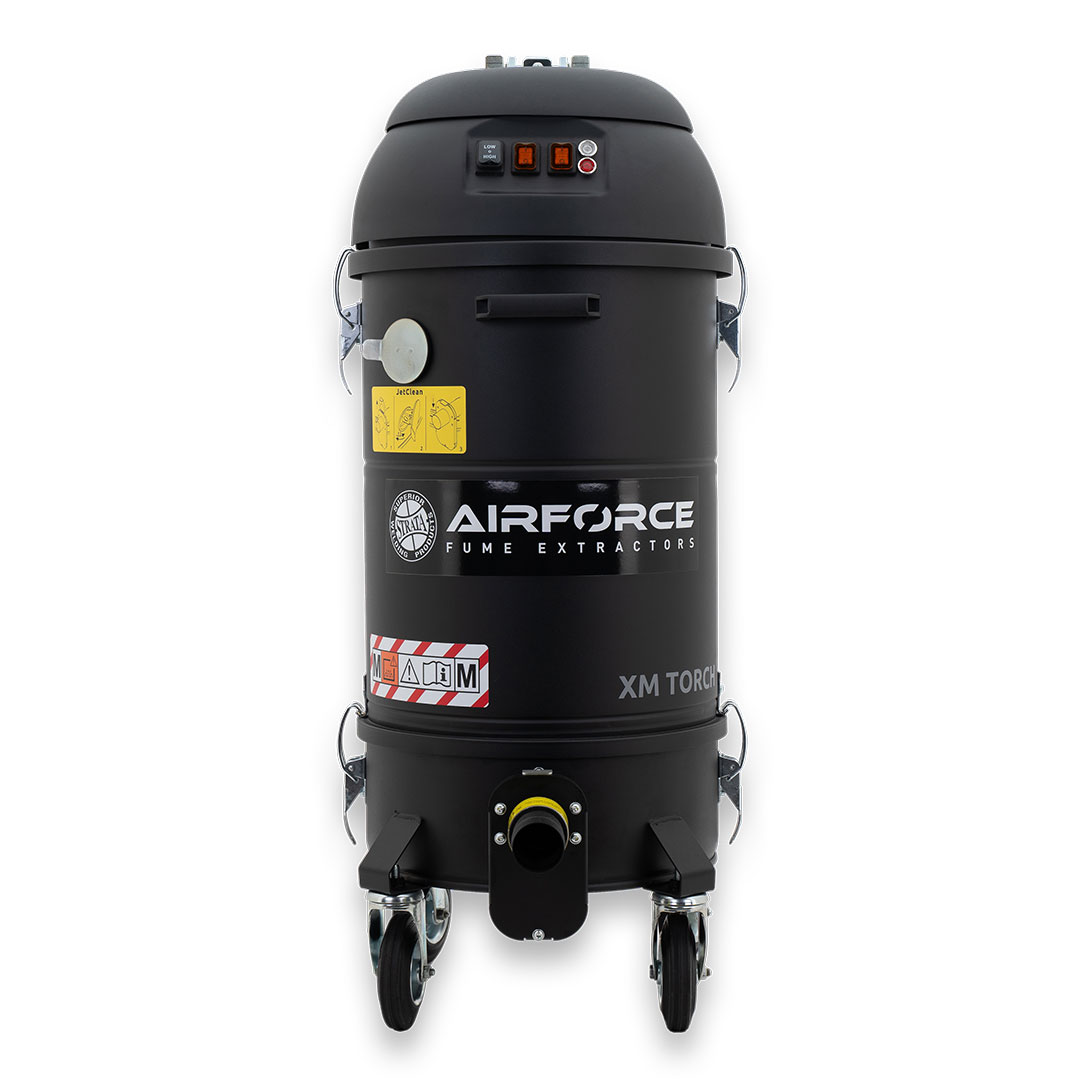

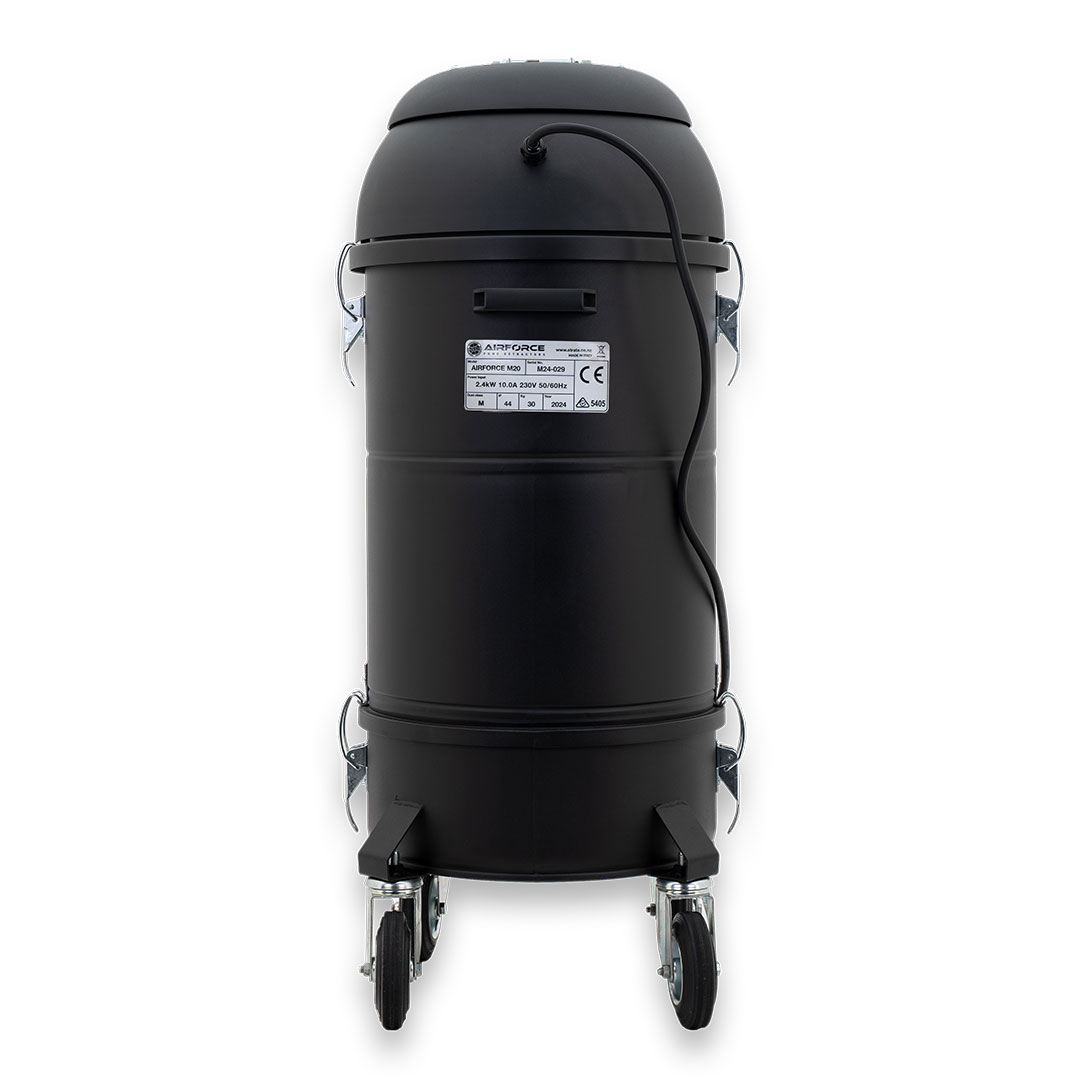

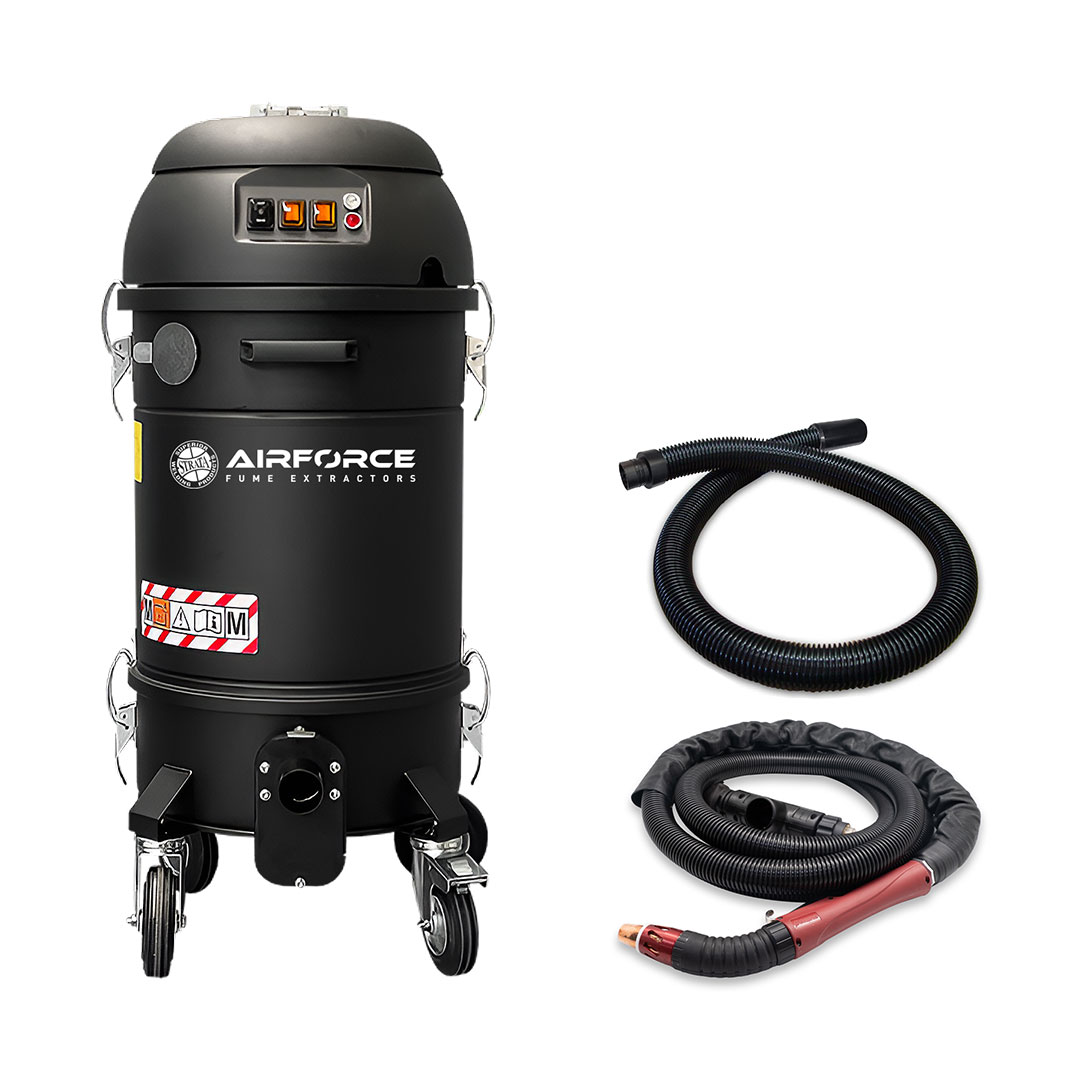

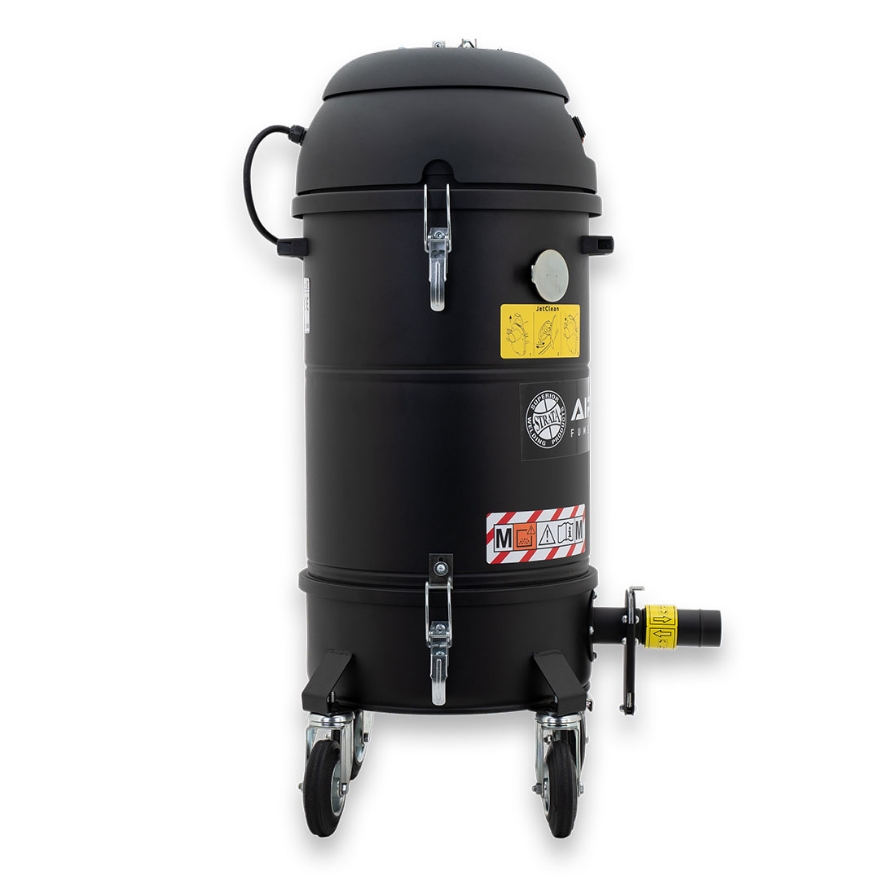

Strata Airforce M20 Twin-Motor Fume Extractor

Strata Airforce M20 Twin-Motor Fume Extractor

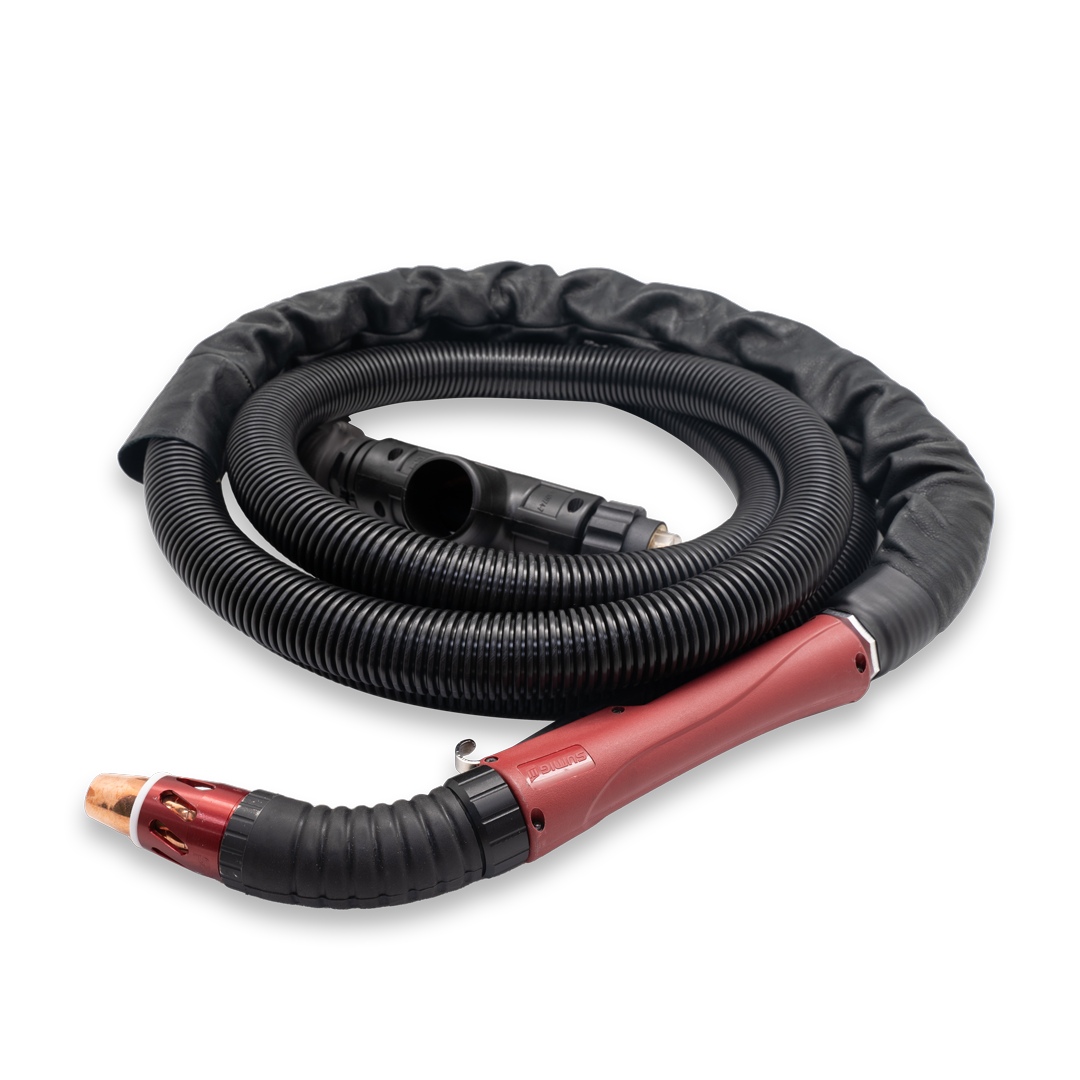

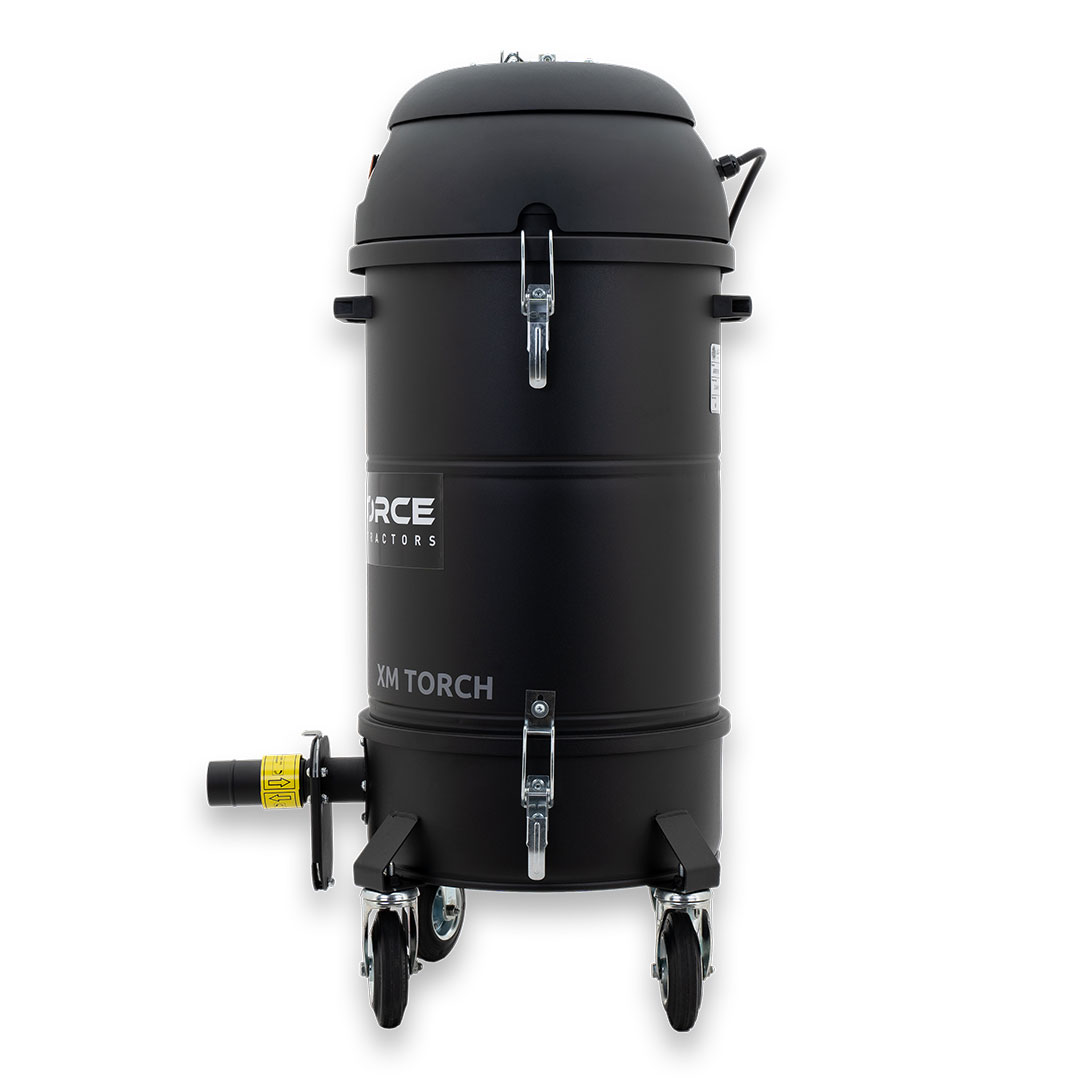

The XM Torch 2M industrial vacuum cleaner is an excellent choice for removing fumes directly from the welding torch. Designed for efficient welding fume extraction, this vacuum cleaner features two robust By-Pass motors, each providing up to 190 m3/h of airflow. It integrates seamlessly with the welding machine, offering direct control. A sophisticated sensor on the vacuum detects current flow in the ground cable through a special clip. The XM Torch 2M includes a cellulose filter for safe welding fume filtration, with an optional H14 filter available upon request.

Key Features

• 2600W power
• 20L tank capacity
• 3.5m2 surface area coverage

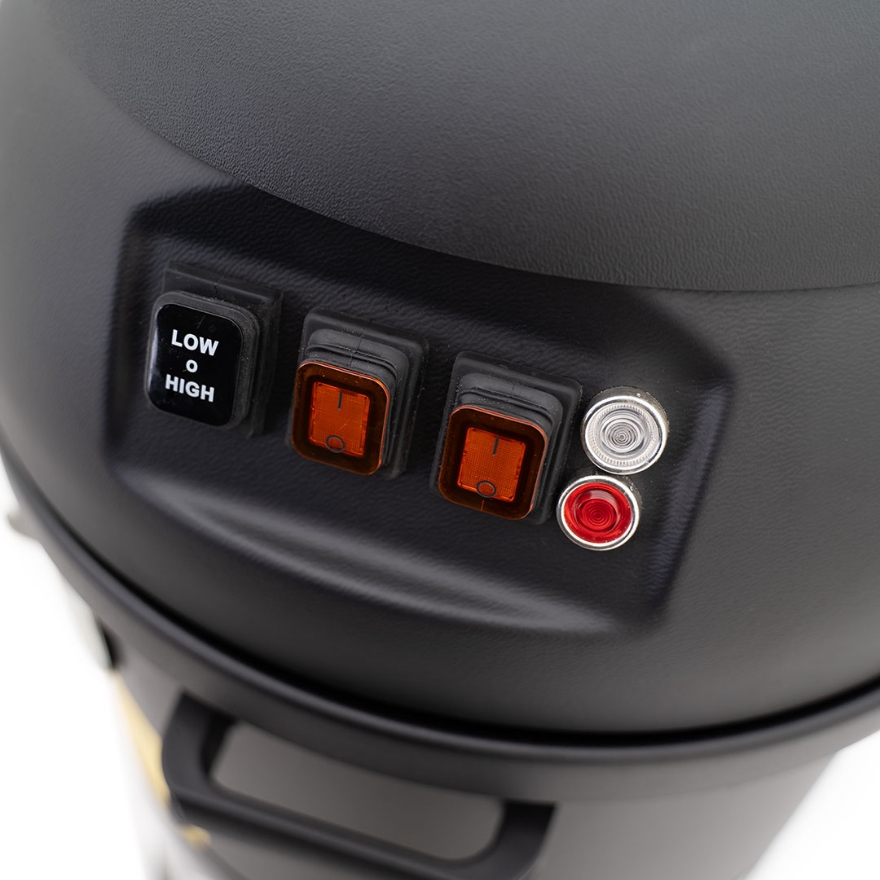

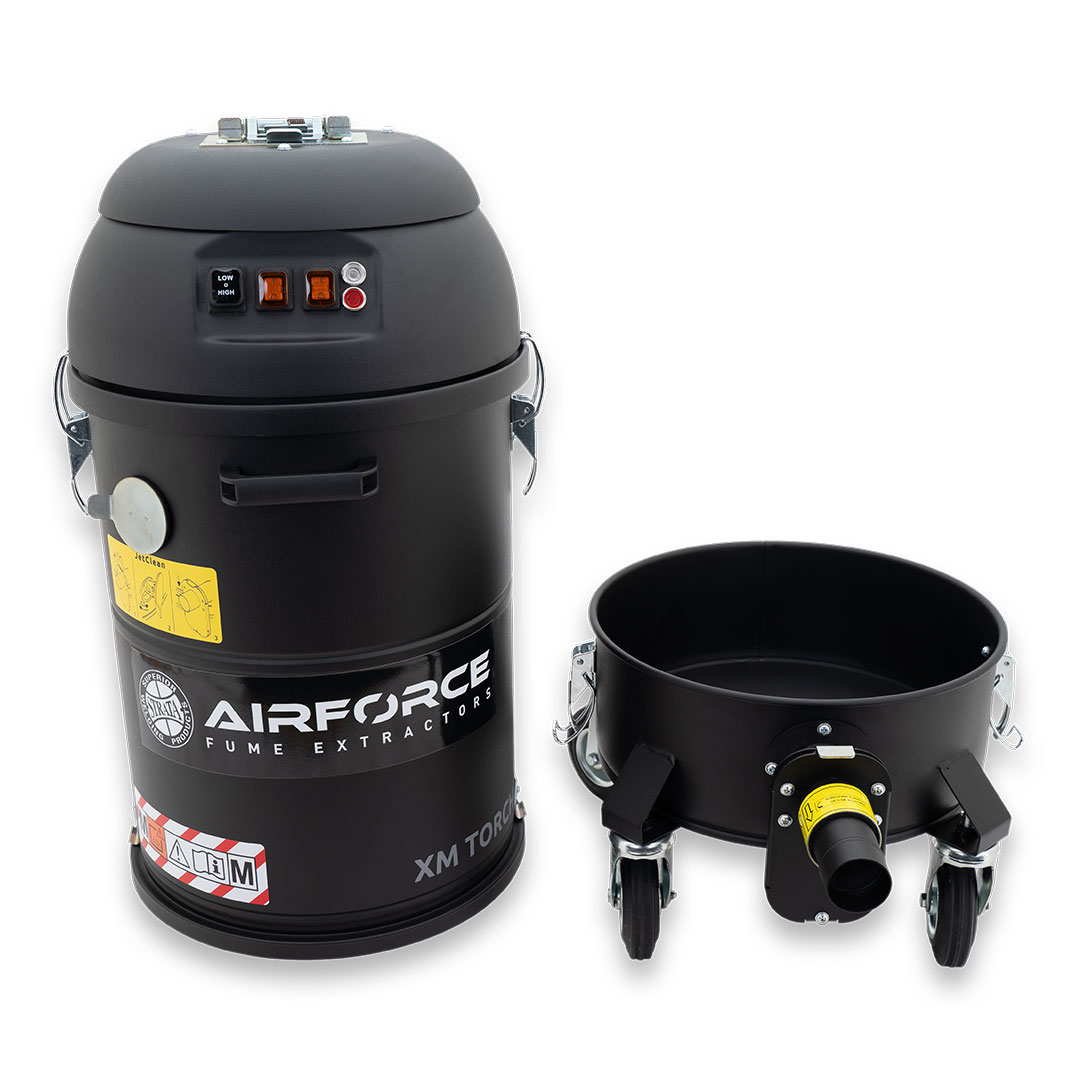

• The vacuum is generated by two By-Pass motors, each managed by an independent switch, allowing the operator to control the intake performance
• The motors are housed in a robust casing with an insulating sponge to ensure low noise levels
• Filtration is ensured by a durable polyester filtering cartridge, designed to provide a large filter surface in a compact space, allowing air to pass through even when the filter is dirty

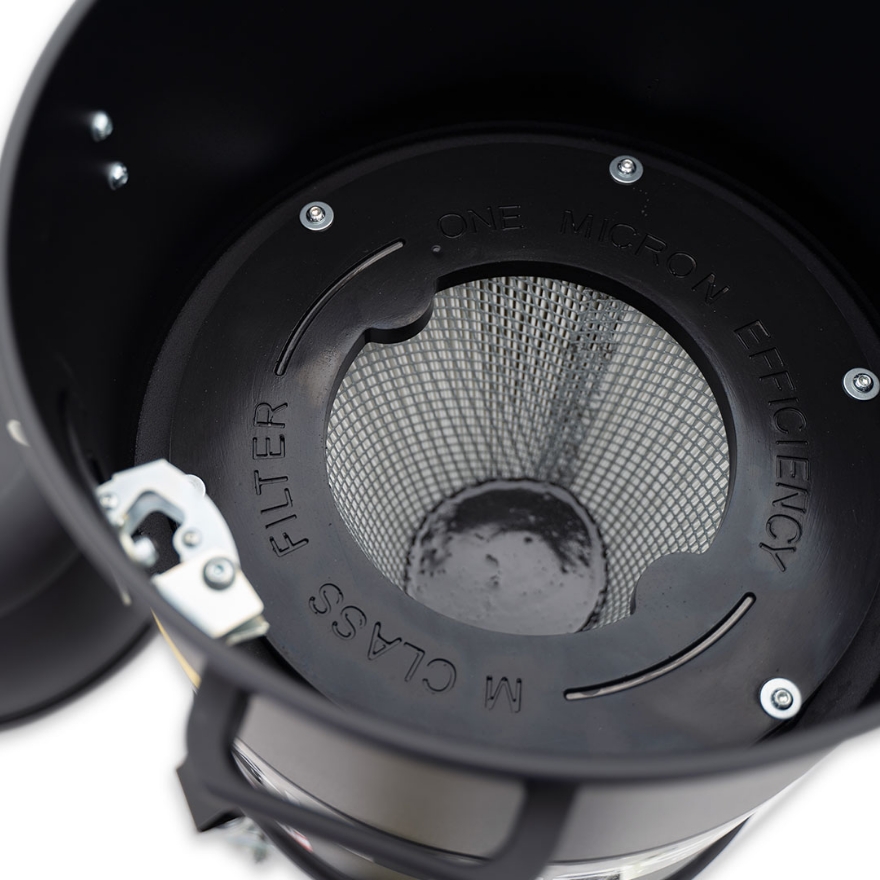

• The M Class (BIA | EN 60335-2-69) certified filter stops particles as small as 1 micron, protecting both the motors and the operator

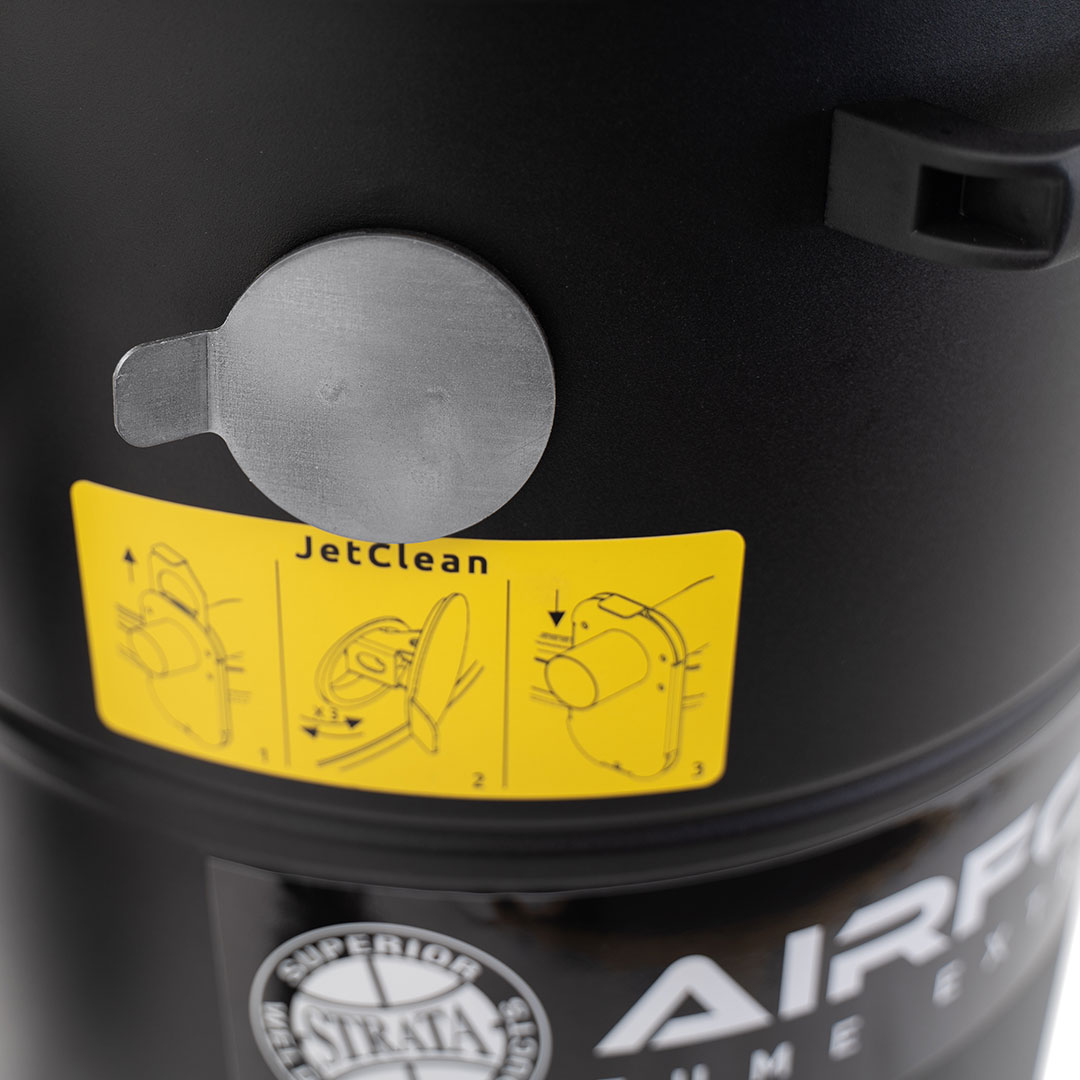

• Equipped with the innovative JetClean® filter cleaning system, the vacuum cleaner uses pressure differences inside and outside the unit to generate an air jet that effectively detaches dust from the filter's surface
• JetClean® filter cleaning system provides a quick and efficient way to maintain filter cleanliness during operations, allowing continuous vacuuming without interruptions
• A sensor on the unit allows the operator to control the machine directly from the welding unit; by passing the cable through the clip, the vacuum cleaner automatically starts when welding begins, ensuring synchronized operation and convenience
• Primary filter diameter: 305mm

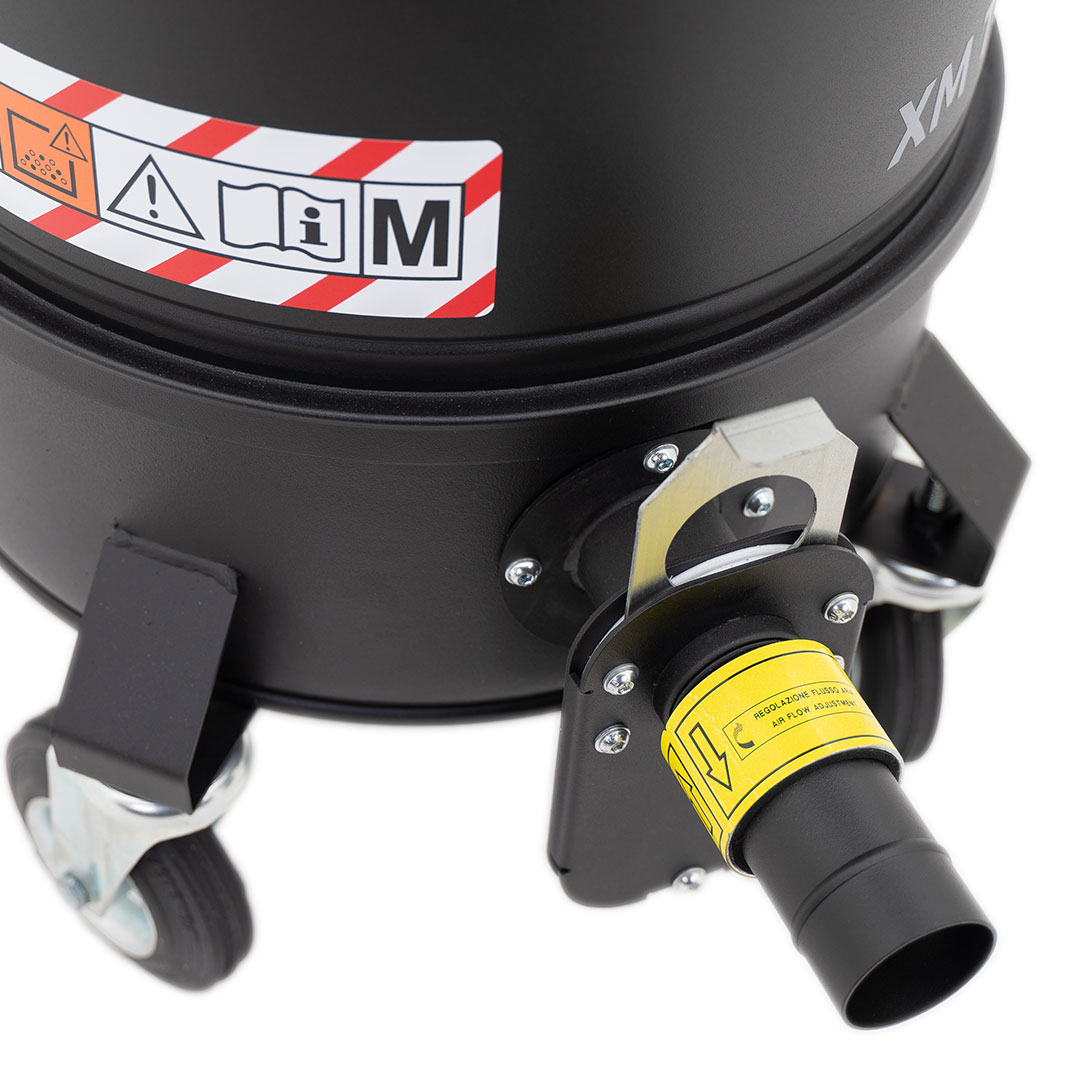

• Suction inlet: 40mm diameter
• Dimensions (LxWxH): 534 x 471 x 983mm
• Weight: 38kg
