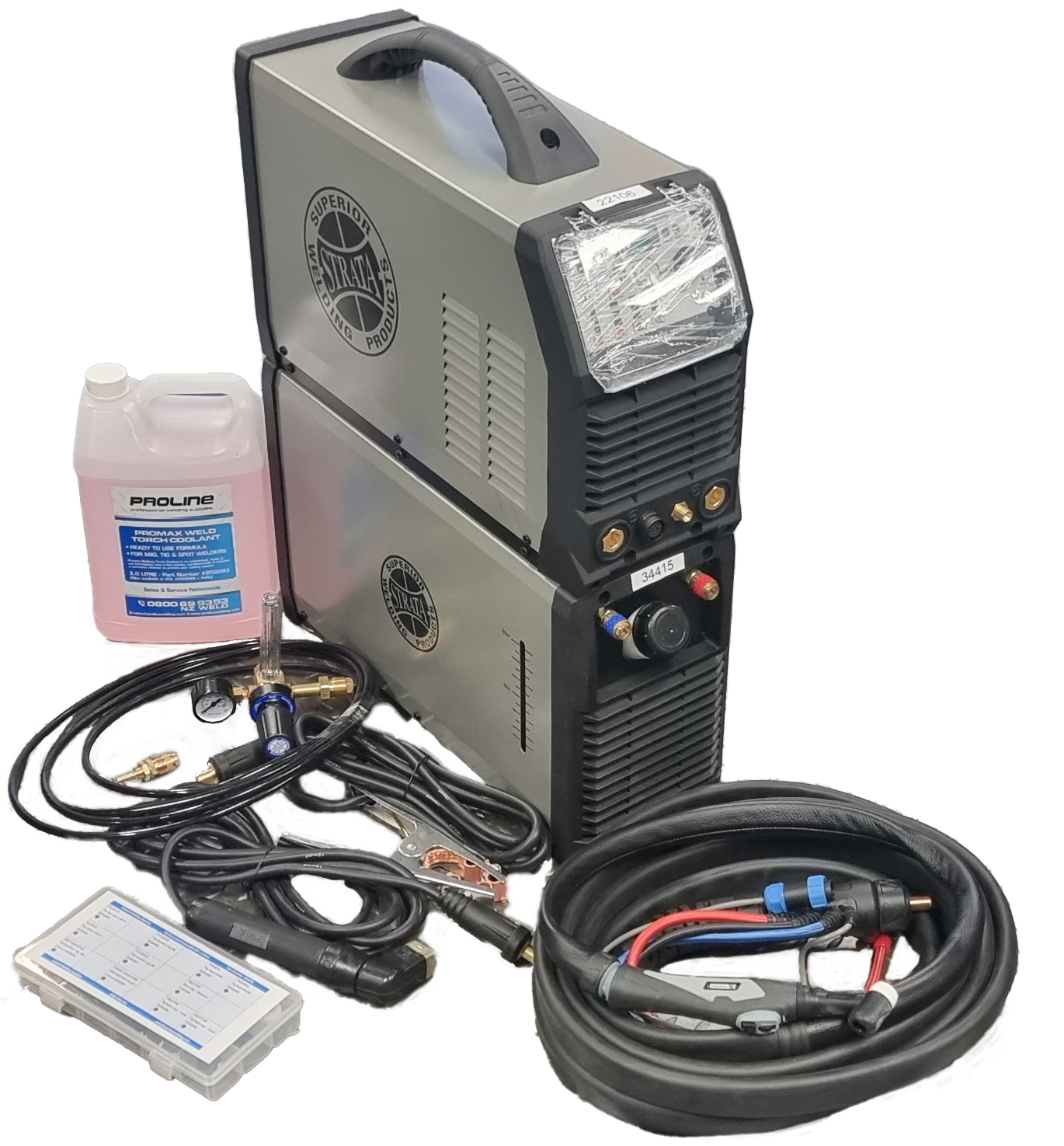

Strata AdvanceTig205ACDC Water Cooled Package

Strata AdvanceTig205ACDC Water Cooled Package

Featuring the latest IGBT and active PFC technology, the ADVANCETIG205AC/DC is reliable, easy to use and energy efficient. Designed tough with IP23 and high-quality, over-specified components - this machine is made for rugged NZ workshops and onsite tasks.

Key Features:

• AdvanceTig205ACDC:
• Multi-voltage input - will operate with a wide range of input voltage
• Industrial IP23 casing with front panel protection resists damage, moisture and corrosion
• Microprocessor control system for superior & dynamic arc characteristics
• Lightweight & compact design ideal for portable applications
• Extreme stress testing to 440v in production for rugged reliability.
• Adjustable arc force, hot start & automatic anti-stick control for greater control and ease of use for MMA welding.
• Lift TIG and HF start modes for versatility when welding around sensitive electronic equipment
• Electronic HF TIG arc ignition system for contamination-free and easy arc starting with low EMF interference
• 2T/4T trigger control modes
• Dual digital display meters for accurate pre-setting and feedback of welding parameters & output.
• Intelligent protection system with temperature, voltage and current sensors for increased reliability and safety
• Multi-PCB construction is economical to service and repair compared to single PCB design

230V Water Cooler (34415):

• Compact water cooler designed for use with portable TIG welding machines
• Small footprint and low weight for easy portability
• External level indicator for the coolant tank
• Color-coded quick-connect coolant line connections
• Built-in brackets for standard modular connection to Strata AdvanceTig205ACDC machine
• Suitable to use with other Tig welders (BW-TIG200ACDC and EziTig205ACDC)
• Dimensions: 600x180x240mm (LxWxH)
• Weight: 10kg

Replaced by Strata AdvanceTig250ACDC 250A TIG/ARC Water Cooled Package
