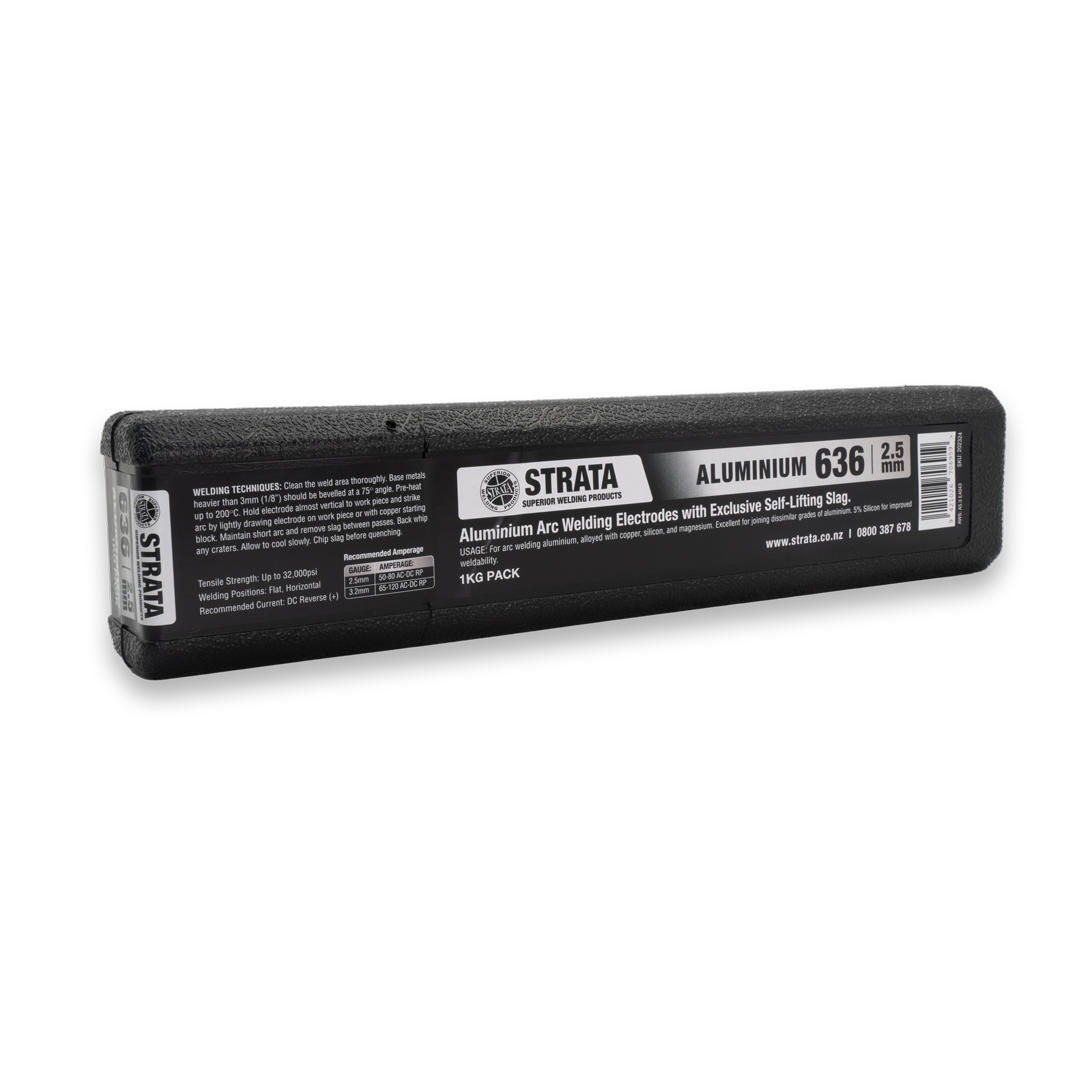

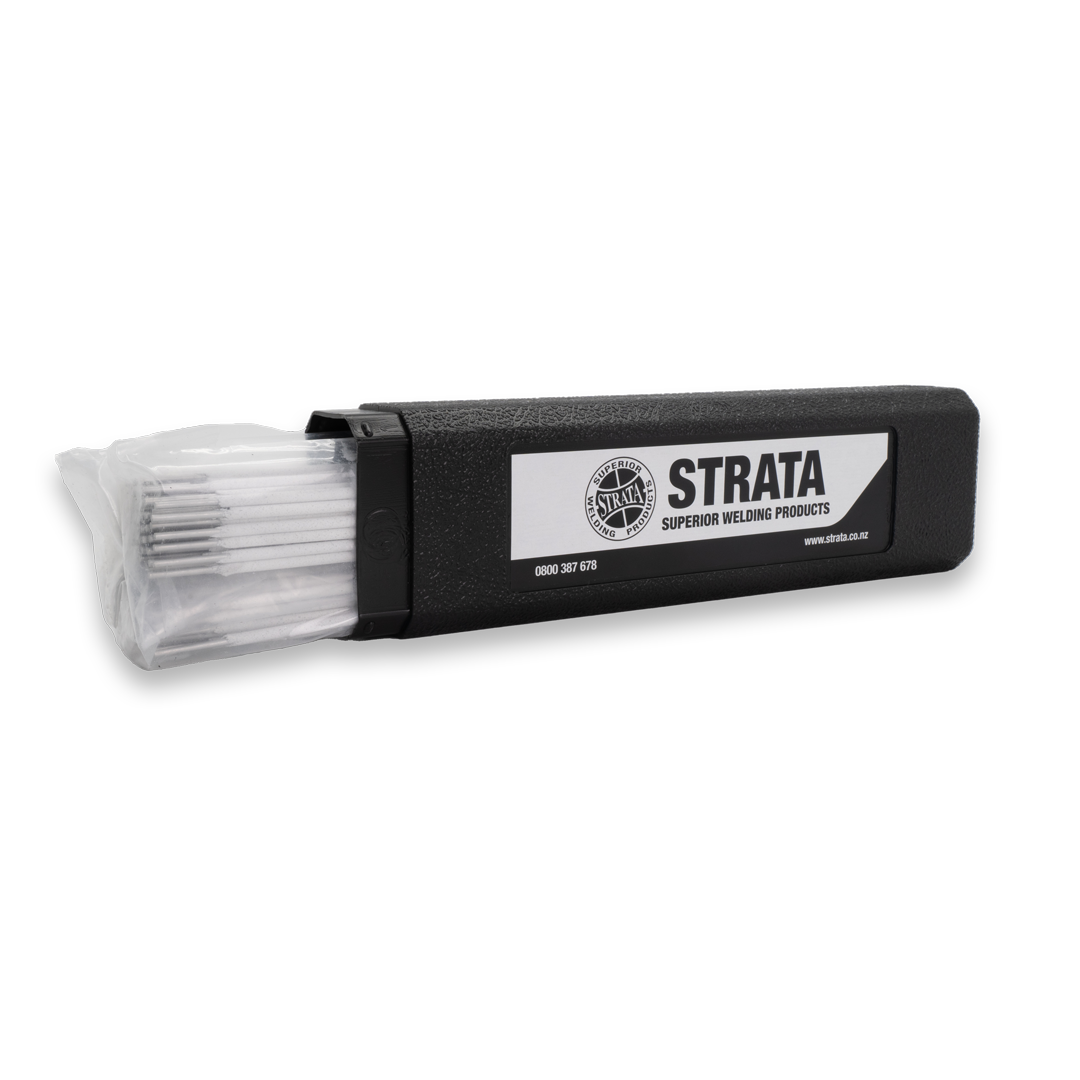

Strata 636 Aluminium Arc Electrodes

Strata 636 Aluminium Arc Electrodes

Key Features

• Aluminium arc welding electrodes with exclusive self-lifting slag
• For Arc welding aluminium, alloyed with copper, silicon and magnesium
• Excellent for joining dissimilar grades of aluminium
• 5% silicon for improved weldability
• Unique self-lifting slag
• Pure white long shelf life extruded flux coating outlasts conventional products in moisture resistance
• Tensile Strength: 32,000PSI (230 MPa)
• Yield Strength 20,000PSI (150 MPa)
• Available in 2.5mm and 3.2mm
• Available in handy packs or 1kg packs
• AWSP: A5.3 E4043

Procedures

• Clean the weld area thoroughly. Base metals heavier than 3mm (1/8") should be beveled at a 75° angle. Pre-heat up to 200°C. Hold electrode almost vertical to work piece and strike arc by lightly drawing electrode on work piece or with copper starting block. Maintain short arc and remove slag between passes. Back whip any craters. Allow to cool slowly. Chip slag before quenching.

Applications

• Aluminium, alloyed with copper, silicon and magnesium
• Joining dissimilar grades of aluminium
