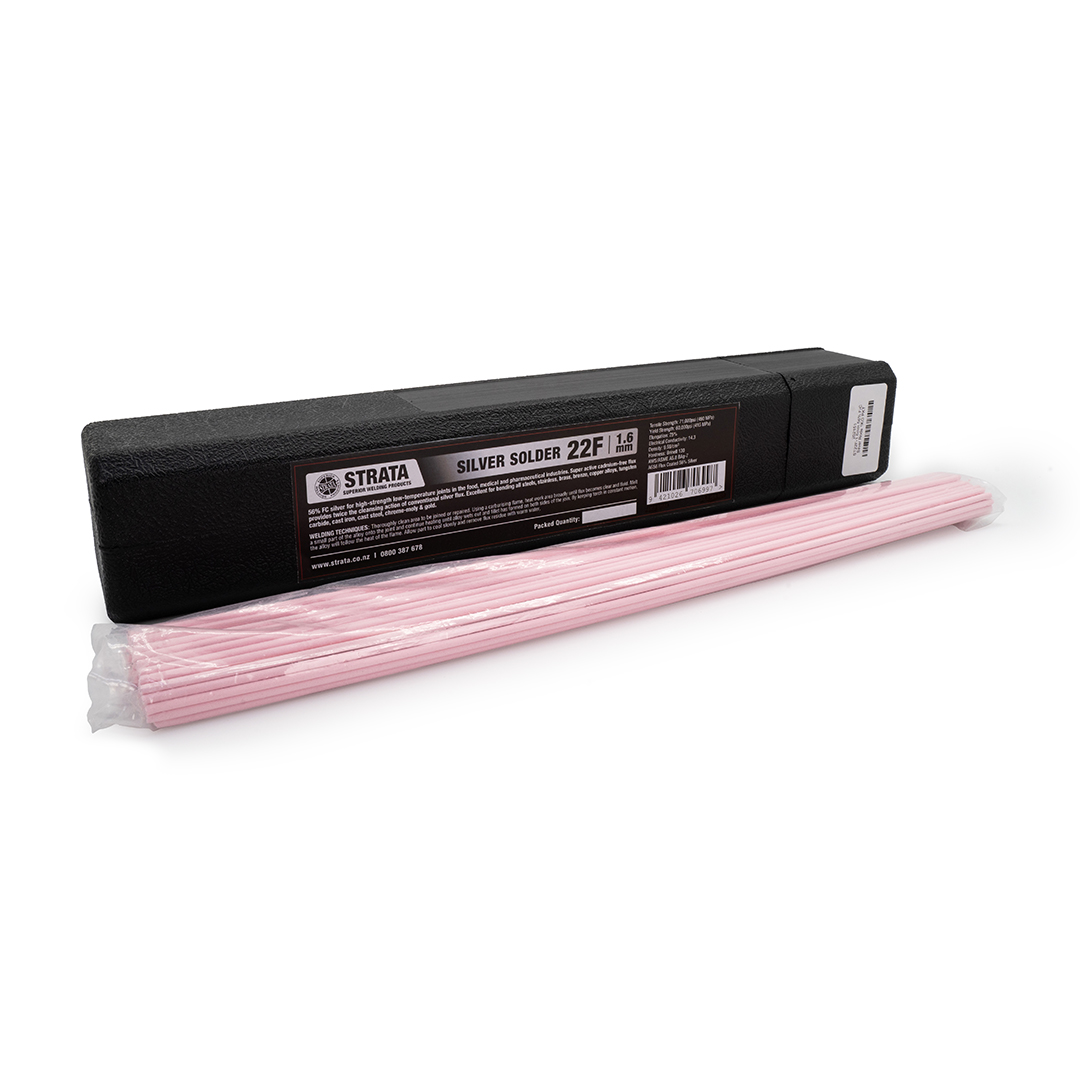

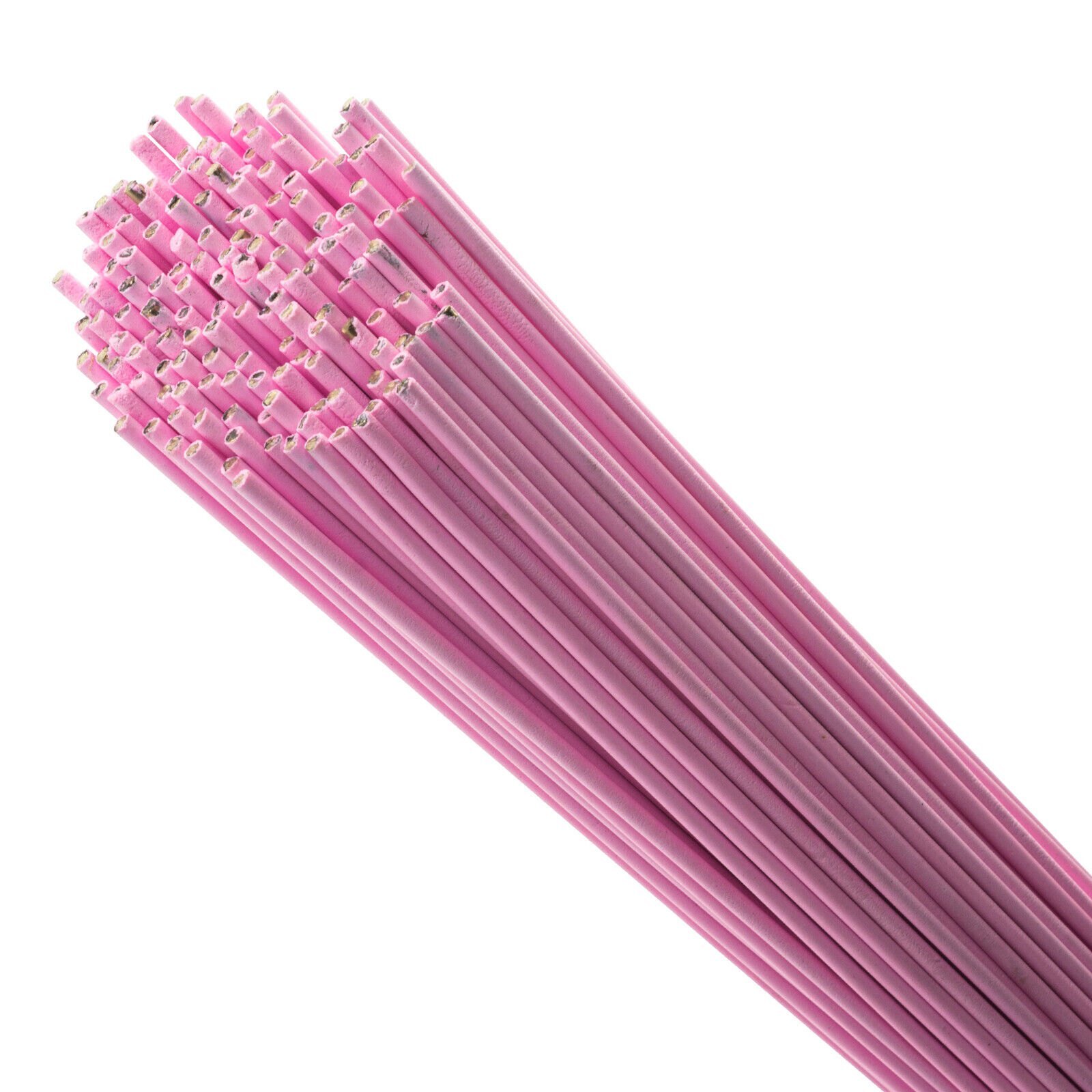

Strata 22F 1.6mm 56% Flux Coated Silver Brazing Rods

Strata 22F 1.6mm 56% Flux Coated Silver Brazing Rods

Key Features

• High strength, easy flowing, cadmium free
• For low temperature joints in the food, medical and pharmaceutical industries
• Super active cadmium-free flux provides twice the cleaning action of conventional silver flux
• Rare flux coated silver rods for precision work
• No odours from rubberized compounds yet the flux coating is totally flexible and non-fragile
• The only flux coated silver flux strong enough to clean oxidized stainless steel
• Hardness: Brinell 130
• Available in 1.6mm
• Available in 1kg packs or per rod
• AWS/ASME: A5.8 BAg-7

Procedures

• Thoroughly clean area to be joined or repaired. Using a carburised flame, heat work area broadly until flux becomes clear and fluid. Melt a small part of the alloy onto the joint and continue heating until alloy wets out and fillet has formed on both sides of the join. By keeping the torch in constant motion, the alloy will follow the heat of the flame. Allow part to cool slowly and remove flux residue with warm water.

Applications

• Excellent for bonding all steel, stainless, brass, bronze, copper alloys, tungsten carbide, cast iron, cast steel, chrom-moly and gold
