Promax Drive Rollers OD30 ID10 W12

Promax Drive Rollers OD30 ID10 W12

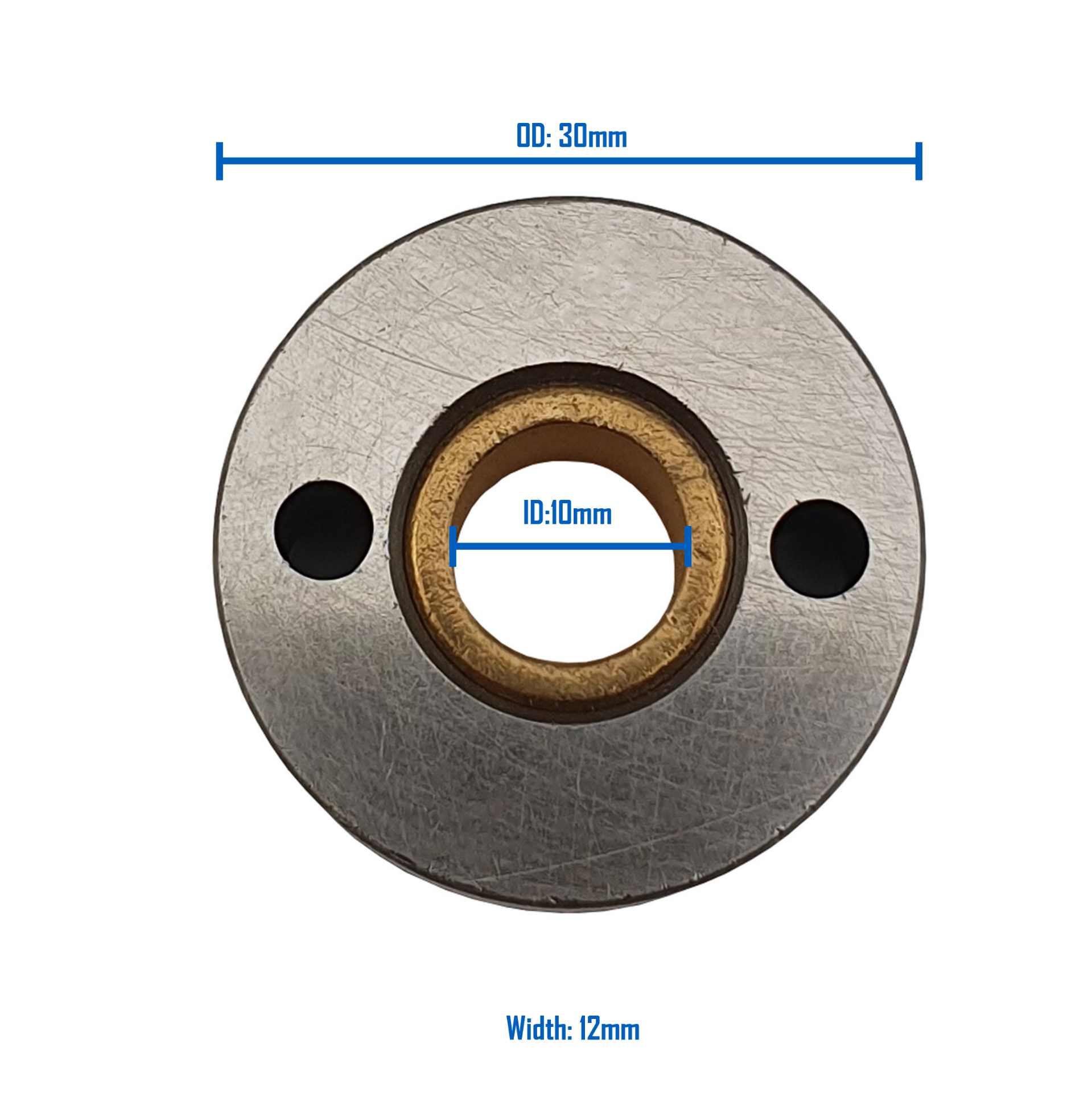

Key Features

• Outside Diameter: 30mm
• Inside Diameter: 10mm
• Width: 12mm
• Available in knurled, u-groove and v-groove style
• Knurled is used for flux-cored wires
• U-Groove is used for aluminium and other soft wires
• V-Groove is used for solid wires

Available in the sizes below:

	Knurled	U-Groove	V-Groove
0.6/0.8mm			SW17835
0.8/0.9mm	SW17838		201434
0.8/1.0mm		SW17841	204214
0.9/1.0mm			SW17836
1.0/1.2mm	SW17839	32560	SW17837
1.2/1.6mm	SW17840	SW17842

• Fits the following machines:

BOC: Smootharc Advance Mig 275R, 350

Strata: AdvanceMig250, 255, 255C, 350, 355, 500, 505, Ezimig205, 215C

Weldtech: WT205MIG
