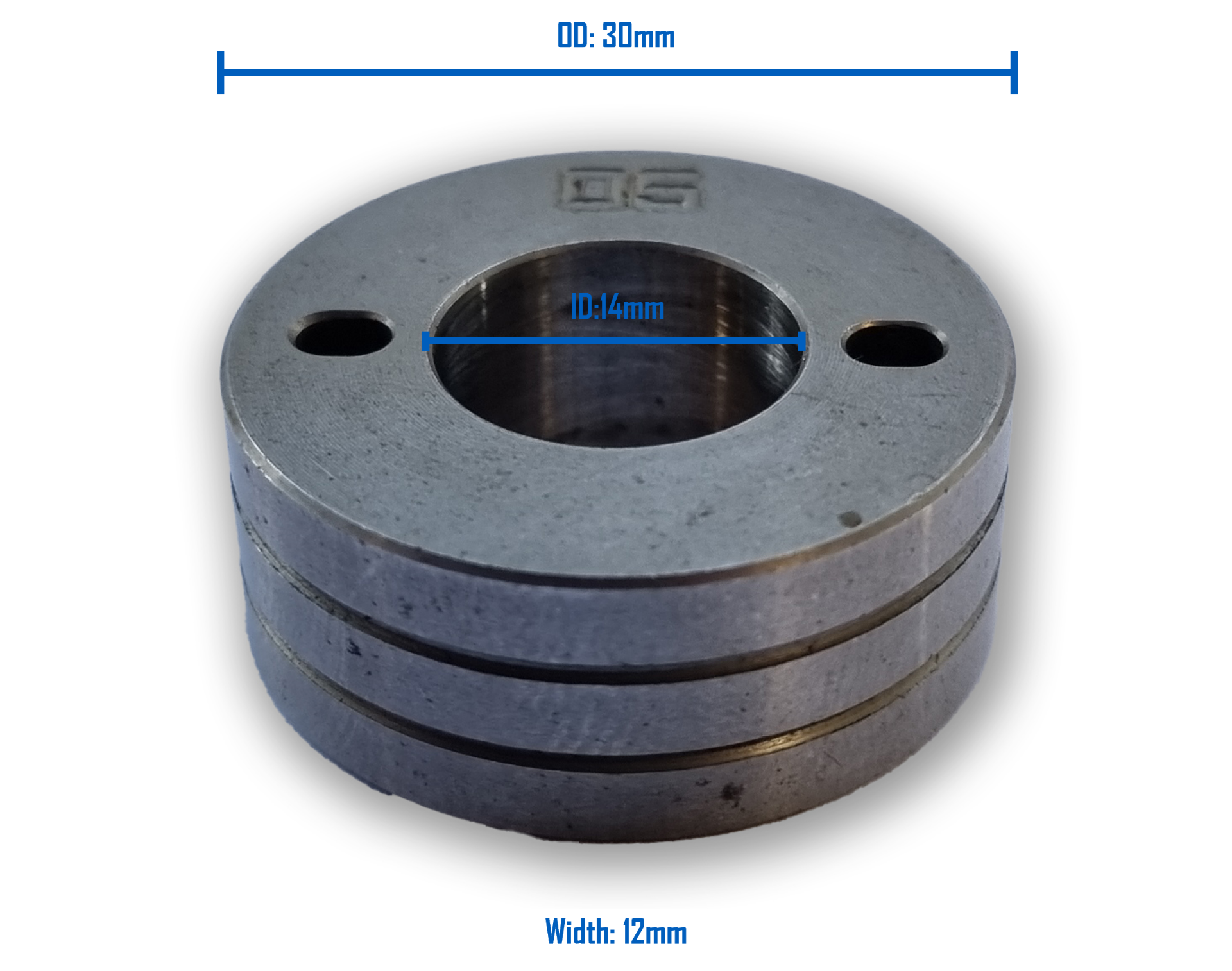

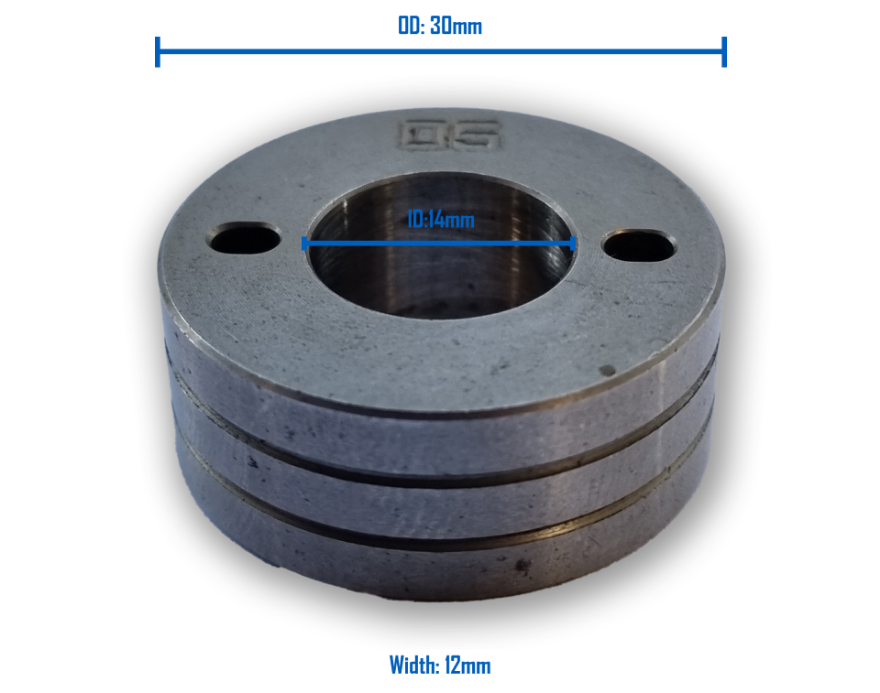

Promax Drive Rollers OD30 ID14 W12

Promax Drive Rollers OD30 ID14 W12

Key Features

• Outside Diameter: 30mm
• Inside Diameter: 14mm
• Width: 12mm
• Available in knurled, u-groove and v-groove style
• Knurled is used for flux-cored wires
• U-Groove is used for aluminium and other soft wires
• V-Groove is used for solid wires

Available in the sizes below:

	Knurled	U-Groove	V-Groove
0.6/0.8mm			203114
0.8/0.9mm	36476		31545
0.8/1.0mm			203115
0.9/1.0mm			36477
0.9/1.2mm			203116
1.0/1.2mm	200866	203407	203117
1.2/1.6mm	203195	203119	203118
1.6/2.4mm	202018

• Fits the following machines:

Cigweld: Transmig 175i, 200i, 4R Feeder, Weldskil 250 Mig

Telwin: ElectroMig 330 Wave, SuperMig 380, 480, VegaMig 300, 400
