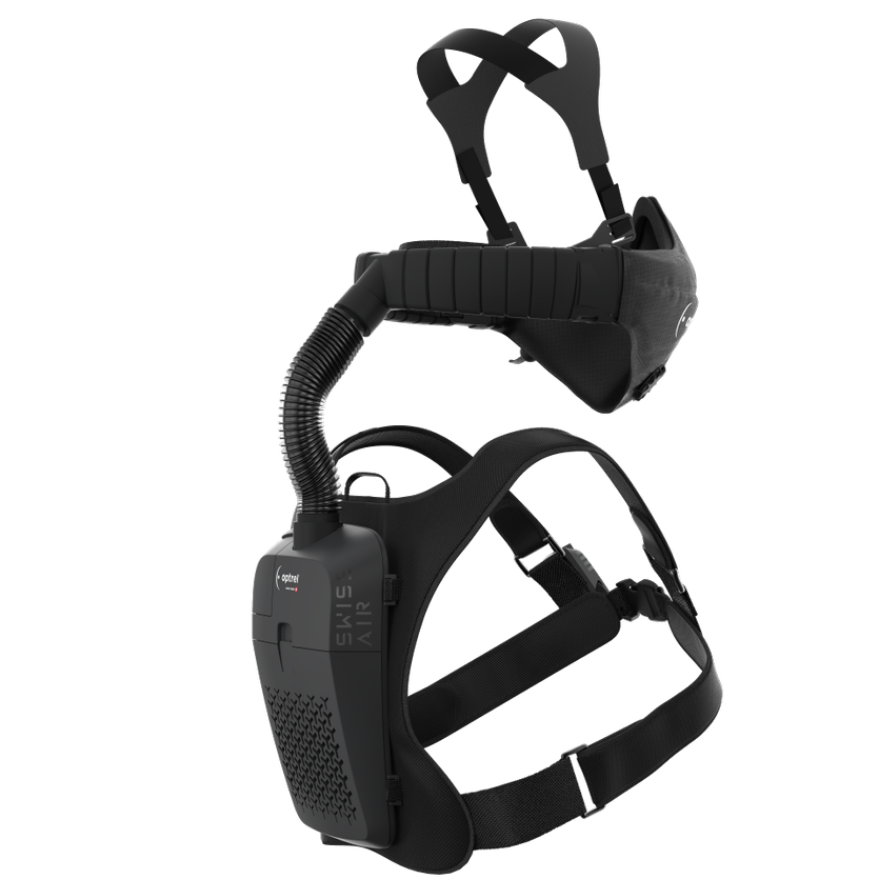

Optrel Swiss Air PAPR System

The Optrel Swiss Air PAPR System delivers advanced respiratory protection with TH3 filtration, shielding you from welding fumes, dust and airborne particles.


SKU: OT34109

Product Overview

Optrel Swiss Air PAPR System: Safety never felt so comfortable!

Introducing the optrel Swiss Air, a revolutionary TH3 PAPR (powered air-purifying respirator) system.

Many workplaces and public spaces generate pollutant emissions such as smoke, soot particles, particulate matter, or viruses that can enter the lungs through the nose, throat, and trachea, causing asthma, chronic cough, bronchitis, or other respiratory diseases, including lung cancer. With the optrel swiss air respiratory protection system you enjoy fresh air, completely independent of your activity and your other protective equipment. It lets you perform hazardous work independently and freely.

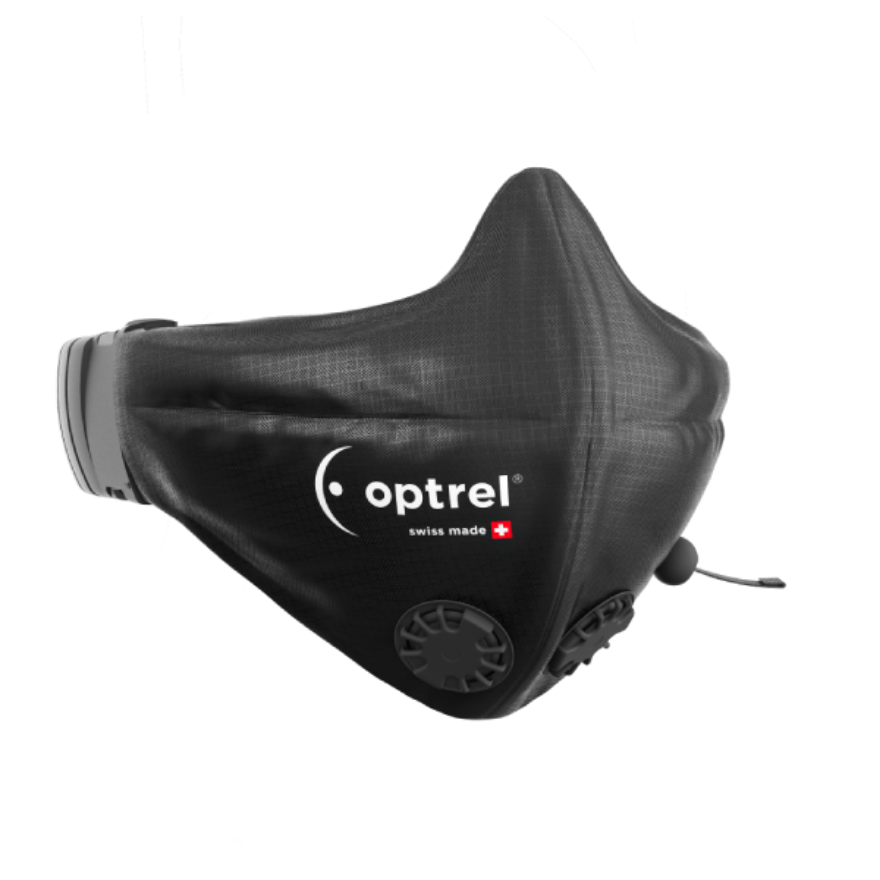

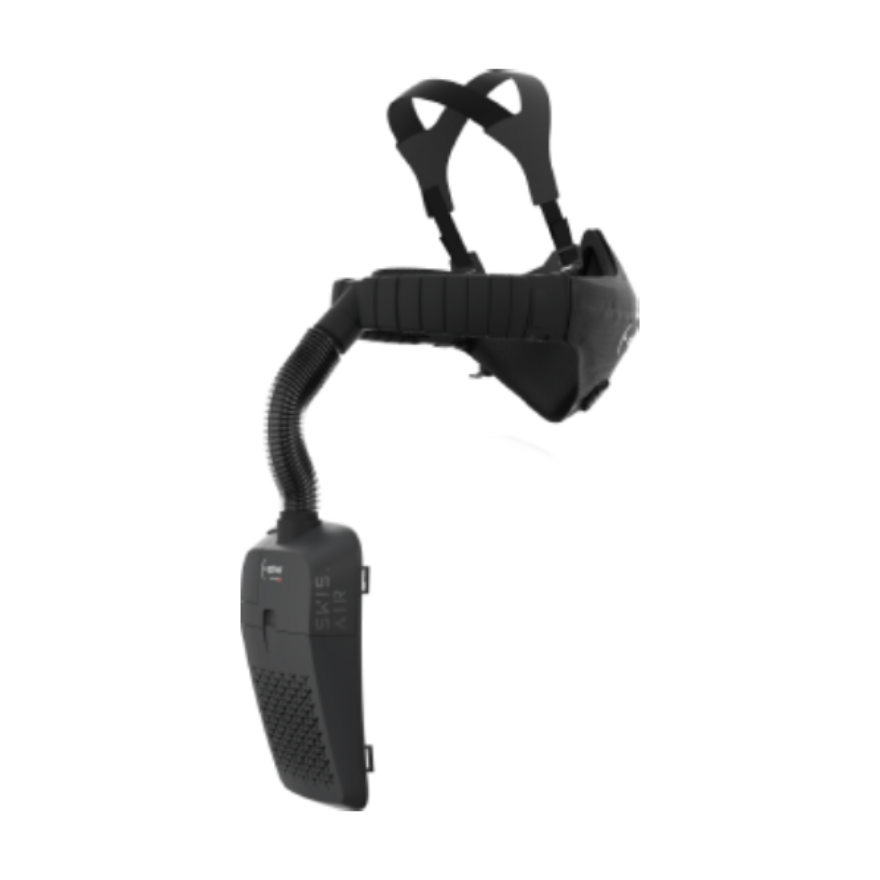

The core element of the optrel swiss air blower respiratory protection system is a ventilated half-mask that completely covers the mouth and nose area and supplies it with purified air. A breathing space is created in the mouth and nose area which, thanks to positive pressure, supports the user in breathing and eliminates tiring breathing resistance.

Made of high-tech fabric, the half-mask is designed to provide excellent individual fit thanks to a freely adjustable headband. This concept eliminates the need for time-consuming fit tests, which are common with conventional halfmasks.

Key Features

  • Flame-retardant ventilated half-mask
  • Powerful TH3 filter unit protecting you from 99.8% of all harmful particles, aerosols, vapors, smoke and even viruses
  • Positive pressure to support breathing and avoid fatigue
  • Adjustable air flow system for more comfort and avoiding dry eyes

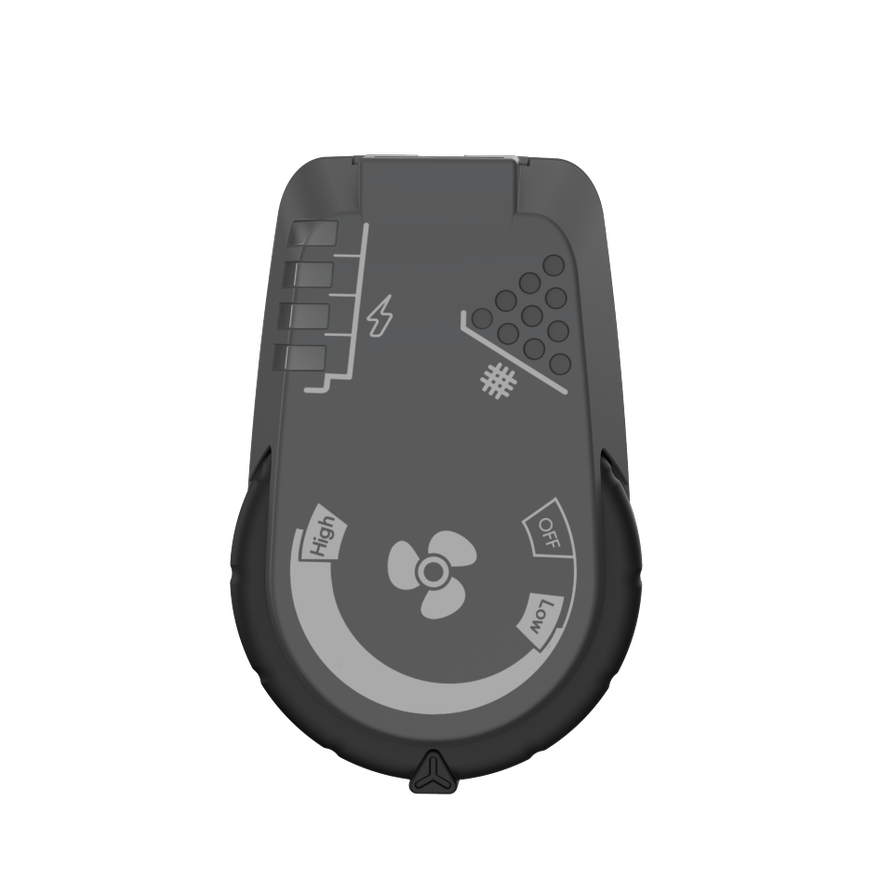

  • Central control panel for filter and battery status, airflow regulation, automatic altitude, and temperature compensation
  • Automatic airflow calibration
  • 14-hour high-performance battery, you can work uninterrupted
  • Adjustable head harness accommodating sizes from XS-XL
  • Fits any welding helmet & doesn't require a face-fit test & is beard friendly!
  • Ergonomic, lightweight design for comfortable all-day wear
  • Multi-function system able to be worn on its own or underneath PPE

Perfect for Kiwi Professionals

Whether you're welding in Auckland, grinding in Christchurch, or working on railways in Wellington, this kit has you covered. It's especially suited for:

  • Welders dealing with galvanised steel (or in any kind of welding/engineering setting with welding fumes) and other fume-producing materials
  • Engineers requiring clear vision and respiratory protection
  • Construction workers exposed to dust and debris
  • Joiners and cabinet makers working with wood dust
  • Concrete workers working with concrete dust
  • Agricultural workers handling chemicals or organic particles

Anyone working in these industries:

  • Automotive industry
  • Building industry
  • Chemical industry
  • Refrigeration industry
  • Food Industry
  • General industry
  • Heavy metal industry
  • Industrial cleaning industry

The Euroquip Advantage

  • Free Shipping nationwide on orders over $50
  • Expert advice from our team of Kiwi professionals
  • Comprehensive warranty and after-sales support
  • Easy returns policy for your peace of mind



Key Features

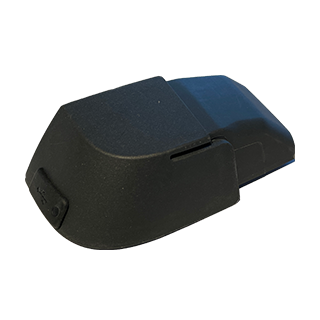

14hr Battery Pack

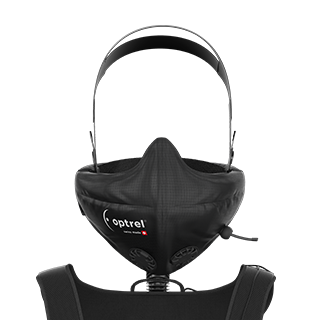

No Mask Fit Test Required

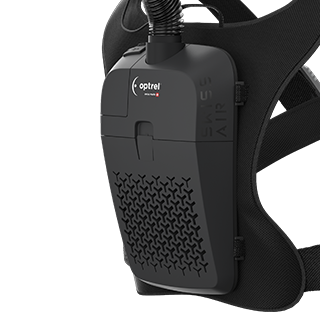

Powerful TH3 Filter Unit

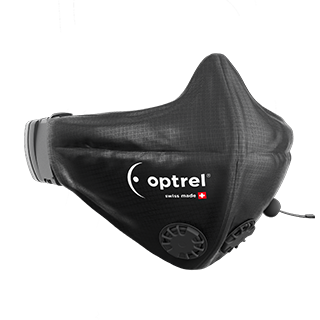

Flame-Retardant Ventilated Half-Mask

Technical Specifications

Specifications -
Protection levelProtection level TH3 (EN 12941)MaterialPA66 GF30
Dimensions250x170x50mmFilter TypeTH3P R SL Filter for TH3P System (EU) with pre-filter
Battery LifeLevel 1: 14h, Level 2: 12h, Level 3: 8hFlow ratesLevel 1: 100L/min, Level 2: 115L/min, Level 3: 130L/min
Noise Level70db (max)WeightBlower Unit: 550g, Overall system: 1200g
Hose Length180mm (elastic, up to 355mm excl. Y-hose)Battery TypeLi-Ion, Rechargable, 3.6V/6.5Ah/23.4Wh
StandardsEN 12941, Europe: TH3, Australia: P3, AS/NZS 1716, EAC TP TC 019/2011Warranty (Months)36 months* with product registration

Documents & Downloads

document
Information Sheet PDF • 3.4MB
document
Spare Parts List
document
Instruction Manual
document
Safety Data Sheet

FAQ's

What is the HEPA filter for?

How long does it take to recharge the battery?

Is the Swiss Air PAPR comfortable to wear?

How often should the filter be replaced?

How long does the battery last?

Can the Swiss Air PAPR be used with a face shield or helmet?

How does the alarm system work?

Is the Swiss Air PAPR easy to use?
