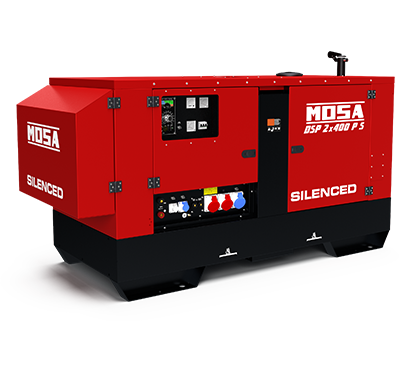

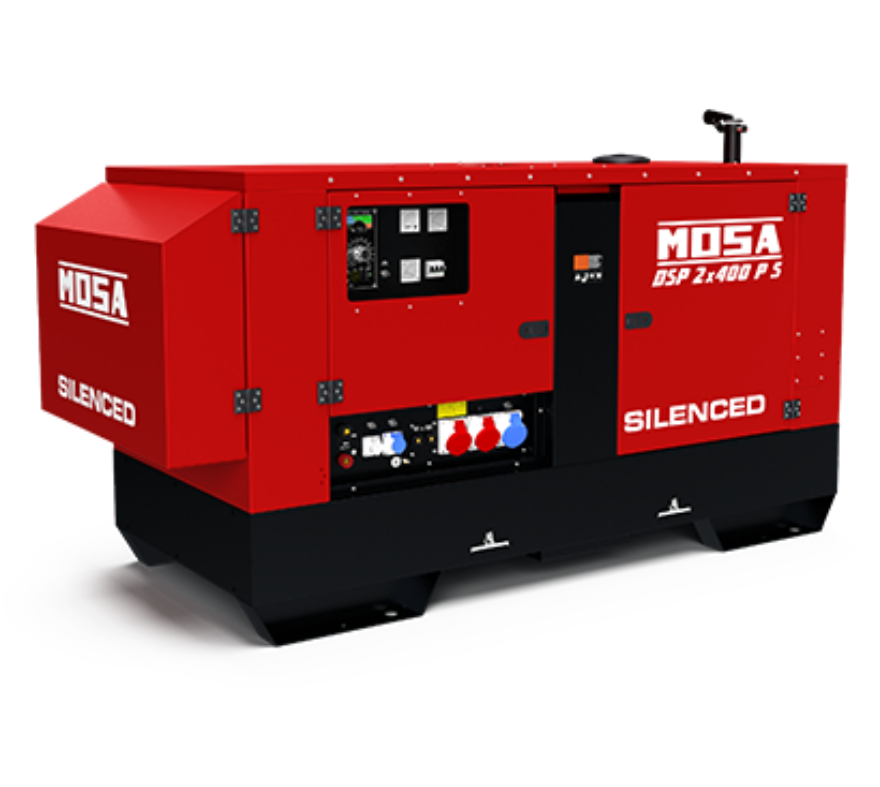

Mosa DSP400/12YSX-PL Welde/Gen

The engine-driven welder DSP 2x400 PS is a professional multi process machine with digital adjustment of the welding parameters DSP (Digital Signal Processor) and welding circuit with Chopper System (high frequency 20 kHz) capable of delivering up to 2x400A with a duty cycle of 60%.

Equipped with a Perkins series 1103 water cooled diesel engine and an asynchronous alternator, it can be used simultaneously as a welder and as a three-phase and single-phase electrical generator up to 40 kVA. Thanks to the speed of engine rotation (1500 rpm) it is suitable for continuous operation.

The DSP 2x400 PS allows the operators to work with two welding positions, each independent, with a current of 400A.

Designed to meet the requirements of professional welding in direct current, a selector switch allows the operator to choose between 5 different welding programs:

1. LIFT ARC TIG – TIG welding by controlling start-up in "Lift Arc" mode. The arc begins with a simple contact of the electrode on the workpiece and lifting the tungsten electrode from the workpiece initiates the arc without inclusion.
2. MMA STICK (3 PROGRAMS) – Specific for MMA ELECTRODE (CC) welding, they offer three different levels of arc force, with increasing short-circuit currents including cellulosic.
3. MIG MAG – Dedicated to SOLID WIRE OR FLUX-CORED WELDING, providing employing a constant voltage (CV) welding process with optional MOSA WF4 Wire Feed Unit.
