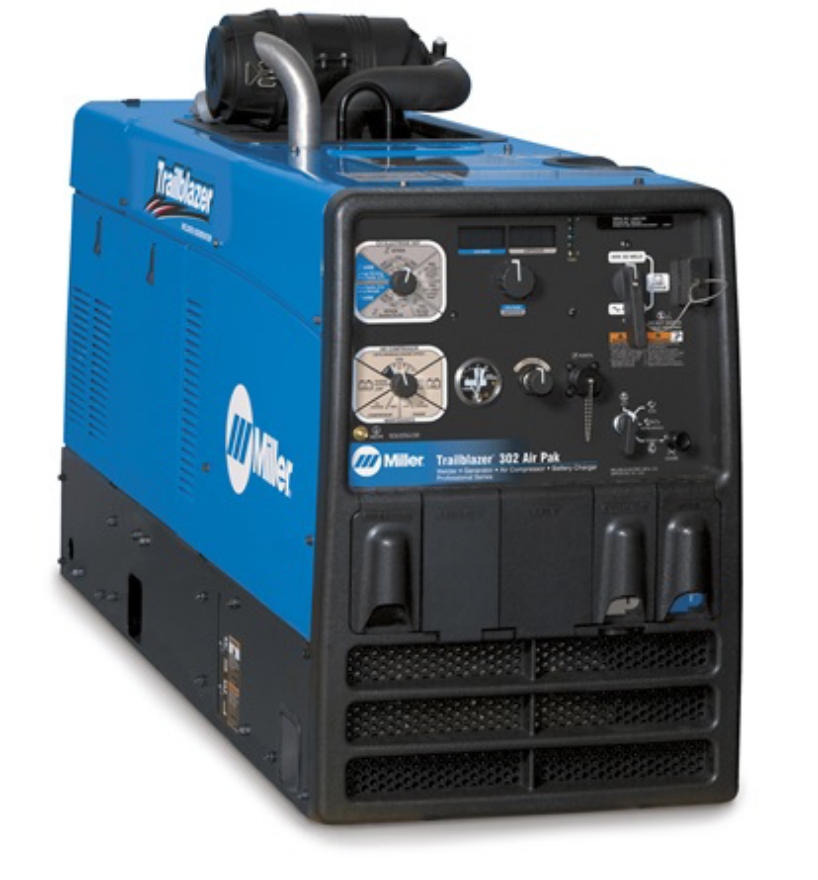

Miller Trailblazer 302 Air Pak Engine Driven Welder

Miller Trailblazer 302 Air Pak Engine Driven Welder

The Miller Trailblazer 302 Air Pak is the all-in-one tool that delivers multiprocess output for welding, plasma cutting, gouging, air tools and 12/24V battery charger/crank assist.

Key Features

• Kohler CH750 engine
• Four tools in one - Engine Driven Welder, AC Generator (13,000W), Air Compressor (31CFM rotary screw) & 12/24V Battery Charger/Jump Starter
• Professional welding performance in all processes with the best welding arc in its class
• Generator output: 13,000W peak and 11,000W continuous
• Four preset DIG settings (stick) to make the arc softer or stiffer depending on electrode and operator preference
• Adaptive hot start (stick) ensures easy arc starts regardless of operator technique
• Excellent MIG/FCAW arc performance to run smoothly with sold and flux-cored wires
• Lift Arc and TIG with Auto-Crater and Auto-Stop
• Processes: Stick (SMAW), MIG (GMAW), Flux-Cored (FCAW), AC/DC TIG (GTAW), Battery charge/crank assist, Air carbon arc (Rated 3/16 inch carbons, capable 1/4 inch carbons)
• Ouput range: DC Stick: 25-300 A DC TIG: 10-300 A AC TIG/Stick: 10-225 A MIG/FCAW: 13-35 V, 350 A
• The compressor delivers 31 CFM at 80-160PSI of air at 100% duty cycle while rated at 104° F
• Compressor produces air when you need it, no more downtime waiting for an external tank to fill
• Airflow can be selected depending on tool requirements
• Perfect option for fabrication, maintenance, repair, structural steel work and sheet metal

• Weight: 350kg

• Dimensions: 838mm (876mm to top of exhaust) x 508mm x 1514mm (HxWxD)

• 3 year warranty
