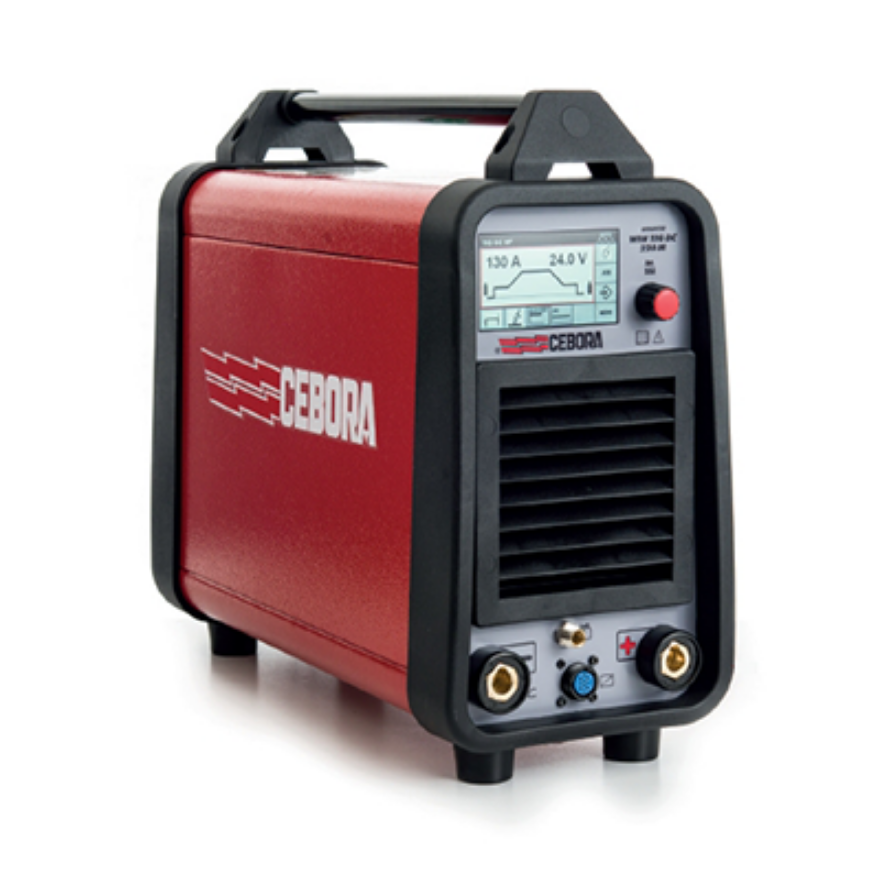

Cebora Win Tig DC 220M HF Tig Welder

Cebora Win Tig DC 220M HF Tig Welder - Power Source Only

Key Features

• 230V single phase inverter power source suitable for Tig and MMA welding
• 220A high-frequency Tig welder
• User-friendly LCD Display
• EVO LIFT function allows to place the electrode in the exact position avoiding the piece oxidation and the heat control
• EVO START function in order to optimize edge junction
• APC TIG (Active Power Control) welding process  guarantees a deeper penetration, a more stable arch, avoids the electrodes to get stuck to the piece, allows adapting the arc to the welding conditions only with the torch movement
• Intermittence Pause Time Welding function which makes welding clearer with a time regulation in a second cents range
• Pulse function selectable up to 2,5 kHz
• Extra Pulse (XP) function: a very high frequency pulse that works on small thicknesses where the transferred heat must be minimal
• Possibility to match a low pulse frequency to the XP process in order to improve the penetration and the welding speed on small-medium thicknesses
• JOB function which makes it possible to save up to 9 welding programs
• Wiz function helps the operator to take quick decisions based on the desired welding process
• The power source can also be powered by motor-driven generators of appropriate power (10 kVA)
• Set up for a cooling unit
• Common applications include light metal fabrication, handcrafting, food industry, routine maintenance, agricultural industry and construction of tanks
• 16Kg
• Dimensions: 207x500x411mm (WxLxH)
