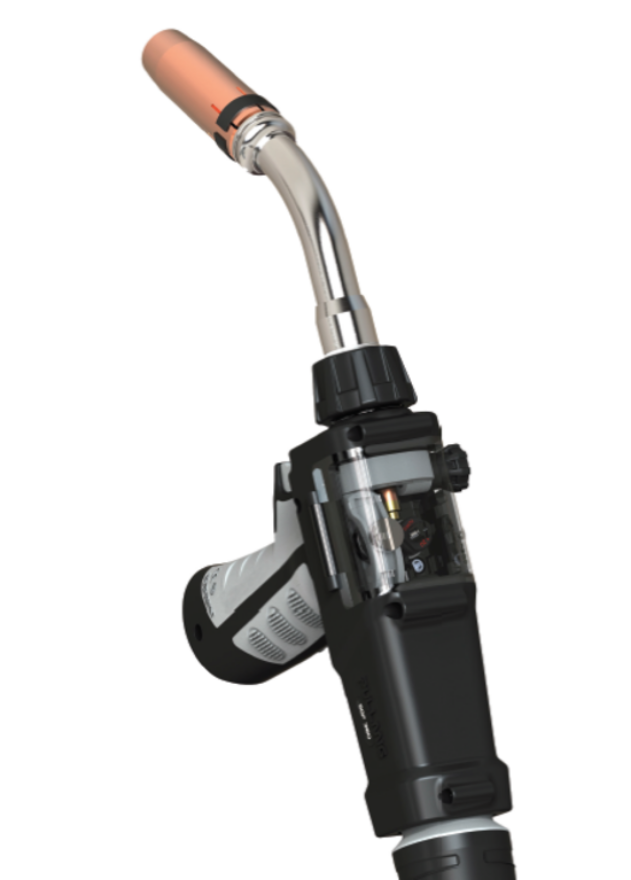

Binzel Style Push Pull Torch 8M

The BZL Push Pull system from Uniarc is available in both air cooled and water cooled versions, and is the ultimate gun for serious aluminium and long reach welding applications.
This torch can be fitted to most MIG machines on the market today.

Talk to us about your application today and we will provide a fixed cost to replace your existing push pull torch or retrofit to your existing welders.

PP360 Torches
• Air Cooled
• 300A Rated (CO2)
• 270A Rated (Mixed Gas)
• 60% Duty Cycle
• 0.8 – 1.2mm Wire
• 24V and 42V Motor

PP401Torches
• Water Cooled
• 400A Rated (CO2)
• 350A Rated (Mixed Gas)
• 60% Duty Cycle
• 1.0 – 1.6mm Wire
• 24V and 42V Motor
• 1.2L/min Water Flow (min)
• 2.0 Bar Water Inlet Pressure (min)
• 1600W Water Cooling Requirements (min)
• 5.0 Bar Water Inlet Pressure (max)
• 50o C Water Inlet Temperature
