Air Command WS7.5CI 7.5HP Compressor

A powerhouse 7.5HP, 300L three-phase air compressor with massive output, built for running multiple tools at once with cool, reliable performance.

SKU: 41798

Product Overview

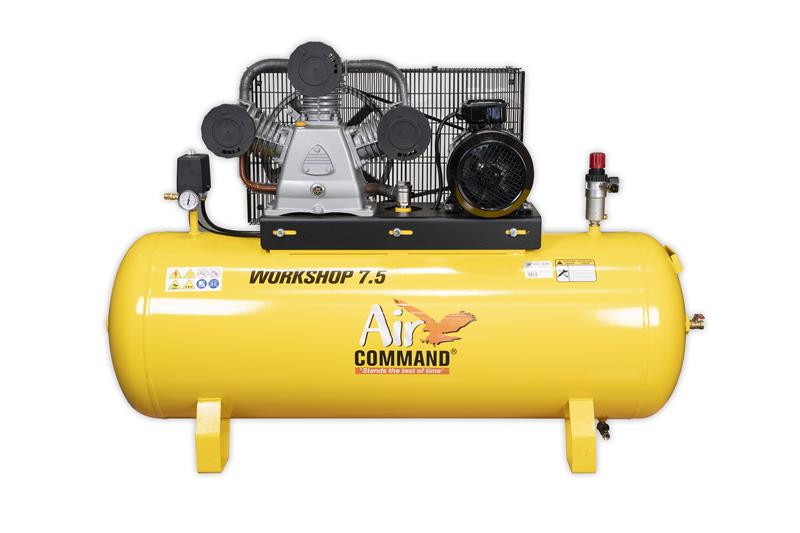

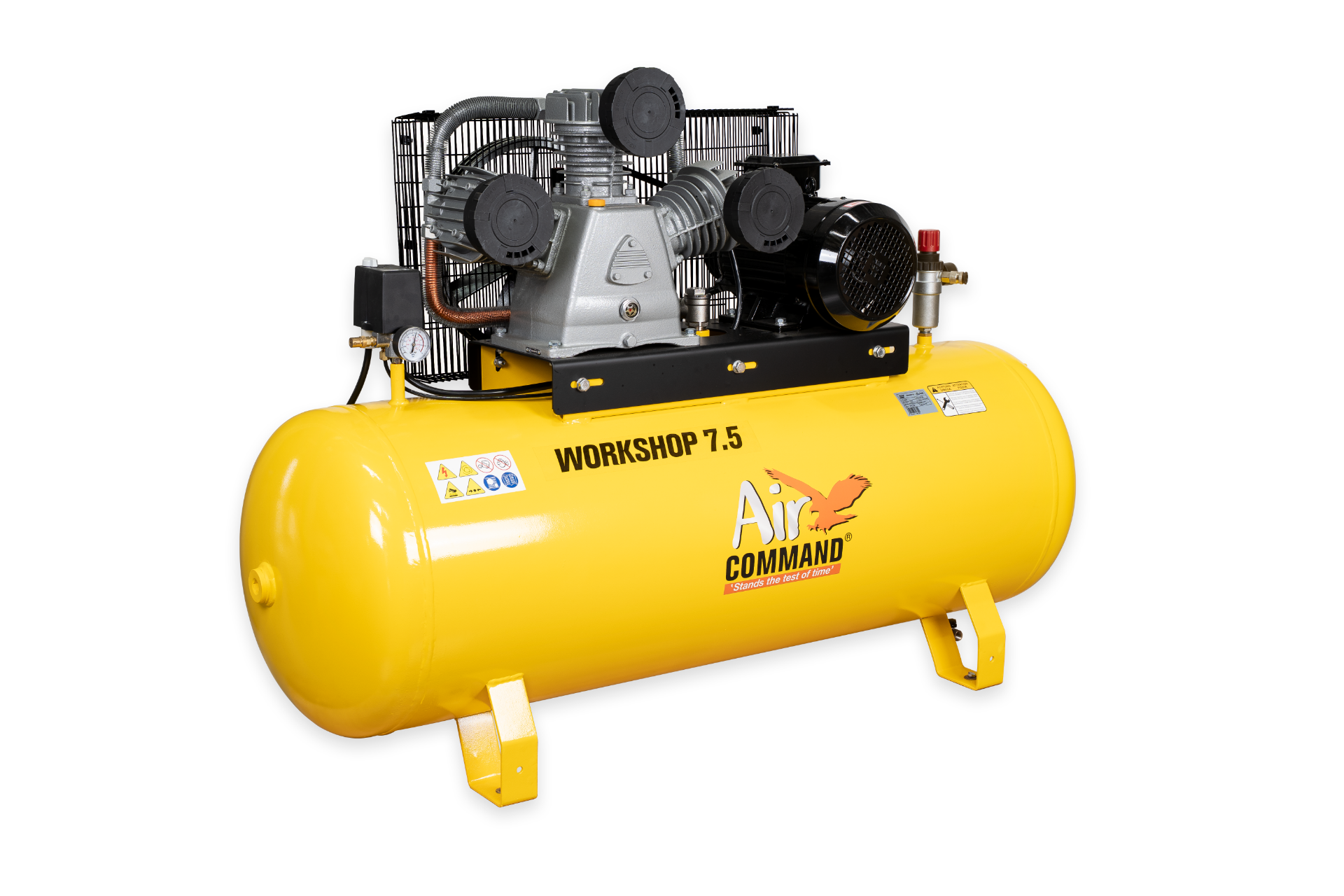

Air Command WS7.5CI 7.5HP Compressor

The WS7.5CI 7.5HP 300L Three-Phase Workshop Air Compressor (400V) is designed for serious industrial and workshop use where maximum air delivery and durability are critical. With its massive 7.5HP motor and slow-revving 3-cylinder pump, this compressor delivers exceptional airflow while running cooler and lasting longer.

Its large 300L tank provides a generous reserve for extended operation, reducing downtime from refills. Complete with a built-in filter/regulator, quick-connectors, and a ½" outlet ball valve, it offers versatile air access to keep your tools running at peak performance.

Key Features

Maximum Airflow Performance
7.5HP 3-phase motor with a huge 995L/min 35cfm pump displacement delivers outstanding air power for the most demanding applications.

Exceptional Output at Working Pressure
900L/min 34cfm FAD at 90 PSI provides reliable, consistent performance for multiple air tools running at once.

Massive 300L Air Tank
Huge reserve capacity for long jobs without stopping for refills.

Slow-Revving, Heavy-Duty Pump
3-cylinder, cast iron, single-stage pump runs at just 950 rpm for cooler operation, longer life, and increased reliability.

Reliable & Safe
German made Condor MDR3 pressure switch for overload protection and reliable shut-off, plus CE-approved safety across all components.

Versatile Air Access
Built-in filter/regulator with quick-connectors and ½" outlet ball valve for flexible and fast air supply connections.

Smooth & Stable Operation
Separate pump and motor mounting plate with rubber foot kit o reduce vibration and simplify maintenance.

Quiet for Its Size
80 dB(A) sound level keeps workshop noise manageable.

Peace of Mind
Covered by a 24-month commercial warranty and Air Commands industry leading parts & service support.

Key Features

5.5kW / 7.5HP 3 Phase 400V IE2 Motor
300L Tank Capacity
995L/min 35cfm Pump Displacement
10bar / 145 PSI Max Working Pressure

Technical Specifications

Specifications -
Dimensions(L x W x H)160 x 50 x 107cmPump TypeV' 3 Cylinder Cast Iron Single Stage
Receiver Size300LPump Displacement995L/min 35cfm
Pump Speed (RPM)950 RPMSound Pressure Level80dBA
Weight229kgPower Supply400V 3 Phase 16A
Working Pressure10bar / 145PSIDuty Cycle60%
Motor5.5kW / 7.5HP 3 Phase 400V IE2FAD @ Working Pressure900L/min 34cfm

Documents & Downloads

document
Information Sheet PDF • 952KB
document
Spare Parts List
document
Instruction Manual PDF • 6.2MB
document
Safety Data Sheet

FAQ's

What type of workshop is the WS7.5CI best suited for?

Can the WS7.5CI run multiple tools at the same time?

What kind of tools can I run with this compressor?

How powerful is the WS7.5CI?

What makes the 3-cylinder pump special?

Is the WS7.5CI suitable for continuous operation?
